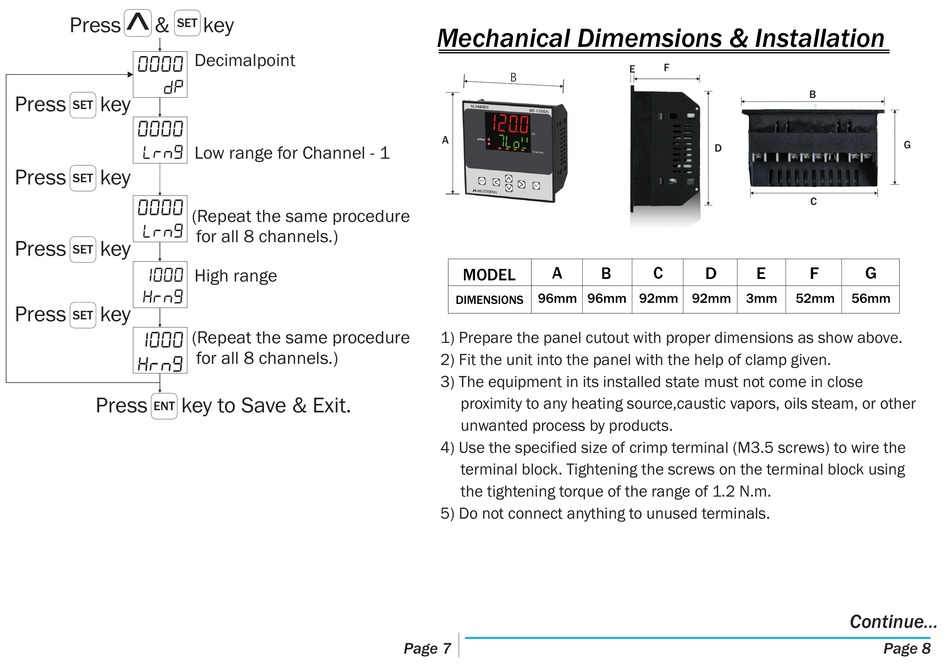

MULTISPAN MS-1208A User Manual page 4

Press &
SET
0000
DP
Press key
SET
0000
LRNG
Press key
SET
0000
(Repeat the same procedure
LRNG
Press key
SET
1000
HRNG
Press key
SET
1000 (Repeat the same procedure
HRNG
Press key to Save & Exit.
ENT
key
Decimalpoint
Low range for Channel - 1
for all 8 channels.)
High range
for all 8 channels.)
Mechanical Dimemsions & Installation
B
A
A
MODEL
96mm 96mm 92mm 92mm
DIMENSIONS
1) Prepare the panel cutout with proper dimensions as show above.
2) Fit the unit into the panel with the help of clamp given.
3) The equipment in its installed state must not come in close
proximity to any heating source,caustic vapors, oils steam, or other
unwanted process by products.
4) Use the specified size of crimp terminal (M3.5 screws) to wire the
terminal block. Tightening the screws on the terminal block using
the tightening torque of the range of 1.2 N.m.
5) Do not connect anything to unused terminals.
Page 7
F
E
D
B C D E
3mm
B
G
C
F G
52mm 56mm
Continue...
Page 8
