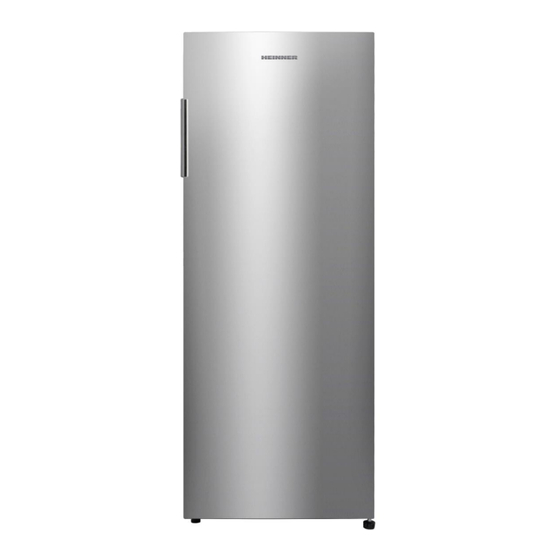

- Page 1 FREEZER Model: HFF-N165F+ HFF-N165SF+ • Freezer • Energy class: F • Total capacity: 165 L...
- Page 2 Thank you for choosing this product! INTRODUCTION Please read the instructions carefully and keep the manual for future information. This manual is designed to give all necessary instructions concerning installation, use and maintenance of the unit. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and use.
-
Page 3: Safety Information
III. SAFETY INFORMATION For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. - Page 4 WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING! Do not damage the refrigerant circuit.
- Page 5 Electric safety The power cord must not be lengthened. Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire. Make sure that you can access the main plug of the appliance.
-
Page 6: Daily Use
IV. DAILY USE Do not store flammable gass or liquids in the appliance. There is a risk of an explosion. Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.). When unplugging always pull the plug from the mains socket, do not pull on the cable. -
Page 7: Product Description
PRODUCT DESCRIPTION To get the best energy efficiency of this product, please place all shelves, drawers and baskets on their original position as the illustration above Product sketch 1. Control panel 2. Freezing compartment with flap 3. Middle drawer 4. - Page 8 Using your appliance Accessories 1) Freezer drawer For storing frozen food Ice cube tray For making ice and storing ice-cubes Freezer food compartment 2) For freezing fresh food and storing frozen and deep-frozen food for long periods of time.
- Page 9 Normally we advise you select setting of "MID", if you want the temperature higher or lower please turn the knob to Warmer or colder setting accordingly. When you turn the knob to colder which can lead to the more energy efficiency.
- Page 10 The packets to be frozen should be placed in the drawer in contact with the drawer surface as far as possible and spaced apart to allow cold air to circulate between them. They should not touch existing packets. If there is enough room, transfer the food you have frozen to the baskets or drawers to allow you to freeze a further load in the top drawer.
- Page 11 Order Compartments Target storage Appropriate food TYPE temp.[℃] Eggs, cooked food, packaged food, fruits and +2≤+6 Fridge vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing. Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (***)*-Freez ≤-18...
-
Page 12: Installation
VI. INSTALLATION Warning! Food needs to be packed in bags before putting into the appliance, and liquids need to be packed in bottles or capped containers to avoid the problem that the product design structure is not easy to clean. - Page 13 Climate class Ambient temperature +10 °C to +32 °C +16 °C to +32 °C +16 °C to +38 °C +16 °C to +43 °C Stand your appliance in a dry place to avoid moisture damage. Keep the appliance out of direct sunlight, rain or frost. Stand the appliance away from heat sources such as stoves, fires or heaters.
- Page 14 Note: If required you may lay the appliance on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the backboard of the appliance. To reverse the door, the following steps are generally recommended.
- Page 15 4. Remove the door from the lower hinge. NOTE: When removing the door, watch for washer(s) between the lower hinge and the bottom of the lower door that may stick to the door. Do not lose. 5. Place it on a smooth surface with its panel upwards. Loose screw 2 and part 1, then install them to the left side and tighten securely.
- Page 16 7. Replace the lower hinge part to the left side and fixing it with the special flange self-tapping screws. Replace the adjustable bottom feet parts to another side and fixing 8. Transfer the door to the properly position, adjust the lower hinge part, make the hinge axis into the lower hole of the door.
- Page 17 10. Install the screw hole on the top right corner of the appliance. Install the upper hinge cover (which is in the plastic bag) on the left corner. Pull the other upper hinge cover into the plastic bag. 11. Move the handle from the left side of door to the right side.
-
Page 18: Helpful Hints And Tips
VII. HELPFUL HINTS AND TIPS Noises during operation Everytime the compressor starts or stops, a clinker can be heard. During compressor operation, you may hear a slight buzz. When the refrigerant flows through the pipes, it is possible to hear noises that give the feeling of flowing or spraying liquids. -
Page 19: Cleaning And Maintenance
VIII. CLEANING AND MAINTENANCE For hygienic reasons, the appliance interior, including interior accessories, should be cleaned regularly. The appliance should be cleaned and maintained at least every two months. WARNING! Danger of electrical shock! The appliance should not be connected to the main power supply during cleaning. - Page 20 IX. DEFROSTING Defrosting in frozen food storage compartment • Defrosting in the freezer chamber is operated manually. Before defrosting, take the foot out. • Tale the ice tray and drawers out or put them into the fresh food compartment temporarily.
-
Page 21: Troubleshooting
XI. TROUBLESHOOTING WARNING! Before troubleshooting, disconnect the power supply. Only a qualified electrician or other personnel must carry out the troubleshooting that is not in the manual. Important! Repairs to the appliance may only be performed by competent service engineers. - Page 22 The compressor dose not start The compressor starts after a period of immediately after changing This is normal, no error has time. the temperature setting. occurred. Water on the floor or storage Water drain hole is blocked. Refer the “Cleaning and Care” section.
- Page 23 CUSTOMER CARE AND SERVICE Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model and Serial Number. The information can be found on the rating plate. Subject to change without notice.
- Page 24 Environment friendly disposal You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipment’s to an appropriate waste disposal center. HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.
