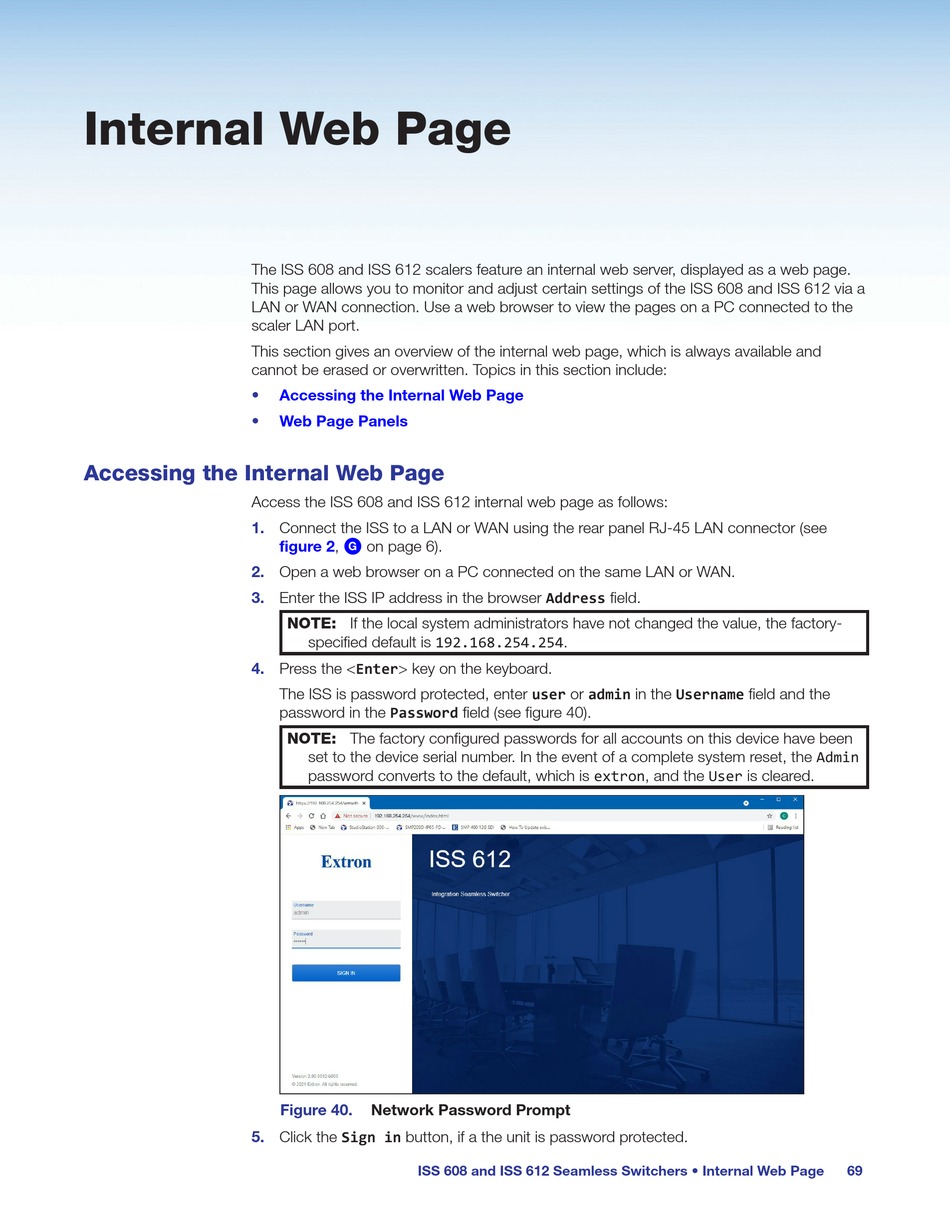

Internal Web Page

The ISS 608 and ISS 612 scalers feature an internal web server, displayed as a web page.
This page allows you to monitor and adjust certain settings of the ISS 608 and ISS 612 via a
LAN or WAN connection. Use a web browser to view the pages on a PC connected to the
scaler LAN port.
This section gives an overview of the internal web page, which is always available and
cannot be erased or overwritten. Topics in this section include:
•
•

Accessing the Internal Web Page

Access the ISS 608 and ISS 612 internal web page as follows:
1.
2.
3.
4.
5.
Accessing the Internal Web Page
Web Page Panels
Connect the ISS to a LAN or WAN using the rear panel RJ-45 LAN connector (see
figure 2,
on page 6).
G
Open a web browser on a PC connected on the same LAN or WAN.
Enter the ISS IP address in the browser Address field.
NOTE: If the local system administrators have not changed the value, the factory-
specified default is 192.168.254.254.
Press the <Enter> key on the keyboard.
The ISS is password protected, enter user or admin in the Username field and the
password in the Password field (see figure 40).
NOTE: The factory configured passwords for all accounts on this device have been
set to the device serial number. In the event of a complete system reset, the Admin
password converts to the default, which is extron, and the User is cleared.
Figure 40. Network Password Prompt
Click the Sign in button, if a the unit is password protected.
ISS 608 and ISS 612 Seamless Switchers • Internal Web Page 69
