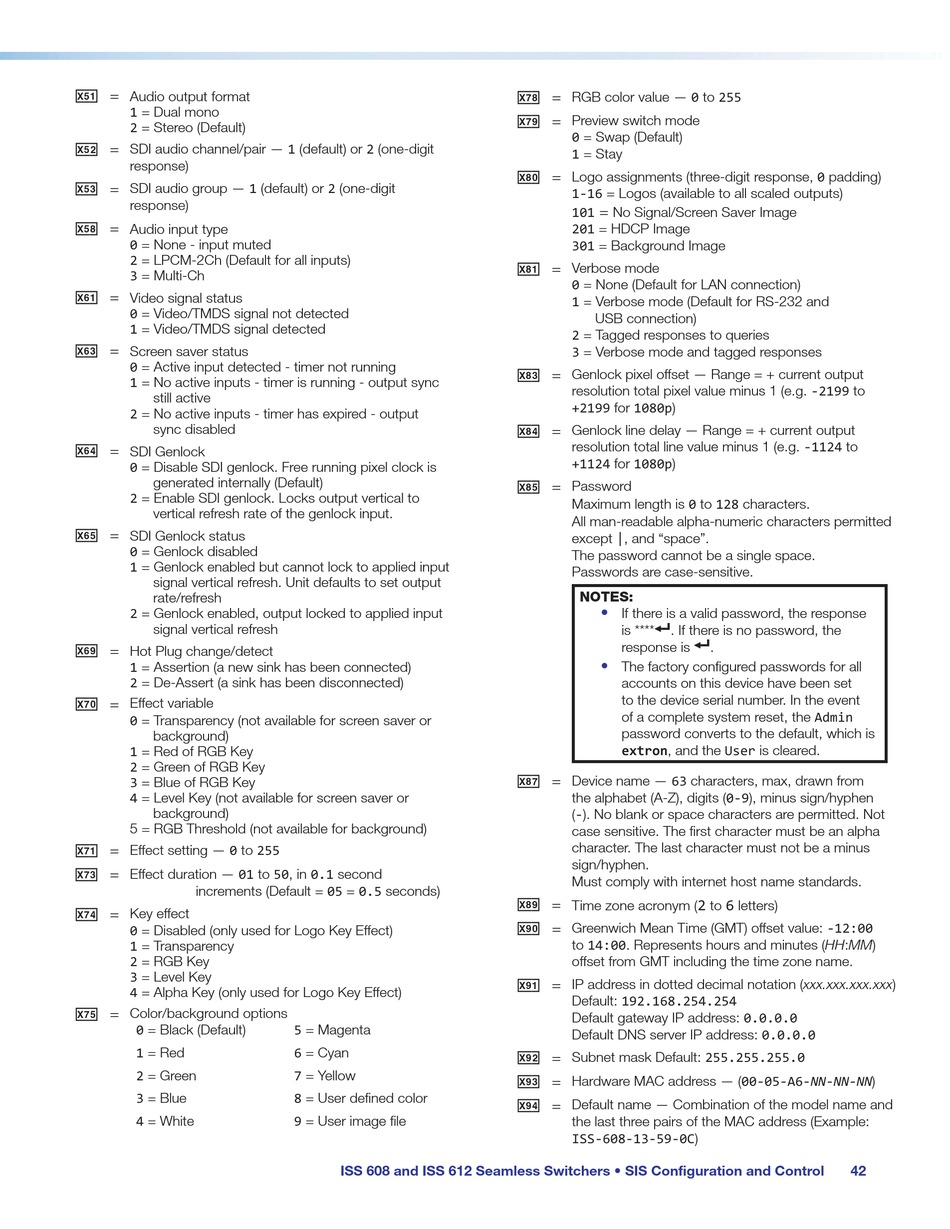

X5! =
Audio output format
1 = Dual mono
2 = Stereo (Default)
X5@ = SDI audio channel/pair — 1 (default) or 2 (one-digit
response)
X5# =
SDI audio group — 1 (default) or 2 (one-digit
response)
X5* =
Audio input type
0 = None - input muted
2 = LPCM-2Ch (Default for all inputs)
3 = Multi-Ch
X6! =
Video signal status
0 = Video/TMDS signal not detected
1 = Video/TMDS signal detected
X6# =
Screen saver status
0 = Active input detected - timer not running
1 = No active inputs - timer is running - output sync
still active
2 = No active inputs - timer has expired - output
sync disabled
X6$ =
SDI Genlock
0 = Disable SDI genlock. Free running pixel clock is
generated internally (Default)
2 = Enable SDI genlock. Locks output vertical to
vertical refresh rate of the genlock input.
X6% =
SDI Genlock status
0 = Genlock disabled
1 = Genlock enabled but cannot lock to applied input
signal vertical refresh. Unit defaults to set output
rate/refresh
2 = Genlock enabled, output locked to applied input
signal vertical refresh
X6( =
Hot Plug change/detect
1 = Assertion (a new sink has been connected)
2 = De-Assert (a sink has been disconnected)
X7) = Effect variable
0 = Transparency (not available for screen saver or
background)
1 = Red of RGB Key
2 = Green of RGB Key
3 = Blue of RGB Key
4 = Level Key (not available for screen saver or
background)
5 = RGB Threshold (not available for background)
X7! =
Effect setting — 0 to 255
X7# =
Effect duration — 01 to 50, in 0.1 second
increments (Default = 05 = 0.5 seconds)
X7$ =
Key effect
0 = Disabled (only used for Logo Key Effect)
1 = Transparency
2 = RGB Key
3 = Level Key
4 = Alpha Key (only used for Logo Key Effect)
X7% =
Color/background options
0 = Black (Default)
1 = Red
2 = Green
3 = Blue
4 = White
5 = Magenta
6 = Cyan
7 = Yellow
8 = User defined color
9 = User image file
ISS 608 and ISS 612 Seamless Switchers • SIS Configuration and Control
X7* = RGB color value — 0 to 255
X7( =
Preview switch mode
0 = Swap (Default)
1 = Stay
X8) =
Logo assignments (three-digit response, 0 padding)
1-16 = Logos (available to all scaled outputs)
=
101 No Signal/Screen Saver Image
201 = HDCP Image
301 = Background Image
X8! =
Verbose mode
0 = None (Default for LAN connection)
1 = Verbose mode (Default for RS-232 and
USB connection)
2 = Tagged responses to queries
3 = Verbose mode and tagged responses
X8# =
Genlock pixel offset — Range = + current output
resolution total pixel value minus 1 (e.g. -2199 to
+2199 for 1080p)
X8$ =
Genlock line delay — Range = + current output
resolution total line value minus 1 (e.g. -1124 to
+1124 for 1080p)
X8% =
Password
Maximum length is 0 to 128 characters.
All man-readable alpha-numeric characters permitted
except |, and "space".
The password cannot be a single space.
Passwords are case-sensitive.
NOTES:
•
If there is a valid password, the response
]
is **** . If there is no password, the
]
response is
•
The factory configured passwords for all
accounts on this device have been set
to the device serial number. In the event
of a complete system reset, the Admin
password converts to the default, which is
extron, and the User is cleared.
X8& = Device name — 63 characters, max, drawn from
the alphabet (A-Z), digits (0-9), minus sign/hyphen
(-). No blank or space characters are permitted. Not
case sensitive. The first character must be an alpha
character. The last character must not be a minus
sign/hyphen.
Must comply with internet host name standards.
X8( =
Time zone acronym (
X9) =
Greenwich Mean Time (GMT) offset value: -12:00
to 14:00. Represents hours and minutes (HH:MM)
offset from GMT including the time zone name.
X9! =
IP address in dotted decimal notation (xxx.xxx.xxx.xxx)
Default: 192.168.254.254
Default gateway IP address: 0.0.0.0
Default DNS server IP address: 0.0.0.0
X9@ =
Subnet mask Default: 255.255.255.0
X9# =
Hardware MAC address — (00-05-A6-NN-NN-NN)
X9$ =
Default name — Combination of the model name and
the last three pairs of the MAC address (Example:
ISS-608-13-59-0C)
.
2 6
to letters)
