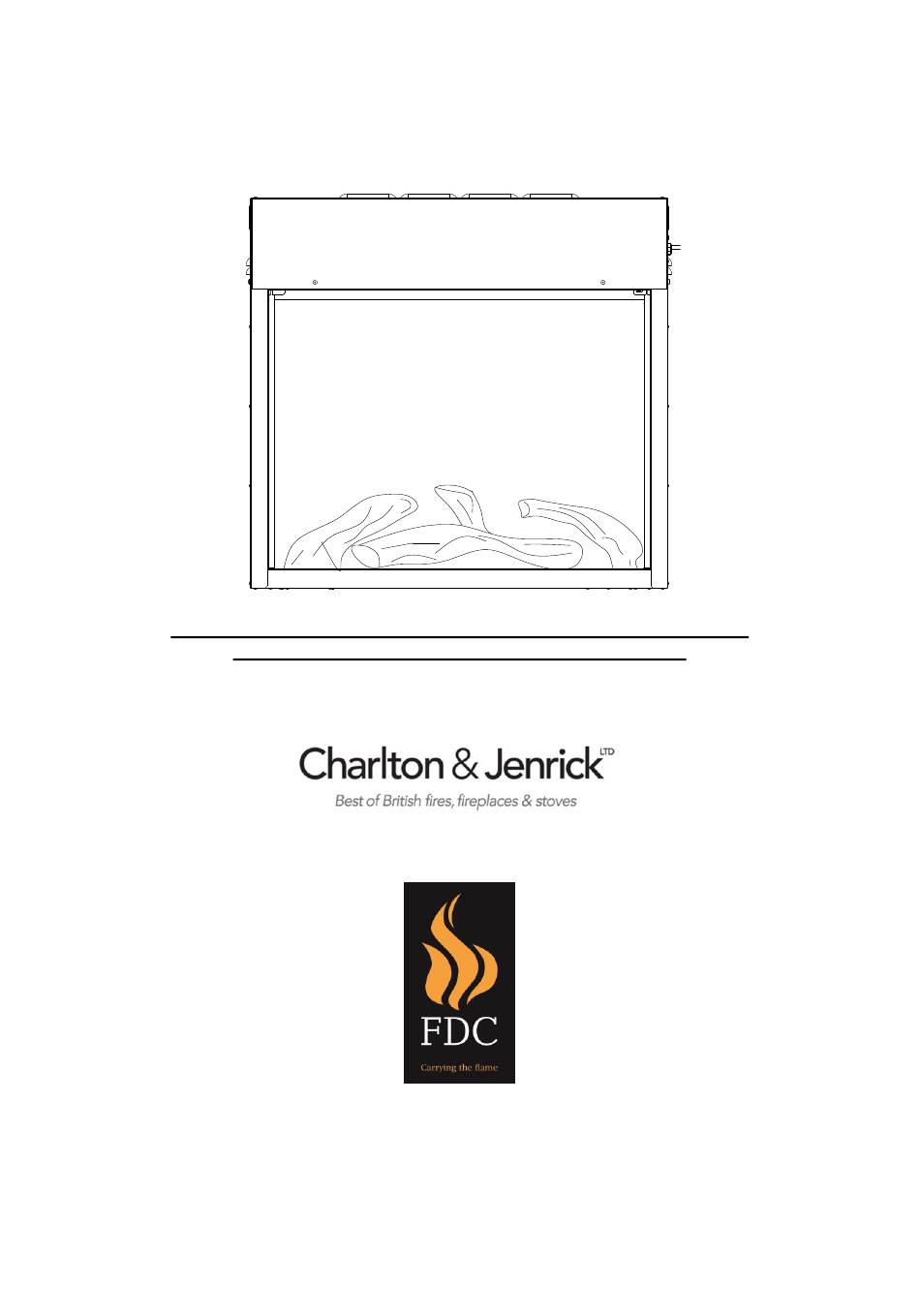

Operating Manual
for Integral Electrical Appliance
Models: Solstice and Equinox
Please read the instructions carefully before installation or use
of this electric fire and retain for future reference.
This product is made by
Supplied under licence to
FDC (UK) Limited
Unit C4, Dinton Business Park
Catherine Ford Road
Dinton
Salisbury
SP3 5HZ
01722 716161
1
info@fdcuk.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Charlton & Jenrick Solstice
Summary of Contents for Charlton & Jenrick Solstice
- Page 1 Operating Manual for Integral Electrical Appliance Models: Solstice and Equinox Please read the instructions carefully before installation or use of this electric fire and retain for future reference. This product is made by Supplied under licence to FDC (UK) Limited...
- Page 2 IMPORTANT INFORMATION This appliance must not be located immediately below a socket-outlet. This appliance must be earthed. If in any doubt consult a suitable competent person. In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility company.
- Page 3 APPLIANCE DATA Supply Voltage AC 220-240V 50Hz Output 1000W / 2000W DIMENSIONS SOLSTICE units: mm EQUINOX units: mm PARTS LIST Part Quantity Appliance Fuel Bed Remote Control AAA Battery Instruction Manual Fixing Bracket Screw ST4*12 Washer 4.0...
- Page 4 4. Fix the appliance in the opening using the brackets supplied and level with shims if required. 5. The chimney breast may be clad in combustible or non-combustible materials. MODEL SOLSTICE EQUINOX Figure 1 General installation considerations and guidance...
- Page 5 Position the logs as you wish and if you choose to use the glass pebbles place them randomly around and between the logs. Examples are shown below; Typical Fuel bed arrangement for Solstice Typical Fuel bed arrangement for Equinox...
- Page 6 OPERATION This appliance can be operated by both remote control and manual buttons. Once the unit has been properly connected to an earthed electrical outlet turn on the main switch. A beep should be heard when the power is first applied. NOTES: ...
- Page 7 ● Operating by Remote Handset Multifunction Infrared Remote Handset Make sure the batteries are installed properly in the remote control. The effective range of the remote control is up to 4 meters or 13 feet. ICON TITLE FUNCTION Pressing once turns the appliance and POWER flame effect on.
- Page 8 MAINTENANCE Warning: Before any maintenance and/or cleaning of the exterior of the fireplace, disconnect the unit from the power supply and leave until cool. Remote Handset Battery Replacement Replace with two AAA batteries. Make sure the batteries are installed correctly in the remote control.
