  • Page 1 ENCORE LP18IP User Manual...
  • Page 2 ©2023 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    C O N T E N T S Introduction Limited Warranty (USA Only) Warranty Registration | Features IP65 Rated Safety Guidelines Overview Installation Remote Device Management (RDM) System Menu Dim Modes DMX Setup DMX Addressing DMX Traits Color Macro Chart Daisy Chain Power Linking | Cleaning and Maintenance Specifications Accessory and Ordering Information...

  • Page 4: Introduction

    Voice: 800-322-6337 | Fax: 323-582-2941 | support@adj.com ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET Voice: +31 45 546 85 60 | Fax: +31 45 546 85 96 | support@adj.eu ADJ PRODUCTS LLC USA 6122 S. Eastern Ave. Los Angeles, CA. 90040 323-582-2650 | Fax 323-532-2941 | www.adj.com...

  • Page 5: Limited Warranty (Usa Only)

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.

  • Page 6: Warranty Registration | Features

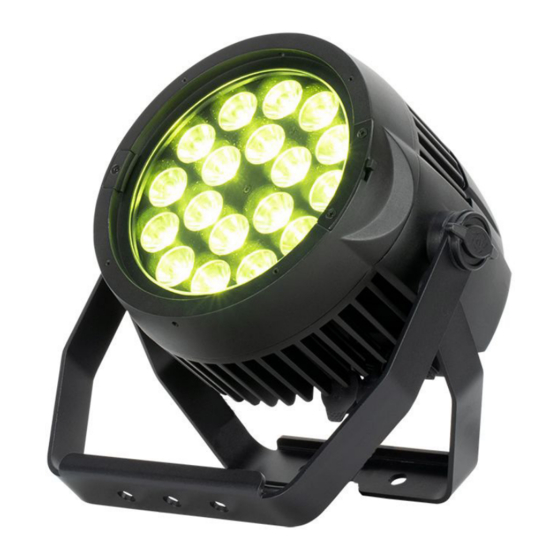

    FEATURES The ADJ Encore LP18IP is a versatile, heavy duty Par with eighteen (18) 20W Quad LEDs (4-IN-1: Red, Green, Blue & Lime), a 10-degree beam angle, and all metal construction. It is IP65 outdoor rated to protect against, rain, snow and dust for temporary outdoor events.

  • Page 7: Ip65 Rated

    10,000-hours. This is a prophylactic measure intended to keep the unit running as cool as possible, insuring proper function of all internal components. A complete service breakdown is available, please contact service@adj.com for any needed parts or manuals.

  • Page 8: Safety Guidelines

    THIS FIXTURE IS COMPOSED OF SOPHISTICATED ELECTRONIC COMPONENTS. TO GUARANTEE SMOOTH OPERATION, IT IS IMPORTANT TO FOLLOW ALL INSTRUCTIONS AND GUIDELINES IN THIS MANUAL. ADJ PRODUCTS, LLC IS NOT RESPONSIBLE FOR INJURY AND/OR DAMAGES RESULTING FROM THE MISUSE OF THIS FIXTURE DUE TO THE DISREGARD OF THE INFORMATION PRINTED IN THIS MANUAL.

  • Page 9: Overview

    O V E R V I E W Note: DMX In/Out ports feature 5-pin connections for the US market, and 3-pin connections for the EU market.

  • Page 10: Installation

    I N S TA L L AT I O N FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. USE CAUTION WHEN POWER LINKING FIXTURES OF OTHER MODEL TYPES, AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE.
  • Page 11 I N S TA L L AT I O N CLAMP INSTALLATION This fixture features a mounting point on the yoke for the attachment of an Omega bracket and mounting clamp. There is also a safety cable loop located on the rear of the fixture near the display screen (see the illustration below).
  • Page 12 LEDs. This issue is not unique to ADJ lighting fixtures; it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guide- lines below can reduce the risk of any potential damage if followed.

  • Page 13: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 14: System Menu

    S Y S T E M M E N U The fixture includes an easy to navigate system menu control panel display where all necessary settings and adjustments are made. (See image below) • MODE: Cycles through the main menu options and/or return to previous menu without making changes.
  • Page 15 S Y S T E M M E N U Address 001 - 512 Set DMX address of the unit. Set DMX channel mode. Ch. Mode 10ch 13ch DMX SET 16ch Unit holds last setting if DMX Hold signal is lost. Unit goes to standby mode if Blackout No DMX...
  • Page 16 S Y S T E M M E N U 000 - 255 Manually adjust red Blue 000 - 255 Manually adjust blue Green 000 - 255 Manually adjust green Lime 000 - 255 Manually adjust lime ClrMacro 00 - 64 Select color macro ClrTemp 000 - 255...

  • Page 17: Dim Modes

    D I M M E R M O D E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage 1100...

  • Page 18: Dmx Setup

    XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the chances of erratic behavior. 5-Pin XLR DMX Connectors. Some manufacturers use 5-pin XLR connectors for DATA transmission in place of 3-pin.

  • Page 19: Dmx Addressing

    D M X A D D R E S S I N G All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen”...

  • Page 20: Dmx Traits

    D M X T R A I T S CHANNEL DMX VALUE FUNCTION 4CH 7CH 8CH 10CH 13CH 16CH Red, 0% - 100% 000 - 255 Red Fine 000 - 255 000 - 255 Green, 0% - 100% 000 - 255 Green Fine Blue, 0% - 100% 000 - 255...
  • Page 21 D M X T R A I T S CHANNEL DMX VALUE FUNCTION 4CH 7CH 8CH 10CH 13CH 16CH Dim Mode 000 - 020 Default to unit setting 021 - 040 Standard 041 - 060 Stage 061 - 080 081 - 100 Architectural 101 - 120 Theatre...
  • Page 22 D M X T R A I T S CHANNEL DMX VALUE FUNCTION 4CH 7CH 8CH 10CH 13CH 16CH Special Functions 000 - 015 Default to Unit Setting 016 - 030 900 Hz 031 - 045 1000 Hz 046 - 060 1100 Hz 061 - 075 1200 Hz...

  • Page 23: Color Macro Chart

    C O L O R M A C R O C H A R T RGBW COLOR INTENSITY RGBW COLOR INTENSITY Color DMX Value Color DMX Value RED GREEN BLUE RED GREEN BLUE WHITE Color Macro 33 129-132 Color Macro 1 Color Macro 34 133-136 Color Macro 2 Color Macro 35 137-140...

  • Page 24: Daisy Chain Power Linking | Cleaning And Maintenance

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

  • Page 25: Specifications

    S P E C I F I C AT I O N S SOURCE: • Light Source: 18 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime) PHOTMETRIC DATA: • Beam angle: 10° (includes 25° removable frost filter) •...
  • Page 26 D I M E N S I O N A L D R AW I N G S 194.2mm [7.6in] 117.4mm [4.6in] 182.1mm [7.2in] 338.0mm [13.3in] Dimensions may not be drawn to scale.

  • Page 27: Accessory And Ordering Information

    A C C E S S O R Y A N D O R D E R I N G I N F O R M AT I O N SKU NUMBER DESCRIPTION ENC368 ADJ Encore LP18IP ELP18L100 100-degree Frost Filter ELP18L60...
