Summary of Contents for ADJ LTS COLOR

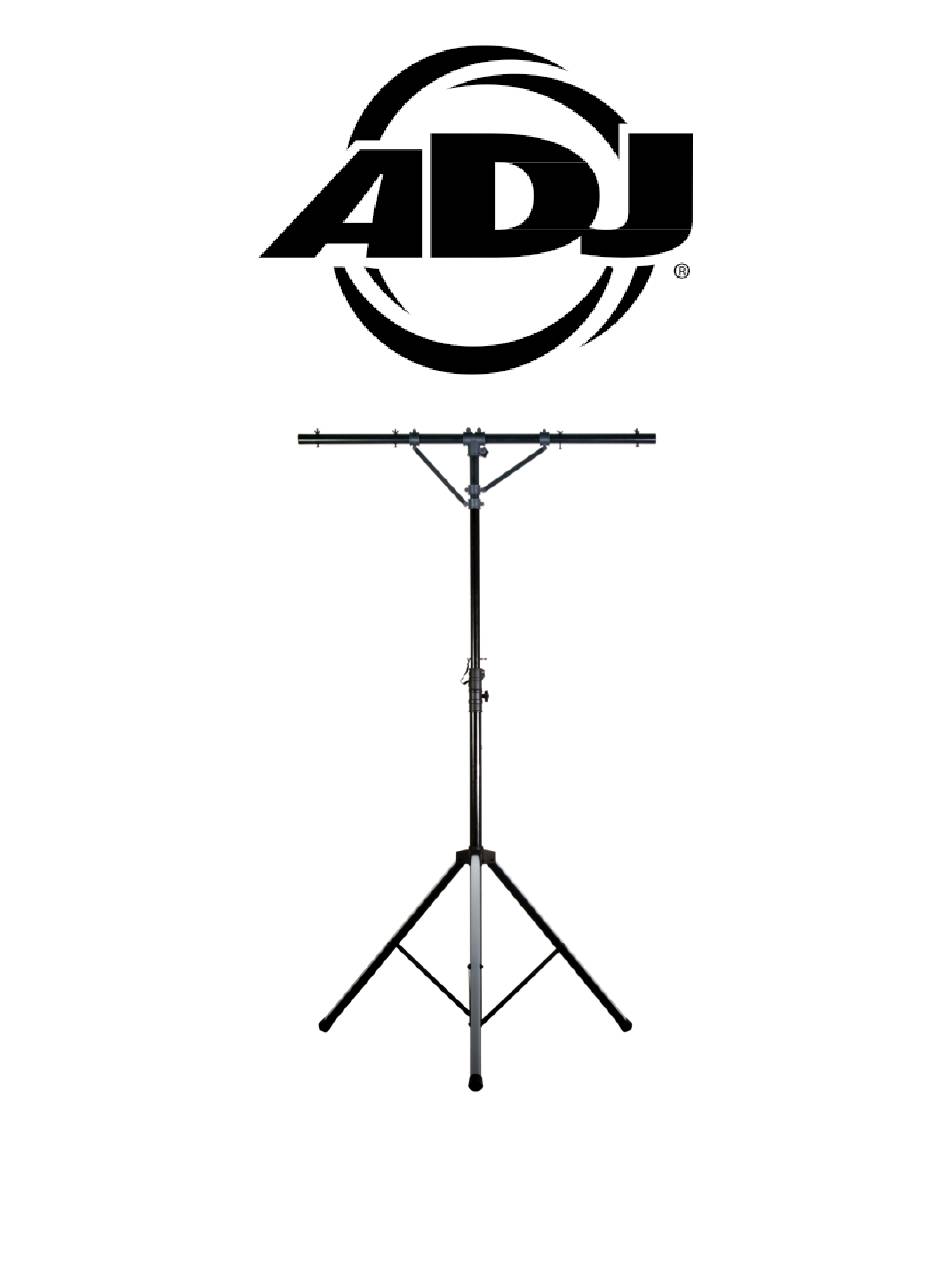

- Page 1 LTS COLOR user manual...
- Page 2 ADJ PRODUCTS LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
- Page 3 FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RADIO FREQUENCY INTERFERENCE WARNINGS &...
-
Page 4: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Overview Installation Instructions Remote Control Trouble Shooting Tips Frequently Asked Questions Technical Specifications... -
Page 5: General Information
You may obtain a R.A. number by contacting customer support. CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Please visit forums.adj.com with questions, comments or suggestions. -
Page 6: Limited Warranty (Usa Only)
ADJ Products, LLC be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product. -
Page 7: Safety Guidelines
To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS LLC is not responsible for injury and/or damages resulting from the misuse of these devices due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of these devices and only the original rigging parts included with these devices should be used for installation. - Page 8 S A F E T Y I N S T R U C T I O N S A N D G U I D E L I N E S DO NOT position stand close to any FLAMMABLE MATERIALS while operating. DO NOT attempt installation and/or operation of stand without knowledge how to do so.
-
Page 9: Maintenance Guidelines
There are no user serviceable parts inside these devices, please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer or online at parts.adj.com. -
Page 10: Overview
O V E R V I E W INCLUDED ITEMS (1) LTS Color Light Stand (1) T-BAR with (4) Wing Nuts and Bolts (2) 2 Support Bar (1) RF Remote (1) Power Supply 1. Safety Pin 6. Knob B 11. Knob C 2. -
Page 11: Installation Instructions
I N S T A L L A T I O N I N S T R U C T I O N S FLAMMABLE MATERIAL WARNING Keep devices minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. - Page 12 I N S T A L L A T I O N (continued) SETUP Loosen Knob B by turning it counter clockwise. Spread the legs by pulling up on the outer pipe until the stays extend horizontally. Once a desired base height is set, tighten Knob B by turning clockwise. Loosen Knob A by turning it counter clockwise.
- Page 13 Lighting and other optional accessories may be mounted to the T-Bar. For installation instructions, please refer to the mounting instructions provided with the unit that is to be installed. Note: The LTS Color stand has a maximum capacity of 100 lbs. (45 kg.) *Lights not included.
- Page 14 CONNECTING THE POWER The LTS Color has a 12V, 3A power supply included. To connect the power, connect the power supply to the adapter at the base of the stand.
-
Page 15: Remote Control
R E M O T E C O N T R O L PAIRING: The original remote that comes in the box is already paired to the unit. In the event that the remote is not paired with the unit, or if pairing to an additional unit, follow the steps below: 1) Unplug the power to the main unit and reconnect the power after ten seconds. -
Page 16: Trouble Shooting Tips
The maximum height of the stand is 137 inches (11.42’ or 3.48 m) 5. Are additional stands available? Yes. A variety of stands and accessories are available at www.adj.com. O P T I O N A L A C C E S S O R I E S... -
Page 17: Technical Specifications
T E C H N I C A L S P E C I F I C A T I O N S Total Height Range: 57 inches (1450 mm) to 137 inches (3,500 mm) Includes: IR remote, 12V power supply, 4 nuts and bolts to hang lighting fixtures Load Capacity: 100 lbs.
