Summary of Contents for ADJ UV LED BAR20 IR

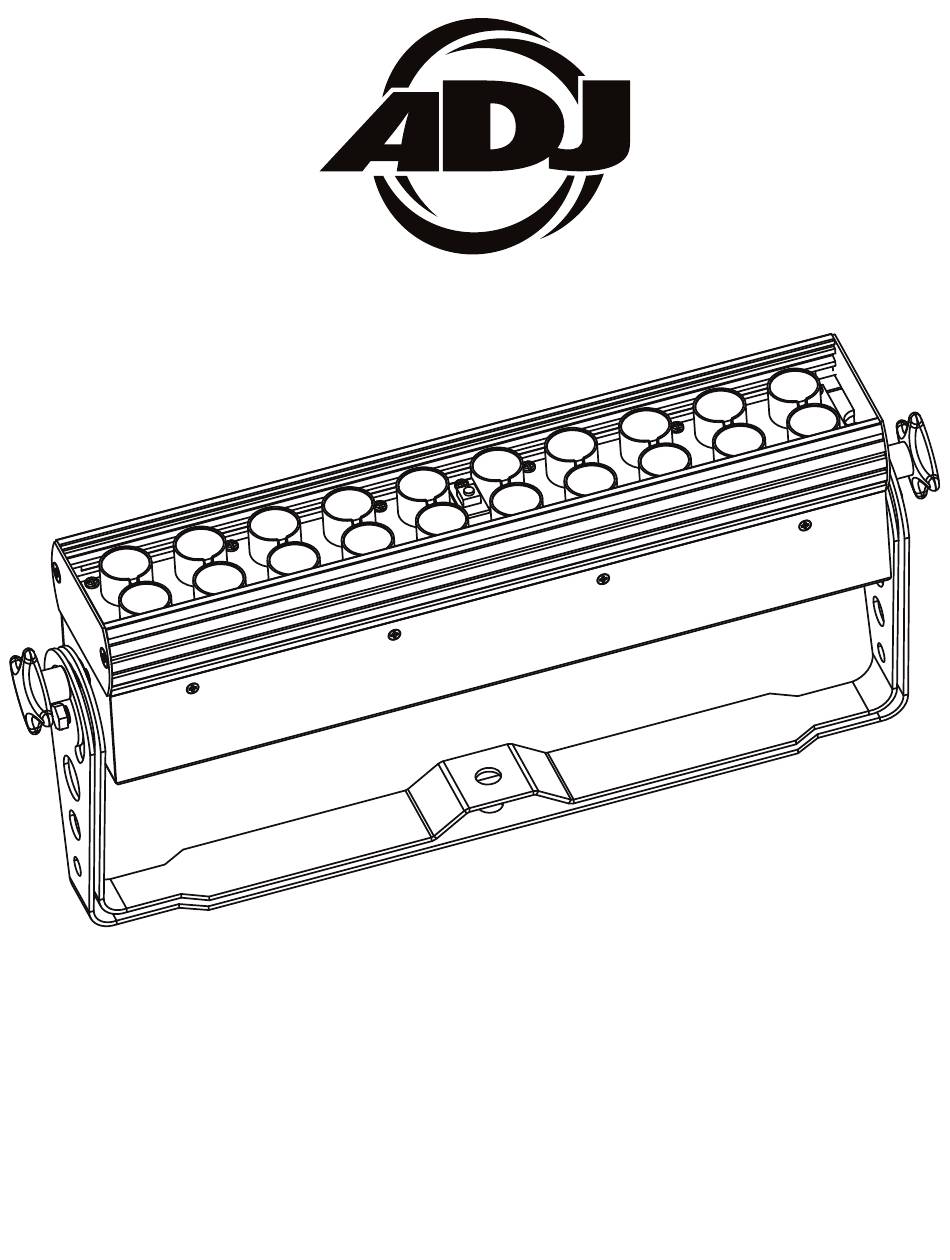

  • Page 1 UV LED BAR20 IR User Instructions...
  • Page 2 ©2023 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
  • Page 3: Table Of Contents

    C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Overview Wireless Setup | IR Remote System Menu Primary-Secondary Configuration | Multi-Link Setup Dimmer Curves and Dimmer Modes DMX Setup DMX Traits Cleaning & Maintenance Specifications...
  • Page 4: General Information

    KEY FEATURES: The UV LED BAR20 IR is a high output ultraviolet LED backlight that comes with a wireless remote for easy control of On/Off and strobe speed. It is a free solution for washing stages, nightclubs, Bowling Center, Roller Rinks and Fun Centers with ultraviolet light.
  • Page 5: Limited Warranty (Usa Only)

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.
  • Page 6: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ Products, LLC is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S • RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION! • FIXTURE EMITS HIGH INTENSITY WAVELENGTH ULTRAVIOLET LIGHT. • WEAR PROPER EYE AND SKIN PROTECTION. •...
  • Page 8: Overview

    O V E R V I E W LEDs Power On/Off Switch Power In Display Power Out Fuse: 2A/250V 3pin DMX In Controls 3pin DMX Out Tilt Adjustment Brackets...
  • Page 9: Wireless Setup | Ir Remote

    W I R E L E S S S E T U P There are many factors that can affect and/or interrupt a wireless signal, including walls, glass, metal, objects, and people. Therefore, the following guidelines are recommended in order to maximize the chances of having a clear path for the wireless signal to reach the device: •...
  • Page 10: System Menu

    DMX Mode: The UV LED Bar20 IR has 3 DMX modes: 1 Channel Mode, 2 Channel Mode, and 3 Channel Mode. 1. This function will allow you to control individual fixture traits. 2. Use the MODE button to scroll through the DMX Channel modes. The Channel modes are listed below: To run the 1 Channel Mode, press the MODE button until “1XXX”...
  • Page 11: Primary-Secondary Configuration | Multi-Link Setup

    P R I M A R Y- S E C O N D A R Y C O N F I G U R AT I O N Primary-Secondary Configuration: This function allows you to link units to run in a Primary-Secondary mode. In Primary-Secondary configuration, one unit will act as the primary controlling unit, and the others will react to the controlling units built-in programs.
  • Page 12: Dimmer Curves And Dimmer Modes

    D I M M E R C U R V E S A N D D I M M E R M O D E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect...
  • Page 13: Dmx Setup

    D M X S E T U P Power Supply Power Supply: The ADJ UV LED Bar20 IR contains a automatic voltage switch, which will auto sense the voltage when it is plugged into the power source. With this switch there is no need to worry about the cor- rect power voltage, this unit can be plugged in anywhere.
  • Page 14: Dmx Traits

    D M X T R A I T S CHANNEL DMX VALUES FUNCTION 1 CH 2 CH 3 CH DIMMER 0-100% 0-255 STROBING 0-31 LED OFF 32-63 LED ON 64-95 STROBING SLOW - FAST 96-127 LED ON 128-159 PULSE STROBE SLOW - FAST 160-191 LED ON 192-223...
  • Page 15: Cleaning & Maintenance

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from an authorized ADJ dealer.
  • Page 16: Specifications

    S P E C I F I C AT I O N S • Bright, high output Ultraviolet Bar with 20x 1-Watt UV LEDs • Includes wireless remote control (control On/Off and strobe speed) • Great for performance stages, theatrical productions and special effects installations •...
  • Page 17 D I M E N S I O N D R AW I N G S DRAWINGS NOT TO SCALE 2.75” (70mm) 13.22” (336mm) 2.75” (70mm) 15.75” (400mm) 2.30” (58.56mm) 5.11” (130mm)
