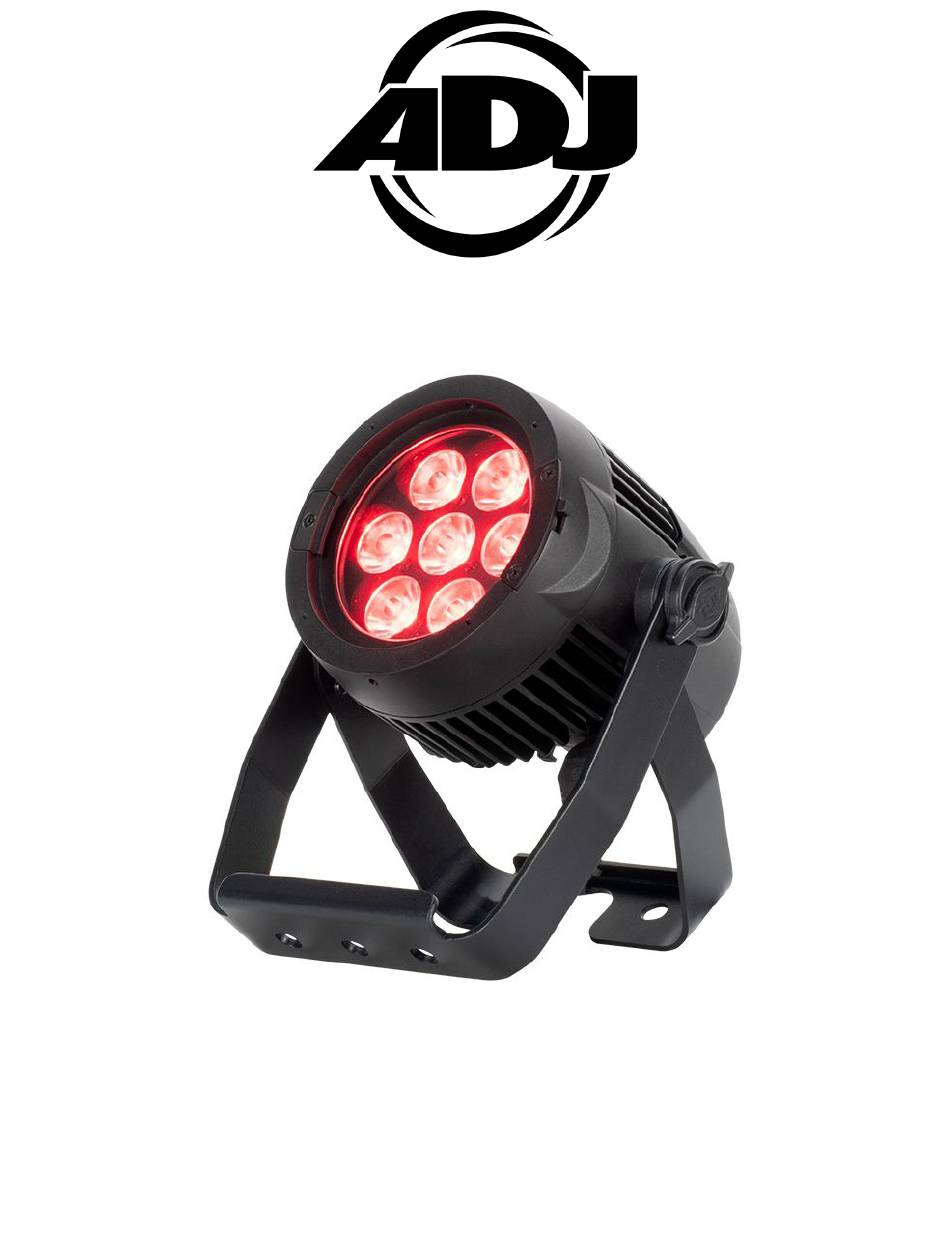

- Page 1 ENCORE LP7P User Guide...
- Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
C O N T E N T S Introduction Limited Warranty (USA Only) Warranty Registration | Features IP65 Rating Statement Safety Guidelines Overview Installation Remote Device Management (RDM) System Menu DMX Setup DMX Traits Color Macros Chart Dim Modes Daisy Chain Power Linking | Cleaning and Maintenance Dimensional Drawings Specifications Accessories... -
Page 4: Introduction
Do not return this unit to your dealer without first contacting customer support. Introduction: The ADJ Encore LP7IP is a DMX intelligent, heavy duty Par. To optimize the perfor- mance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations of this unit. -
Page 5: Limited Warranty (Usa Only)
ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual. - Page 6 F E AT U R E S The ADJ Encore LP7IP is a versatile, heavy duty Par with seven (7) 20W Quad LEDs (4-IN-1: Red, Green, Blue & Lime), a 10-degree beam angle, and all metal construction. It is IP65 outdoor rated to protect against, rain, snow and dust for temporary outdoor events.
- Page 7 10,000-hours. This is a prophylactic measure intended to keep the unit running as cool as possible, insuring proper function of all internal components. A complete service breakdown is available, please contact service@adj.com for any needed parts or manuals.
-
Page 8: Safety Guidelines
THIS FIXTURE IS COMPOSED OF SOPHISTICATED ELECTRONIC COMPONENTS. TO GUARANTEE SMOOTH OPERATION, IT IS IMPORTANT TO FOLLOW ALL INSTRUCTIONS AND GUIDELINES IN THIS MANUAL. ADJ PRODUCTS, LLC IS NOT RESPONSIBLE FOR INJURY AND/OR DAMAGES RESULTING FROM THE MISUSE OF THIS FIXTURE DUE TO THE DISREGARD OF THE INFORMATION PRINTED IN THIS MANUAL. -
Page 9: Overview
O V E R V I E W... -
Page 10: Installation
I N S TA L L AT I O N FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotecnics ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. USE CAUSTION WHEN POWER LINKING FIXTURES OF OTHER TYPES, AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE. - Page 11 I N S TA L L AT I O N CLAMP INSTALLATION This fixture features a mounting point on the yoke for the attachment of an Omega bracket and mounting clamp. There is also a safety cable loop located on the rear of the fixture near the display screen (see the illustration below).
- Page 12 LEDs. This issue is not unique to ADJ lighting fixtures; it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guide- lines below can reduce the risk of any potential damage if followed.
-
Page 13: Remote Device Management (Rdm)
R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. -
Page 14: System Menu
ADJ Supply Europe B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands www.adj.eu | support@adjgroup.eu +31 (0)45 546 85 00 | +31 45 546 85 99 fax | ADJ Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070... - Page 15 S Y S T E M M E N U 001 - 512 Address Set DMX address of the unit. Ch. Mode Set DMX channel mode 10ch 13ch DMX SET 16ch Unit holds last setting if DMX Hold signal is lost. Unit goes to standby mode if No DMX Blackout...
- Page 16 S Y S T E M M E N U 000 - 255 Manually adjust red Blue 000 - 255 Manually adjust blue Green 000 - 255 Manually adjust green Lime 000 - 255 Manually adjust lime ClrMacro 00 - 64 Select built-in color macro ClrTemp 000 - 255...
- Page 17 P R I M A R Y / S E C O N C A R Y M O D E This function allows you to link units together to run in a Primary-Secondary set-up, in which one unit will act as the controlling unit and the others will react to the controlling unit’s built-in programs. Any unit can be configured to act as a Primary or as a Secondary, but only one unit in a given system can be programmed to act as the Primary.
- Page 18 FA N M O D E S a n d L O W N O I S E O P E R AT I O N The fixture is a high-performance fixture suited for multiple applications. For noise critical environments such as Theater, Opera or Orchestra Halls, it offers various fan operation modes which remove any distraction for the audience and performers.
-
Page 19: Dmx Setup
2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the chances of erratic behavior. - Page 20 D M X S E T U P DMX ADDRESSING All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen”...
-
Page 21: Dmx Traits
D M X T R A I T S CHANNEL DMX VALUE FUNCTION 4CH 7CH 8CH 10CH 13CH 16CH Red, 0% - 100% 000 - 255 Red Fine 000 - 255 Green, 0% - 100% 000 - 255 Green Fine 000 - 255 Blue, 0% - 100% 000 - 255... - Page 22 D M X T R A I T S CHANNEL DMX VALUE FUNCTION 4CH 7CH 8CH 10CH 13CH 16CH Auto Programs (continued) 160 - 191 Auto Program 5 192 - 223 Auto Program 6 224 - 255 Auto Program 7 Auto Program Speed, slow to fast 000 - 255 Auto Program Fade, least to most...
- Page 23 D M X T R A I T S CHANNEL DMX VALUE FUNCTION 4CH 7CH 8CH 10CH 13CH 16CH Dim Curves 000 - 020 Square 021 - 040 Linear 041 - 060 Inv. Squa 061 - 080 S. Curve 081 - 255 No function Special Functions 000 - 015...
-
Page 24: Color Macros Chart
C O L O R M A C R O S C H A R T RGBW COLOR INTENSITY RGBW COLOR INTENSITY Color DMX Value Color DMX Value RED GREEN BLUE RED GREEN BLUE WHITE Color Macro 33 129-132 Color Macro 1 Color Macro 34 133-136 Color Macro 2 Color Macro 35 137-140... -
Page 25: Dim Modes
D I M M O D E S The fixture includes 6 different dimming curve modes which can selected from either the system menu or via DMX. The graph below provides details on each dimming curve mode. DIMMER 100% Time (ms) 0 Sec Rise Time Down Time... - Page 26 Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.
-
Page 27: Dimensional Drawings
D I M E N S I O N A L D R A W I N G S Dimensions may not be drawn to scale. -
Page 28: Specifications
S P E C I F I C AT I O N S SOURCE: • Light Source: 7 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime) PHOTMETRIC DATA: • Beam angle: 10° (Includes 25° removable frost filter) •... -
Page 29: Accessories
A C C E S S O R I E S SKU NUMBER DESCRIPTION ENC327 ADJ Encore LP7IP ELP7L100 100-degree Frost Filter ELP7L60 60-degree Frost Filter ELP7L20 20-degree Frost Filter ELP7L30X60 30x60-degree Frost Filter ELP7L1X40 1x40-degree Frost Filter...
