STANDARD DISPLAY SCREENS

NOTE:This manual shows all the Monitor display screens that are
available. Depending on your type of engine, not all these screens
will apply.
Software Version
Gal
RPM
Gal/h
Hrs
Engine Hours

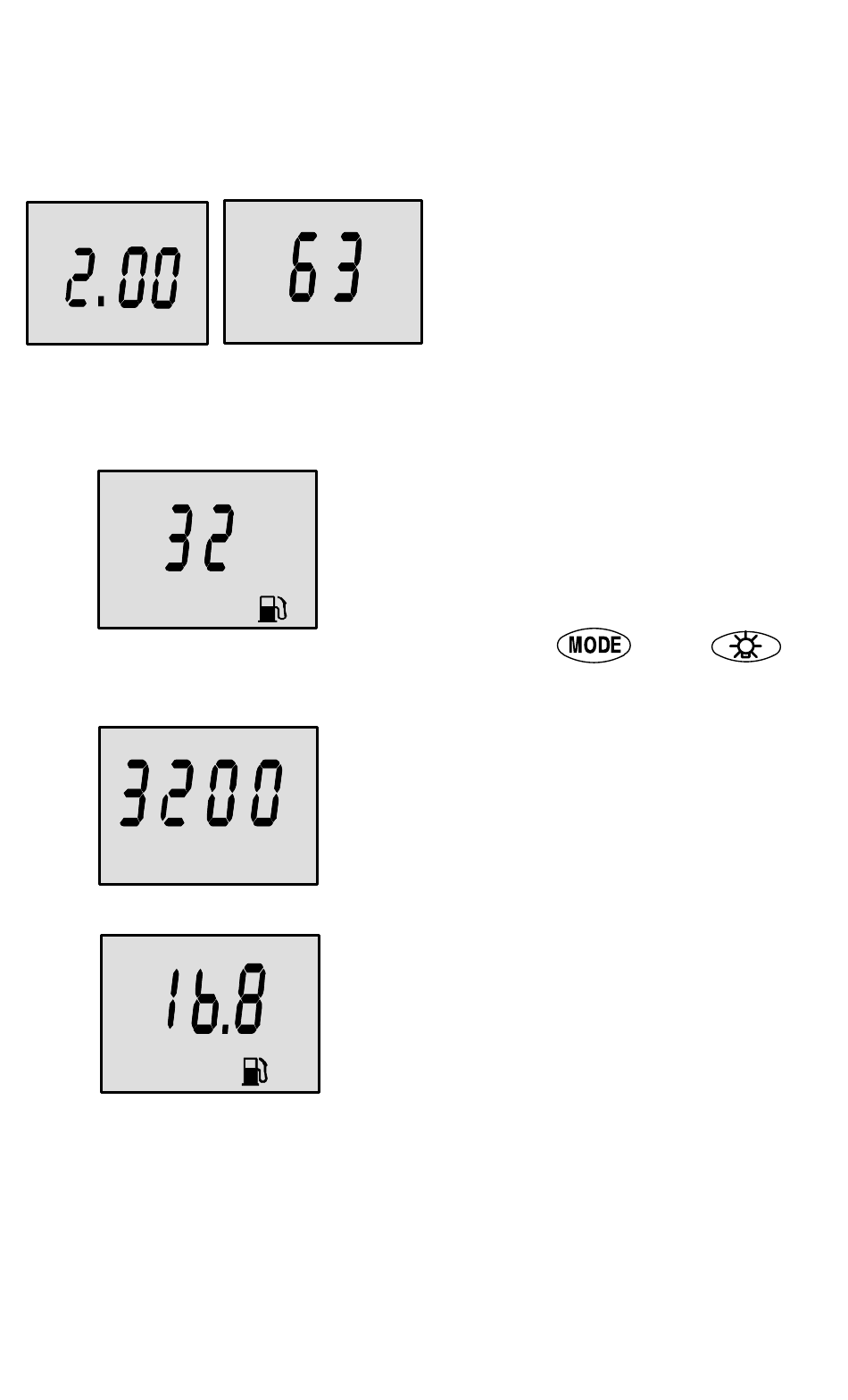

Start Up
At start up, a momentary (1
second) screen displays the
current monitor
version, followed by a 4 second
display showing hours of engine
use.
Fuel Used
Displays approximate fuel used
since the last reset. Reset will
return display back to 0.
You can Reset anytime by
pressing
buttons together momentarily.
Engine RPM
Tachometer – Displays engine
speed in
Minute (RPM).
Fuel Flow
Displays
individual
consumption in Gallons per
hour (Gal/hr) or Liters per hour
(Ltr/hr).
(continued on next pge)
7
software
and
Revolutions
current estimated
engine
Per
fuel
