SMARTCRAFT CONNECT GATEWAY
INSTALLATION MANUAL
IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or
service of our products. If you have not been trained in the recommended servicing or installation procedures for these or
similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper
installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or
operating the product.

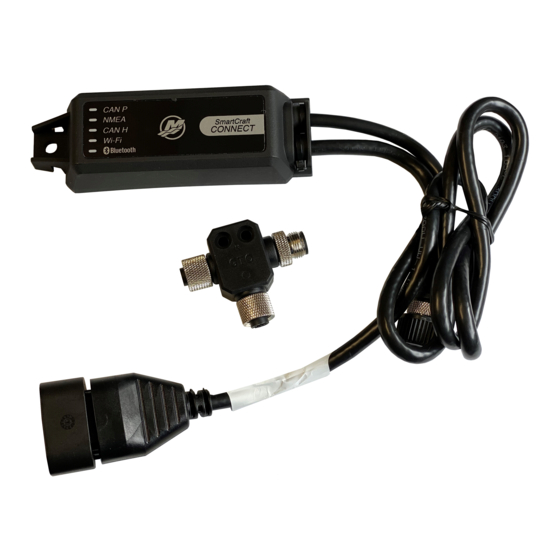

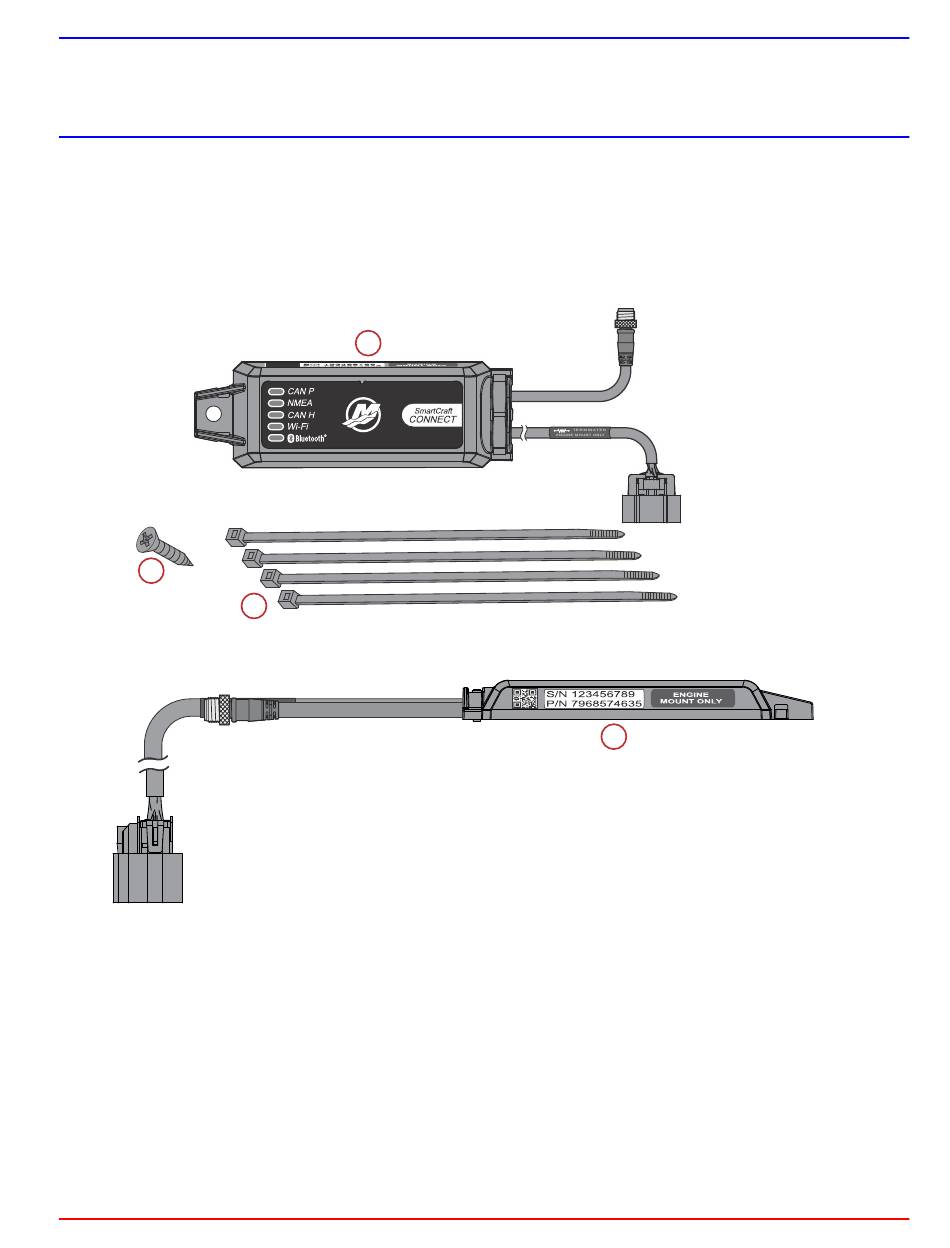

Components in Kit
NOTE: The termination band on the 10‑pin connector cable only applies to engine mounted modules.
d
a -
SmartCraft CONNECT module
b -
SmartCraft CONNECT module ‑ side view
c -
Cable ties ‑ 4
d -
#10 x .88" stainless steel wood screw
Features
The CAN P, CAN H, and NMEA lights will turn on when data is being transmitted through the Gateway.
NOTE: This manual covers the installation of CAN P only ‑ engine mounted module (single). The helm mount module will
default out of the box with CAN P and CAN H. CAN H is applicable to Dual, Triple, and Quad DTS engine applications. CAN
H must be turned off if encountering issues with analog tachometers on mechanical/non‑DTS products.
90-8M0184941 eng JUNE 2021
a
c
b
© 2021 Mercury Marine
71911
Page 1 / 10
