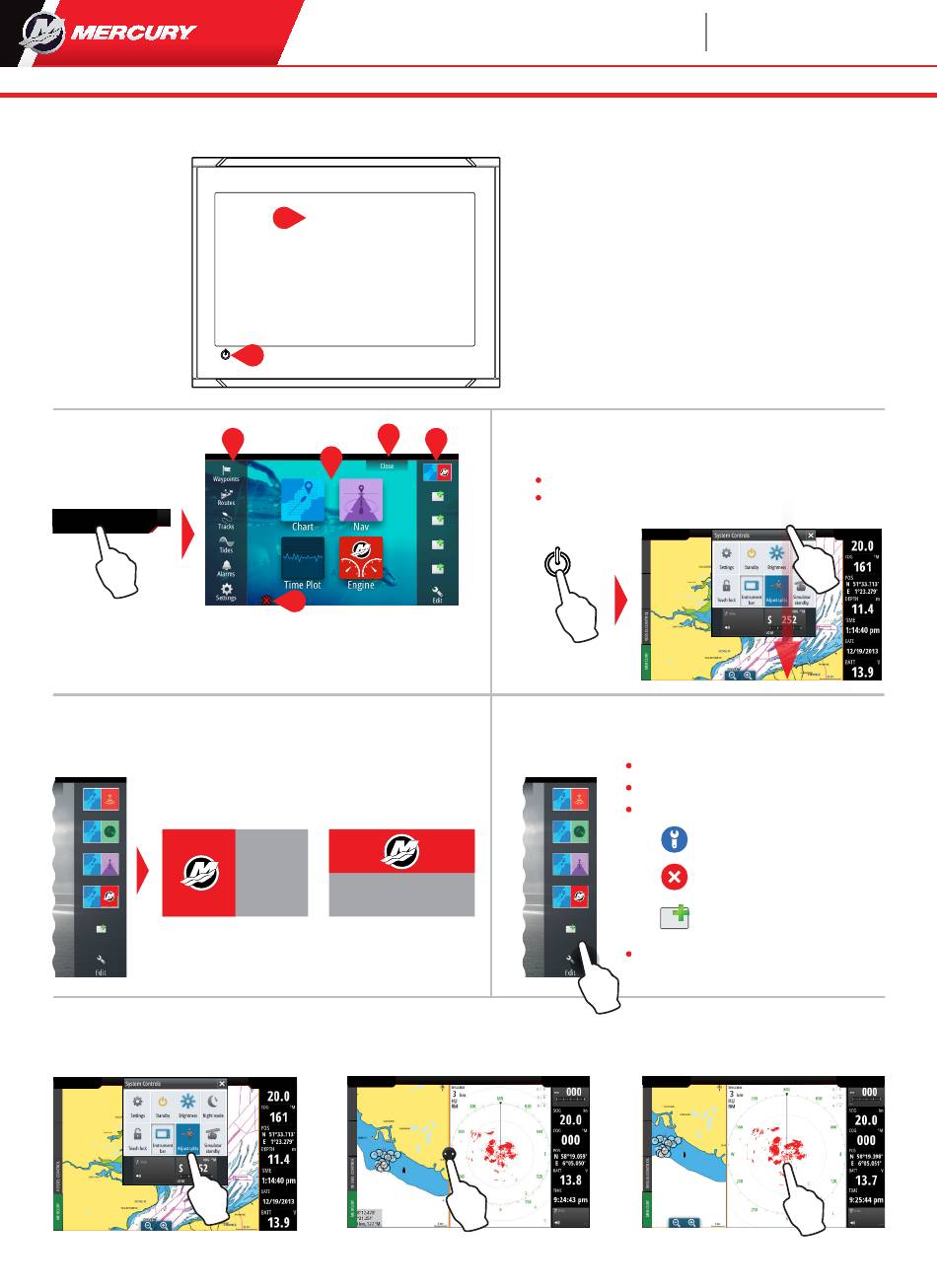

Display Controls

HOME

Home Page

1
HOME BUTTON
HOME
1
3
Tools
Close button
(Return to last
2
Applications
screen)

Favorites

Use favorites to create custom panel configurations with engine data
1/2 vertical

Adjust split page panel size

1.
- Open the System Control Dialog
- Tap the adjust splits to show the resize icon
3:16:20 pm 20.6ft
HOME
VesselView
1
2
3:16:20 pm 20.6ft
3
2
3:16:20 pm 20.6ft
5
4
Favorites
5
Man Over Board
(MOB) button
1/2 horizontal
2.
Drag the resize icon
to set preferred panel size

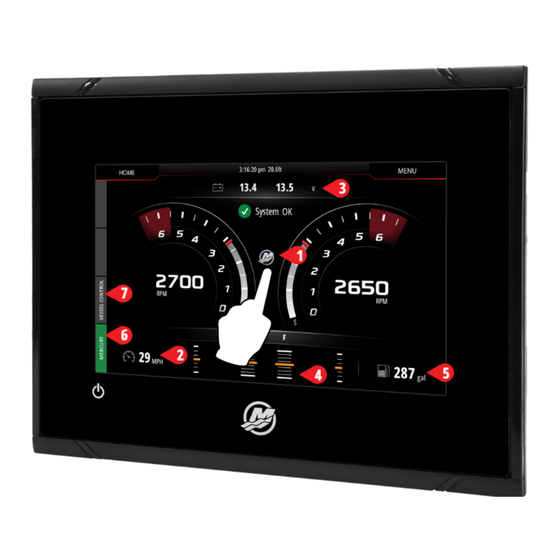

HOME
MENU
502
1
Touch Screen
2
Power Key - Press once to display the
System control dialog. Repeat short
presses to cycle the backlight bright-
ness.
MENU

System Control Dialog

4
Gain quick access to system settings. Activate by:
pressing the
swiping from the top of the screen
MENU
POWER
Note: Content of the System
Control dialog depends on
connected equipment.
Edit a favorite page
Enter the Favorites edit mode by:
3:16:20 pm 20.6ft
MENU

Quick Guide

POWER
or
3:16:20 pm 20.6ft
HOME
Tapping the Edit icon
Pressing and holding a favorite button
Select edit options
Edit favorite page
Delete favorite page
Add new favorite page
Follow on screen instructions to build
custom screens
3.
Save the changes by tapping
the screen
3:16:20 pm 20.6ft
HOME
MENU
MENU
8M0112860
