Mercury SmartCraft Systems Monitor Operation Manual page 17

1. The word "Trim" and down arrow should be blinking.
2. Trim unit to the full Down/In position.
3. Press the
4. Press the
5. The word "Trim" and down and up arrows should be blinking.
6. Trim unit out to the maximum trim (not trailer) position.
7. Press the
8. Press the
9. The word "Trim" and up arrow should be blinking.
10. Use the trim switch and trim unit out to the maximum trailer posi-
tion.
11. Press the
12. Press the

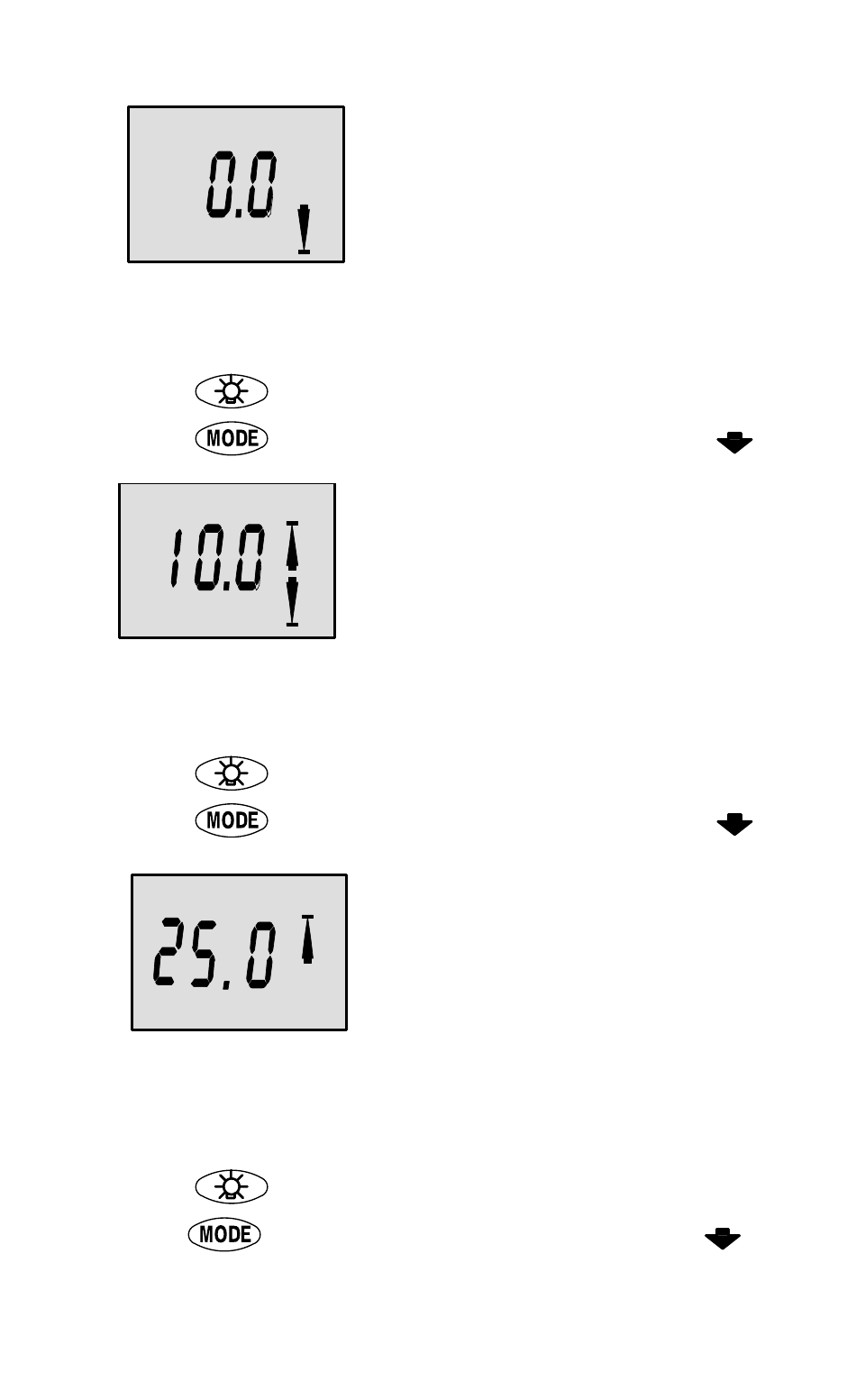

CAL 1 CALIBRATION
Trim
button to save.
button to advance to 10.0 setting.
Trim
button to save.
button to advance to 25.0 setting.
Trim
button to save.
button to move to the next function.
Trim Sensor
0.0 Setting
(Full Trim in Position)
Trim Sensor
10.0 Setting
(Full Trim Out Position)
Trim Sensor
25.0 Setting
(Full Trailer Out Position)
15
