Ledj LED RGB 252 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
www.prolight.co.uk

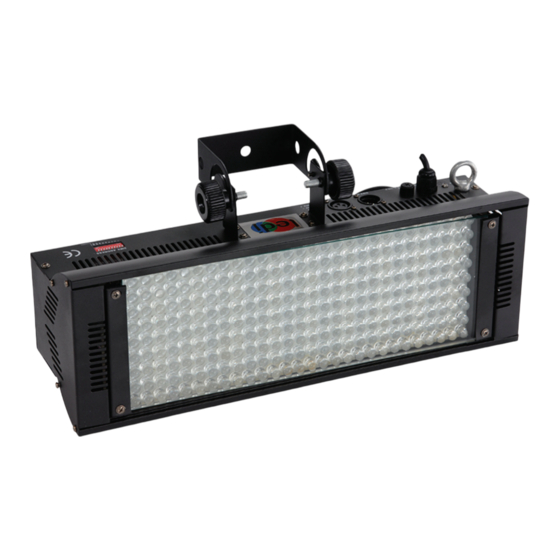

LED RGB 252
(order code: LEDJ50)

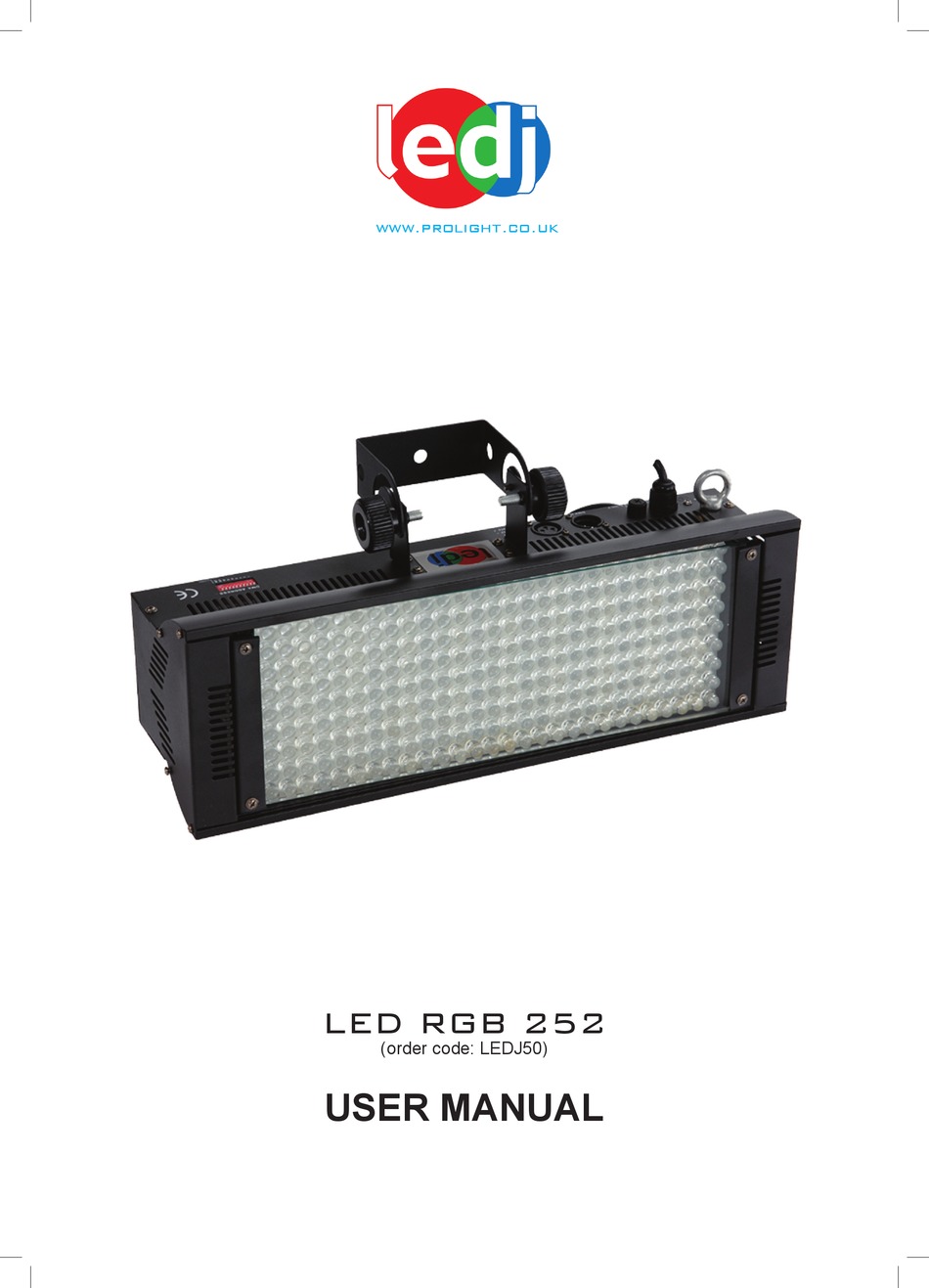

USER MANUAL

Advertisement

loading

Related Manuals for Ledj LED RGB 252

Summary of Contents for Ledj LED RGB 252

  • Page 1 LED RGB 252 (order code: LEDJ50) USER MANUAL...

  • Page 2: Safety Instructions

    LED RGB 252 SAFETY WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...

  • Page 3: Operating Determinations

    LED RGB 252 SAFETY IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
  • Page 4 LED RGB 252 INTRODUCTION Introduction CONTROL FEATURES • 4-channel DMX-RGB Flood • Blackout/Dimmer/Strobe • Individual control of Red, Green and Blue LED’s Features • 252 LED’s: - Red (81), Green (81), and Blue (90) • Ultra bright 10mm LED’s • Sound control via internal microphone •...
  • Page 5 The RGB 252 will operate in stand-alone, Master/Slave, sound activated and via DMX-512 control. Note: When linking the RGB 252 with LEDJ 56 and LEDJ 64 Par Cans the RGB 252 unit must be selected as the master unit.
  • Page 6 LED RGB 252 MASTER/SLAVE Master/Slave The Master/Slave mode will allow you to link up as many units as you want in a daisy chain fash- ion. In this mode, the first unit in the daisy chain will control the following units.

  • Page 7: Control Options

    LED RGB 252 CONTROL OPTIONS Manual Control Options Colour Selection • With Dip Switch 1 only set to ON you obtain static RED • With Dip Switch 2 only set to ON you obtain static GREEN • With Dip Switch 3 only set to ON you obtain static BLUE You can have any combination of switches 1,2,3 to obtain static colour mix.
  • Page 8 LED RGB 252 CONTROL OPTIONS Set the start address using the group of dip switches located usually on the back of the fixture. Each dipswitch has an associated value. Adding the value of each switch in the ON position will provide the start address.
  • Page 9 LED RGB 252 DMX SET UP DMX-512: • DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”...
  • Page 10 LED RGB 252 DMX SET UP Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
  • Page 11 LED RGB 252 Dip Switch Reference Chart DMX Dip Switch Quick Reference Chart Dip Switch Position...

  • Page 12: Dmx Values

    LED RGB 252 DMX VALUES DMX Channel Values DEFAULT VALUE Function 000>255 0-100% Green 000>255 0-100% Blue 000>255 0-100% Shutter/Strobe/Dimmer Blackout: 000 001<>189 Intensity: 001<>189 190<>250 Strobe: 190<>250 251<>255 Full on: 251<>255 Technical Specifications Weight & Dimensions • Length…............450mm • Width..............125mm •...

This manual is also suitable for:

Ledj50
