HCD/HMD/H_E710AHT, HCC1010AHT, HCC1410AHT, HCC1010WHT, HCC1410WHT,
HMC1010AHT, HMC1410AHT, HMC1010WHT, HMC1410WHT,
HCE1010AHT, HCE1410AHT, HCE1010WHT, HCE1410WHT
HME1010AHT, HME1410AHT, HME1010WHT, HME1410WHT
(See model number configurator on page 2 for details.)
Order parts online
www.follettice.com
fit most countertop dispensers manufactured by
Horizon Elite

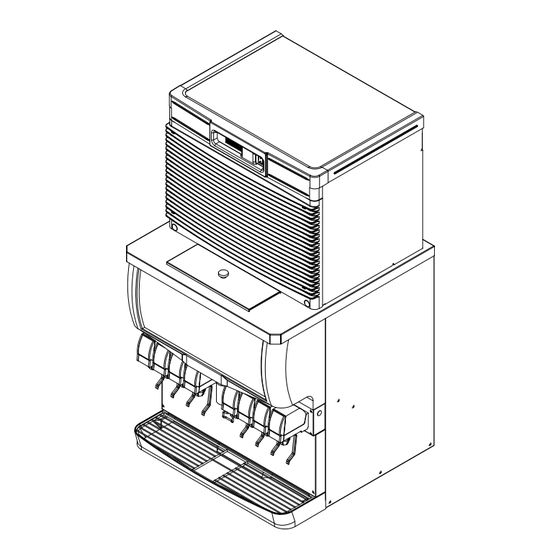

Horizon Elite top-mount ice machines
Cornelius • Lancer • Servend
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Ice Machine Installation Instructions
™
for Harmony
Top-mount Applications
™
01113323R05
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Follett Horizon Elite Harmony HCD E 710AHT Series
Summary of Contents for Follett Horizon Elite Harmony HCD E 710AHT Series
- Page 1 Horizon Elite Ice Machine Installation Instructions ™ for Harmony Top-mount Applications ™ HCD/HMD/H_E710AHT, HCC1010AHT, HCC1410AHT, HCC1010WHT, HCC1410WHT, HMC1010AHT, HMC1410AHT, HMC1010WHT, HMC1410WHT, HCE1010AHT, HCE1410AHT, HCE1010WHT, HCE1410WHT HME1010AHT, HME1410AHT, HME1010WHT, HME1410WHT (See model number configurator on page 2 for details.) Order parts online www.follettice.com Horizon Elite top-mount ice machines fit most countertop dispensers manufactured by...
- Page 2 Chewblet Ice Machine Model Number Configurations ® 1810 Application Configuration Icemaker Voltage Series Condenser MC Maestro™ C 208-230/60/1 (icemaking head) 425 up to A Air-cooled, self-contained V Vision™ S RIDE™ Self-contained only. 425 lbs Chewblet ® W Water-cooled, self-contained H Harmony™ (RIDE remote D 115/60/1 (icemaking head) (193 kg)
- Page 3 Read and complete the following 8 installation steps Unpack Site preparation Bin preparation Docking assembly External connection Ice transport tube Front cover Internal connection HARMONY • TOP-MOUNT self-contained...
-
Page 4: Unpack Ice Machine
Unpack Carefully unpack and inspect the contents of your ice machine. Unpack ice machine ➋ ➌ ➊ ➎ ➍ 7/16" DO NOT TILT ICE MACHINE TO ACCESS BOLTS! COMPRESSOR DAMAGE 7/16" WILL RESULT ➐ ➏ HARMONY • TOP-MOUNT self-contained... -
Page 5: Prepare The Installation Site
• 10-70 psi (69-483 kpa) • 45 to 90 F (7 to 32 C) • Follett recommends the use of an in-line water filtration system (item# 00130286) • This equipment is to be installed with adequate backflow protection to comply with applicable... -
Page 6: Dispenser Preparation
Dispenser preparation Prepare the dispenser. Note: The instructions below only apply to 22" and 30" wide dispensers. 44" wide dispenser instructions may be found with the top kit. Top preparation – ALL Top preparation – ALL ➊ ➊ ➌ ➊ ➊... -
Page 7: Agitation Adjustments - Cornelius
Top preparation – LANCER – — — Lancer models only ➊ • Remove protective tape ➋ • Apply gaskets Agitation adjustments – CORNELIUS E-BOARD AGITATOR TIMER MOTOR ON TIME: SET TO 1 SECOND TIME TIME MOTOR OFF TIME: SET TO 1 HOUR Cornelius models ED, DB, DF, IDC and FLAVOR FUSION Adjust the agitation timer located on the Cornelius PC board to 1 second on, 1 hour off. - Page 8 Agitation adjustments – Coke Freestyle 9000 Call Coca-Cola at 800-241-COKE (2653) and request a Freestyle Senior Tech. Agitation adjustments – Lancer 4500 Series ROCKER PRESS IN ON PRESS IN ON AGITATION TIME SWITCHES THIS SIDE TO THIS SIDE TO (VIEW LOOKING TURN SWITCH TURN SWITCH DOWN)
-
Page 9: Agitation Adjustments - Lancer Fs Series
3.10 Agitation adjustments – Lancer FS Series Initialization Screen (Boot Up Only) Lancer FS-16 Ver. 0.200 – Main Menu Sub-Catagory FS-16 Setup Brands Per Side Major/Minor V:1 L:2 R:1 FS-16 Setup Bonus Key Setup Config Bonus Key V:1 T:F M:S B:W FS-16 Setup Soda/Plain Water Cancel... - Page 10 3.12 Dispenser diverter plate overview (Installation on next page) Single Agitator P/N 307277 — Diverter plate (single agitator Cornelius dispensers and left-hand dispense chute on dual-agitator Cornelius dispensers) Dual Agitator P/N 307277 — Diverter plate (single agitator Cornelius dispensers and left-hand dispense chute on dual-agitator Cornelius dispensers) P/N 00996207 —...
- Page 11 3.13 Dispenser diverter plate installation – Cornelius ED, DF and DB Series GATE MOUNTING PLATE STORAGE HOPPER FLANGE EXTENDS INTO STORAGE HOPPER THROUGH GATE OPENING ICE DIVERTER ICE CHUTE COVER APPLY RTV TO THIS SURFACE TO SEAL TO HOPPER GATE MOUNTING PLATE 10-32 WASHER GASKET...
-
Page 12: Before Proceeding
Docking assembly Install the docking assembly. BEFORE PROCEEDING Prior to installing the docking assembly, ensure that the drain fitting is oriented (right or left) correctly for your installation. An optional straight drain fitting is also supplied. You may need to remove the back panel of the docking assembly in order to re-orient or change the drain fitting. -
Page 13: Ice Transport Tube Installation
Ice transport tube Install the ice transport tube. Ice transport tube installation Hot Water 160 F (71 C) ➊ ➋ ➌ • Install supplied ice transport tube insulation • Heat end of transport tube in cup of 160 F (71 C) hot water to soften and spread with pliers ➊... -
Page 14: External Connections
External connections Connect utilities to docking assembly. Air-cooled ice machines only Water-cooled ice machines only ➊ ➊ ➋ ➏ ➋ ➐ ➌ ➌ Minimum 8" ➏ Minimum 8" ➑ radius radius 2 ft. x 1" OD 2 ft. x 1" OD silicone tubing silicone tubing 3/4"... - Page 15 Chassis drain plumbing - required • Plug must be removed from John Guest fitting. • Route 3/8" drain tubing through knockout in back of docking station and insert fully into John Guest fitting connection at the rear of the machine chassis. Route other end of 3/8"...
-
Page 16: Internal Connections
Internal connections Connect docking assembly to ice machine. CAUTION • Plug must be accessible after final installation. • H_E1410A/W 230/50/1 requires a 20A circuit (4.00 mm wire) Air-cooled ice machines – follow steps 7.1 through 7.5. Water solenoid, shut-off valve, Ice transport tube and potable water line options If water solenoid is already mounted to... - Page 17 Water-cooled ice machines – follow steps 7.6 through 7.12. Cooling lines TDS switch HIGH CLEAN • Set the TDS switch on the electrical box: • Install ice machine cooling water lines to docking assembly HIGH: for extended service life LOW: for low-scale water Water solenoid, shut-off valve, Ice transport tube and potable water line options...
- Page 18 7.10 Cooling lines and power Power cord ➋ ➊ • Remove twist tie • Carefully pass cord through opening and • Connect cooling water lines to ice plug into wall outlet machine (Water "Out" connects to water • For HCE/HME units, install a suitable plug ➊...
-
Page 19: Front Cover
Front cover Install front cover to ice machine. Install front cover ➋ ➌ ➊ • Slide ice machine cover over machine ensuring that tabs on back of cover slip under louvers on back of docking assembly ➊ • Insert and tighten two screws through cover and into docking assembly ➋... - Page 20 • Secure insulated ice transport tube at least every 2 ft (0,6 m) to prevent dips or traps Maestro, Micro Chewblet, Vision, Harmony, Ice Manager, Horizon, Horizon Elite are trademarks of Follett Products LLC. Chewblet, RIDE, Follett are registered trademarks of Follett Products LLC.
