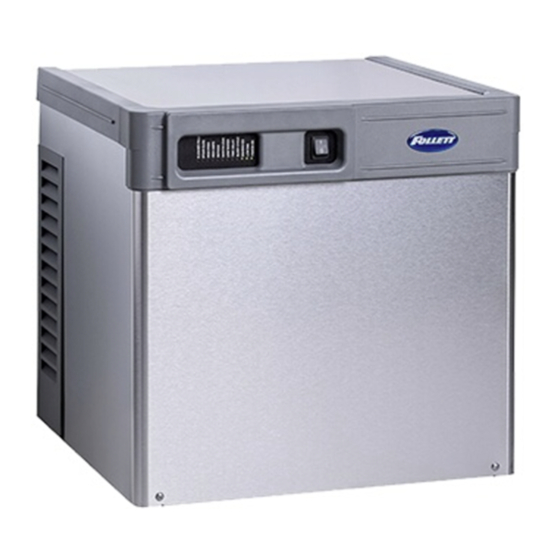

HCD1010R/N, HCD1410R/N,
HMD1010R/N, HMD1410R/N,
HCF1010R/N, HCF1410R/N,
HMF1010R/N, HMF1410R/N
Welcome to Follett
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding
after-the-sale support. To ensure that this equipment delivers that same degree of service, review this guide
carefully before you begin your installation.
Should you need technical help, please call our Technical Service group at (877) 612-5086 or (610) 252-7301.
Please have your model number, serial number and complete and detailed explanation of the problem when
contacting Technical Service.
Getting Started
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. All freight
is to be inspected upon delivery. If visible signs of damage exist, please refuse delivery or sign your delivery receipt
"damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed
photos of the damage with the original packaging so that we may start the freight claim process.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
Horizon Elite 1010/1410 Ice Machines (Remote Condensing)
www.follettice.com

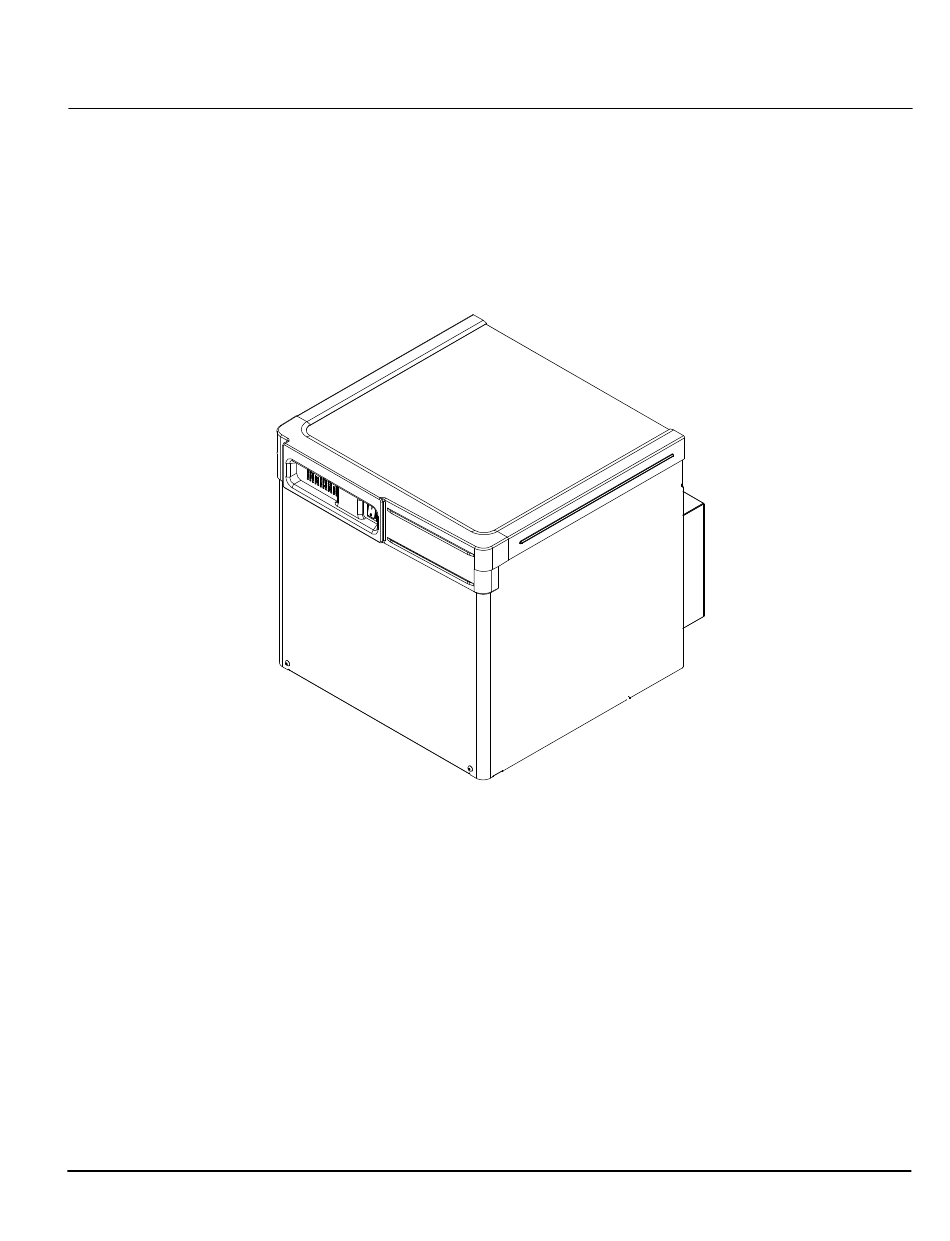

Horizon Elite™ 1010/1410 Ice Machines
Please visit www.follettice.com/technicaldocuments
for the Operation and Service manual for your unit.
(Remote Condensing)
User Guide
After Serial Number L82638
Installation and Service Videos:
www.follettice.com/servicevideolibrary
1
01252592R06
Advertisement
Table of Contents
Related Manuals for Follett Horizon Elite HCF1010R/N
Summary of Contents for Follett Horizon Elite HCF1010R/N
- Page 1 If visible signs of damage exist, please refuse delivery or sign your delivery receipt "damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed photos of the damage with the original packaging so that we may start the freight claim process.
-
Page 2: Specifications
This equipment to be installed with adequate backflow protection to comply with applicable federal, state, and local codes. Notes: § Water supply must have particle filtration. Follett recommends the filter system that has integral scale inhibitors. (Follett item# 00130286). § Follett does not recommend the use of water softeners or bowl scale inhibitors. - Page 3 § 3/8" OD push-in water inlet - 3/8" OD tubing required. § Water shut-off recommended within 10 feet (3 m). § Follett recommends installation of Follett water filter system (part# 00130286) in ice machine inlet water line. Flush drain plumbing §...
-
Page 4: Ice Production
Ambient Evaporator unit Air temperature 100 F/38 C max. 50 F/10 C min. Water temperature 90 F/32 C max. 45 F/7 C min. Water pressure 70 psi max. (483 kPa) 10 psi min. (69 kPa) Condenser unit Air temperature 120 F/49 C max. –20F/–29C min. -
Page 5: Dimensions And Clearances
Dimensions and clearances § Entire front of ice machine must be clear of obstructions/connections to allow removal. § 1" (26 mm) clearance above ice machine for service. § 1" (26 mm) minimum clearance on sides. § The intake and exhaust air grilles must provide at least 250 sq in (1615 sq cm) of open area. §... - Page 6 Condensing unit 1010/1410 single phase (Tecumseh) 1410 three phase (Larkin) 1010 three phase (Tecumseh) Horizon Elite 1010 series Horizon Elite 1410 series W1 Width 39.9" (101.3 cm) – Model ASAFR9510ZNAMC1, 39.9" (101.3 cm) – Model ASFS9516ZNAMC1 37.75" (95,9 cm) – three phase (Larkin) ASFR9511ZFAMC1 36.25"...
-
Page 7: Operation
Cleaning of the condenser can usually be performed by facility personnel. Cleaning of the icemaker system, in most cases, should be performed by your facility’s maintenance staff or a Follett authorized service agent. Regardless of who performs the cleaning, it is the operator’s responsibility to see that this cleaning is performed according to the schedule below. - Page 8 Fig. 2 2. Follow the directions on the SafeCLEAN Plus packaging to mix 1 gal. (3.8 L) of Follett SafeCLEAN Plus solution. Use 100 F (38 C) water. 3. Using a 1 quart (1 L) container, slowly fill cleaning cup until CLEANER FULL light comes on.
- Page 9 Fig. 5 7. Disconnect coupling as shown. Fig. 6 8. Using disposable foodservice grade gloves, insert dry SaniSponge cleaning sponge. 9. Insert SaniSponge cleaning sponge soaked in SafeClean Plus (from Step 4). 10. Push both SaniSponge cleaning sponges down ice transport tube with supplied pusher tube.
- Page 10 Fig. 8 12. Reconnect coupling. Press power switch ON. Ice pushes SaniSponge cleaning sponges through ice transport tube. Fig. 9 13. Place a sanitary (2 gal. or larger) container in bin or dispenser to collect SaniSponge cleaning sponges and ice for 10 minutes. 14.
- Page 11 Wiring diagram, evaporator unit Gearmotor data Resistance of windings 115 vac gearmotor (Brother): Gearmotor current 2.8A @ 115 V Gearmotor torque-out (high amp) trip point: 5.6A White to Black: 3Ω White to Red: 3Ω Red to Black: 6Ω Horizon Elite 1010/1410 Ice Machines (Remote Condensing)
- Page 12 Models AJA7490ZXDPN, AWA9513ZXDPN Single-phase condensing unit wiring diagram (Tecumseh) FAN 1 FAN 2 COMPRESSOR CONTACTOR COIL see note A RECEIVER TERMINAL HEATER BOARD HEATER THERMOSTAT POWER SUPPLY 230-60-1 POTENTIAL RELAY see note B COMPRESSOR CONTACTOR NC AUXILIARY SWITCH CRANK CASE HEATER COMPRESSOR CONTACTOR...
- Page 13 Models ASAFR9510ZNAMC1, 1010 Single-phase condensing unit wiring diagram (Tecumseh) Horizon Elite 1010/1410 Ice Machines (Remote Condensing)
- Page 14 Models ASFS9516ZNAMC1, 1410 Single-phase condensing unit wiring diagram (Tecumseh) Horizon Elite 1010/1410 Ice Machines (Remote Condensing)
- Page 15 Model AWA9490ZXTPN 3-phase condensing unit wiring diagram (Tecumseh) FAN 1 FAN 2 TO "Y-OUT" TO "230 VAC" AT PHASE AT PHASE MONITOR MONITOR COMPRESSOR D.T. TO "C" CONTACTOR AT PHASE COIL see note A MONITOR RECEIVER TERMINAL TERMINAL HEATER BOARD BOARD HEATER THERMOSTAT...
- Page 16 Models ASFR9511ZFAMC1, 1010 3-phase condensing unit wiring diagram (Tecumseh) Horizon Elite 1010/1410 Ice Machines (Remote Condensing)
- Page 17 3-phase condensing unit wiring diagram (Larkin) Horizon Elite 1010/1410 Ice Machines (Remote Condensing)
-
Page 18: Refrigeration System
Refrigeration system 1010 - Refrigerant pressure data Air-cooled condensers (air) 60 F/16 C 70 F/21 C 80 F/27 C 90 F/32 C 100 F/38 C Pressure (psig) discharge/suction 202/33 229/35 255/37 275/38 295/39 1410 - Refrigerant pressure data Air-cooled condensers (air) 60 F/16 C 70 F/21 C 80 F/27 C... -
Page 19: Refrigeration Charge
Note: Condensing unit shipped with 0.5 lb of R404A charge. Refrigerant replacement requirements 1. Non-contaminated refrigerant removed from any Follett refrigeration system can be recycled and returned to the same system after completing repairs. Recycled refrigerant must be stored in a clean, approved storage container. -
Page 20: Troubleshooting
Troubleshooting Ice machine disposition Possible causes Corrective action Legend: ON or OFF FLASHING Ice machine is in running 1. Defective compressor. 1. Replace compressor. condition but not making ice. 2. Defective start relay. 2. Replace start relay. 3. Defective start capacitor. 3. - Page 21 Warranty Registration and Equipment Evaluation Thank you for purchasing Follett Products LLC equipment. Our goal is to earn your complete satisfaction by delivering high-value products and services backed by outstanding customer and technical support. Please review the installation instructions thoroughly. It is important that the installation be performed to factory specifications so your equipment operates at its maximum efficiency.
- Page 22 Horizon Elite 1010/1410 Ice Machines (Remote Condensing)
- Page 23 Horizon Elite 1010/1410 Ice Machines (Remote Condensing)
- Page 24 Horizon Elite, Harmony, Ice Manager, Micro Chewblet, SafeCLEAN Plus, SaniSponge and Vision are trademarks of Follett Products LLC. Chewblet, RIDE and Follett are registered trademarks of Follett Products LLC, registered in the US. 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 •...
