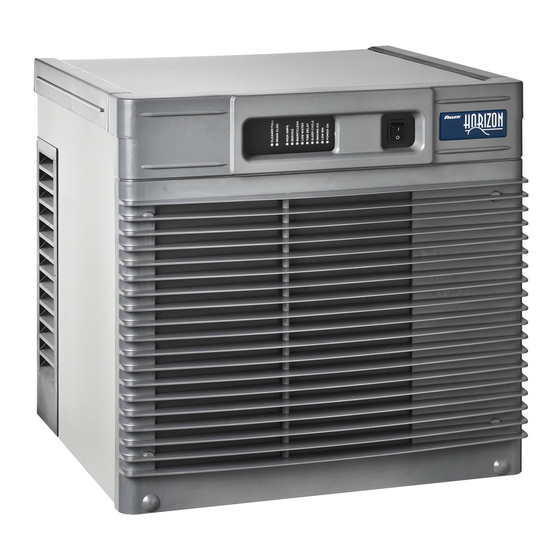

Follett Horizon Elite 710 Series Installation Instructions Manual
Hide thumbs
Also See for Horizon Elite 710 Series:
- Quick start manual (9 pages) ,
- Manual (8 pages) ,
- User manual (17 pages)
Table of Contents
Advertisement
Quick Links
Horizon Elite
H_D710AVS, H_E710AVS, H_C/H_E1010AVS, H_C/H_E1410AVS,
H_C/H_E1010WVS, H_C/H_E1410WVS,
(See model number configurator on page 2 for details.)
Order parts online
www.follettice.com
Ice Machine Models with RIDE
™
Installation Instructions for Vision
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Technology
™
™
01113208R04
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Follett Horizon Elite 710 Series
Summary of Contents for Follett Horizon Elite 710 Series
- Page 1 Horizon Elite Ice Machine Models with RIDE Technology ™ ™ Installation Instructions for Vision ™ H_D710AVS, H_E710AVS, H_C/H_E1010AVS, H_C/H_E1410AVS, H_C/H_E1010WVS, H_C/H_E1410WVS, (See model number configurator on page 2 for details.) Order parts online www.follettice.com 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 •...
- Page 2 Chewblet Ice Machine Model Number Configurations ® 1810 Application Configuration Icemaker Voltage Series Condenser MC Maestro™ C 208-230/60/1 (icemaking head) 425 up to A Air-cooled, self-contained V Vision™ S RIDE™ Self-contained only. 425 lbs Chewblet ® W Water-cooled, self-contained H Harmony™ (RIDE remote D 115/60/1 (icemaking head) (193 kg)
- Page 3 Read and complete the following 8 installation steps Unpack Site preparation Docking assembly Dispenser preparation Ice transport tube External connection Internal connection Front cover VISION • RIDE Technology self-contained...
-
Page 4: Unpack Ice Machine
Unpack Carefully unpack and inspect the contents of your Follett ice machine. Unpack ice machine ➋ ➌ ➊ ➎ ➍ 7/16" DO NOT TILT ICE MACHINE TO ACCESS BOLTS! COMPRESSOR DAMAGE 7/16" WILL RESULT ➐ ➏ VISION • RIDE Technology... -
Page 5: Prepare The Installation Site
• 10-70 psi (69-483 kpa) • 45 to 90 F (7 to 32 C) • Follett recommends the use of an in-line water filtration system (item# 00130286) • This equipment is to be installed with adequate backflow protection to comply with applicable... -
Page 6: Dispenser Preparation
Dispenser preparation Prepare the dispenser. Bin Signal Installation ➏ ➎ ➐ ➋ Ground ➌ ➊ 24" (610 mm) ➌ • Mount the electrical box to the side of the Vision dispenser ➊ to establish a ground connection. Note: If a 4 x 4 box is mounted to a non-grounded surface, connect ground wire at an appropriate ground. •... -
Page 7: Before Proceeding
Docking assembly Install the docking assembly. BEFORE PROCEEDING Prior to installing the docking assembly, ensure that the drain fitting is oriented (right or left) correctly for your installation. An optional straight drain fitting is also supplied. You may need to remove the back panel of the docking assembly in order to re-orient or change the drain fitting. - Page 8 Undercounter installation detail Front View Top View Access panel/ door on counter ➌ ➊ 2" (51 mm) ➍ 1010/1410: 2.25" (57 mm) 710: 2" (51 mm) bottom of ice machine side of ice machine 1010/1410: 2" (51 mm) 710: 3.25" (82.55 mm) CAUTION •...
-
Page 9: Ice Transport Tube
Ice transport tube Install the ice transport tube. Ice transport tube installation. ➋ Hot Water 160 F (71 C) ➎ ➍ ➏ ➐ ➊ 1/4" ➌ Ice transport tube tips • Insulate entire length of ice transport tube ➊ • Secure ice transport tube ➋... - Page 10 Dispenser ice transport tube installation Ice tube retainer bracket 1" (25mm) ice tube retaining bracket ice tube ice tube Front View Front View VU155 VU300 ice tube retaining bracket thermostat thermostat ice tube retaining bracket tabs in ice tube tabs in ice tube ice tube retainer bracket retainer bracket...
-
Page 11: External Connections
External connections Connect utilities to docking assembly. Air-cooled ice machines only Water-cooled ice machines only ➊ ➊ ➋ ➏ ➋ ➐ ➌ ➌ Minimum 8" ➏ Minimum 8" ➑ radius radius 2 ft. x 1" OD 2 ft. x 1" OD silicone tubing silicone tubing 3/4"... - Page 12 Chassis drain plumbing - required • Plug must be removed from John Guest fitting. • Route 3/8" drain tubing through knockout in back of docking station and insert fully into John Guest fitting connection at the rear of the machine chassis. Route other end of 3/8"...
-
Page 13: Internal Connections
Internal connections Connect docking assembly to ice machine. CAUTION • Plug must be accessible after final installation. • H_E1410A/W 230/50/1 requires a 20A circuit (4.00 mm wire) Air-cooled ice machines – follow steps 7.1 through 7.5. Water solenoid, shut-off valve, Ice transport tube and potable water line options If water solenoid is already mounted to... - Page 14 Water-cooled ice machines – follow steps 7.6 through 7.12. Cooling lines Set TDS switch HIGH CLEAN • Install ice machine cooling water lines to • Set the TDS switch on the electrical box: docking assembly HIGH: for extended service life LOW: for low-scale water Ice transport tube Water solenoid, shut-off valve,...
- Page 15 7.10 Power cord Cooling lines and power ➋ ➊ • Remove twist tie • Carefully pass cord through opening and • Connect cooling water lines to ice plug into wall outlet machine ➊ • For H_E units, install a suitable plug •...
-
Page 16: Front Cover
Front cover Install front cover to ice machine. Install front cover Front cover installation – air-cooled undercounter only ➊ ➋ ➋ ➌ ➊ ➌ • Slide ice machine cover over machine ensuring that tabs on back of cover slip under louvers on back of docking ➊... - Page 17 Long tube run recommendations max. 2 ft (.6m) ➊ 1/4" ➋ • Pitch ice transport tube to allow melt water to drain towards ice machine ➊ • Secure insulated ice transport tube at least every 2 ft (0,6 m) to prevent dips or traps ➋...
- Page 18 VISION • RIDE Technology self-contained...
- Page 19 VISION • RIDE Technology self-contained...
- Page 20 Maestro, Micro Chewblet, Vision, Harmony, Ice Manager, Horizon, Horizon Elite are trademarks of Follett Products LLC. Chewblet, RIDE, Follett are registered trademarks of Follett Products LLC. 801 Church Lane • Easton, PA 18040, USA 01113208R04 Toll free (877) 612-5086 • +1 (610) 252-7301 ©...
