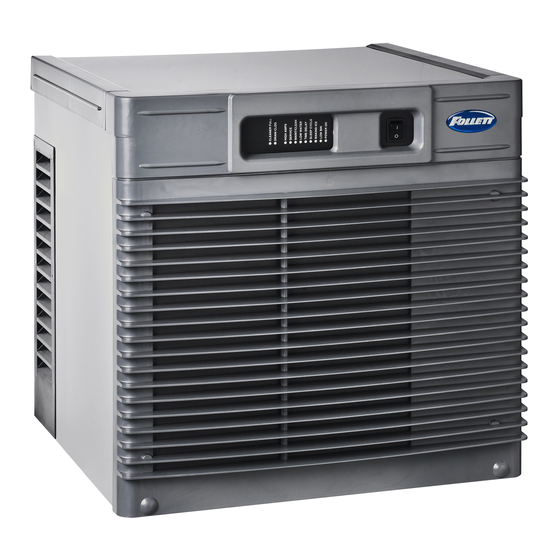

Follett Horizon Elite series Installation Instructions Manual
Hide thumbs
Also See for Horizon Elite series:
- Installation instructions manual (24 pages) ,
- Installation instructions manual (17 pages) ,
- Installation instructions manual (17 pages)
Table of Contents
Advertisement
HCD/HMD710AHT, HCC1010AHT, HCC1410AHT, HCC1010WHT, HCC1410WHT,
HMC1010AHT, HMC1410AHT, HMC1010WHT, HMC1410WHT,
HCE1010AHT, HCE1410AHT, HCE1010WHT, HCE1410WHT
HME1010AHT, HME1410AHT, HME1010WHT, HME1410WHT
(See model number configurator on page 2 for details.)
Order parts online
www.follettice.com
fit most countertop dispensers manufactured by
Horizon Elite
Horizon top-mount ice machines
Cornelius • Lancer • SerVend
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Ice Machine Installation Instructions
™
for Harmony
Top-mount Applications
™
self-contained
self-contained
01113323R02
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Follett Horizon Elite series
Summary of Contents for Follett Horizon Elite series
- Page 1 Horizon Elite Ice Machine Installation Instructions ™ for Harmony Top-mount Applications ™ HCD/HMD710AHT, HCC1010AHT, HCC1410AHT, HCC1010WHT, HCC1410WHT, HMC1010AHT, HMC1410AHT, HMC1010WHT, HMC1410WHT, HCE1010AHT, HCE1410AHT, HCE1010WHT, HCE1410WHT HME1010AHT, HME1410AHT, HME1010WHT, HME1410WHT (See model number configurator on page 2 for details.) Order parts online www.follettice.com self-contained self-contained...
- Page 2 Chewblet Ice Machine Model Number Configurations ® 1810 Application Configuration Icemaker Voltage Series Condenser MC Maestro™ C 208-230/60/1 (icemaking head) 425 up to A Air-cooled, self-contained V Vision™ S RIDE™ Self-contained only. 425 lbs Chewblet ® W Water-cooled, self-contained H Harmony™ (RIDE remote D 115/60/1 (icemaking head) (193 kg)
- Page 3 Read and complete the following 8 installation steps Unpack Site preparation Bin preparation Louvered docking assembly External connection Ice transport tube Internal connection Front cover HARMONY • TOP-MOUNT self-contained...
-
Page 4: Unpack Ice Machine
Unpack Carefully unpack and inspect the contents of your Follett ice machine. Unpack ice machine ➋ ➌ ➊ ➎ ➍ 7/16" DO NOT TILT ICE MACHINE TO ACCESS BOLTS! COMPRESSOR DAMAGE 7/16" WILL RESULT ➐ ➏ HARMONY • TOP-MOUNT self-contained... -
Page 5: Prepare The Installation Site
• 10-70 psi (69-483kpa) • 45 to 90 F (7 to 32 C) • Follett recommends the use of an in-line water filtration system (item# 00130286) • This equipment is to be installed with adequate backflow protection to comply with applicable... -
Page 6: Dispenser Preparation
Dispenser preparation Prepare the dispenser. Note: The instructions below only apply to 22" & 30" wide dispensers. 44" wide dispenser instructions may be found with the top kit. Top preparation – ALL Top preparation – ALL ➊ ➊ ➌ ➊ ➊... - Page 7 Top preparation – LANCER Agitation adjust. – CORNELIUS – — — Lancer models only Cornelius models ED, DB, DF, IDC and FLAVOR FUSION • Remove protective tape ➊ Adjust the agitation timer located on the Cornelius • Apply gaskets ➋ PC board to 1 second on, 1 hour off.
- Page 8 Agitation adjustments – LANCER FS SERIES Initialization Screen (Boot Up Only) Lancer FS-16 Ver. 0.200 – Main Menu Sub-Catagory FS-16 Setup Brands Per Side Major/Minor V:1 L:2 R:1 FS-16 Setup Bonus Key Setup Config Bonus Key V:1 T:F M:S B:W FS-16 Setup Soda/Plain Water Cancel...
- Page 9 3.11 Dispenser diverter plate overview (Installation on next page) Single Agitator P/N 307277 — Diverter plate (single agitator Cornelius dispensers and left-hand dispense chute on dual-agitator Cornelius dispensers) Dual Agitator P/N 307277 — Diverter plate (single agitator Cornelius dispensers and left-hand dispense chute on dual-agitator Cornelius dispensers) P/N 00996207 —...
- Page 10 3.12 Dispenser diverter plate installation – CORNELIUS ED, DF and DB SERIES GATE MOUNTING PLATE STORAGE HOPPER FLANGE EXTENDS INTO STORAGE HOPPER THROUGH GATE OPENING ICE DIVERTER ICE CHUTE COVER APPLY RTV TO THIS SURFACE TO SEAL TO HOPPER GATE MOUNTING PLATE 10-32 WASHER GASKET...
-
Page 11: Before Proceeding
Louvered docking assembly Install the louvered docking assembly. BEFORE PROCEEDING Prior to installing the louvered docking assembly, ensure that the drain fitting is oriented (right or left) correctly for your installation. An optional straight drain fitting is also supplied. You may need to remove the back panel of the docking assembly in order to re-orient or change the drain fitting. -
Page 12: Ice Transport Tube Installation
Ice transport tube Install the ice transport tube. Ice transport tube installation Hot Water 160 F (71 C) ➊ ➋ ➌ • Install supplied ice transport tube insulation • Heat end of transport tube in cup of 160 F (71 C) hot water to soften and spread with pliers ➊... -
Page 13: External Connections
External connections Connect utilities to louvered docking assembly. Air-cooled ice machines only Water-cooled ice machines only ➊ ➊ ➏ ➋ ➋ ➐ ➌ ➌ Minimum 8" ➑ Minimum 8" ➏ radius radius 2 ft. x 1" OD 2 ft. x 1" OD silicone tubing silicone tubing 3/4"... -
Page 14: Internal Connections
Internal connections Connect louvered docking assembly to ice machine. CAUTION • Plug must be accessible after final installation. • H_E1410A/W 230/50/1 requires a 20A circuit (4.00 mm wire) Air-cooled ice machines – follow steps 7.1 through 7.5. Ice transport tube Potable water and drain lines ➋... -
Page 15: Tds Switch
Water-cooled ice machines – follow steps 7.6 through 7.12. Cooling lines TDS switch HIGH CLEAN • Set the TDS switch on the electrical box: • Install ice machine cooling water lines to louvered docking assembly HIGH: for extended service life LOW: for low-scale water Potable water and drain lines Ice transport tube... - Page 16 7.10 Cooling lines and power Power cord ➋ ➊ • Remove twist tie • Carefully pass cord thru opening and plug • Connect cooling water lines to ice into wall outlet machine (Water "Out" connects to water • For HCE/HME units, install a suitable plug ➊...
-
Page 17: Front Cover
Front cover Install front cover to ice machine. Install front cover ➋ ➌ ➊ • Slide ice machine cover over machine ensuring that tabs on back of cover slip under louvers on back of louvered docking assembly ➊ • Insert and tighten two screws through cover and into louvered docking assembly ➋... - Page 18 Long tube run recommendations max. 2 ft (0,6m) ➊ ➋ 1/4" (6,4mm) 1' (0,3m) ➊ • Pitch ice transport tube to allow melt water to drain towards ice machine ➋ • Secure insulated ice transport tube at least every 2 ft (0,6m) to prevent dips or traps HARMONY •...
- Page 19 HARMONY • TOP-MOUNT self-contained...
- Page 20 Horizon, Horizon Elite, Maestro, Harmony, Ice Manager, SafeCLEAN, Sani-Sponge and Vision are trademarks of Follett LLC. Chewblet, RIDE and Follett are registered trademarks of Follett LLC, registered in the US. 801 Church Lane • Easton, PA 18040, USA 01113323R02 Toll free (877) 612-5086 • +1 (610) 252-7301 ©...
