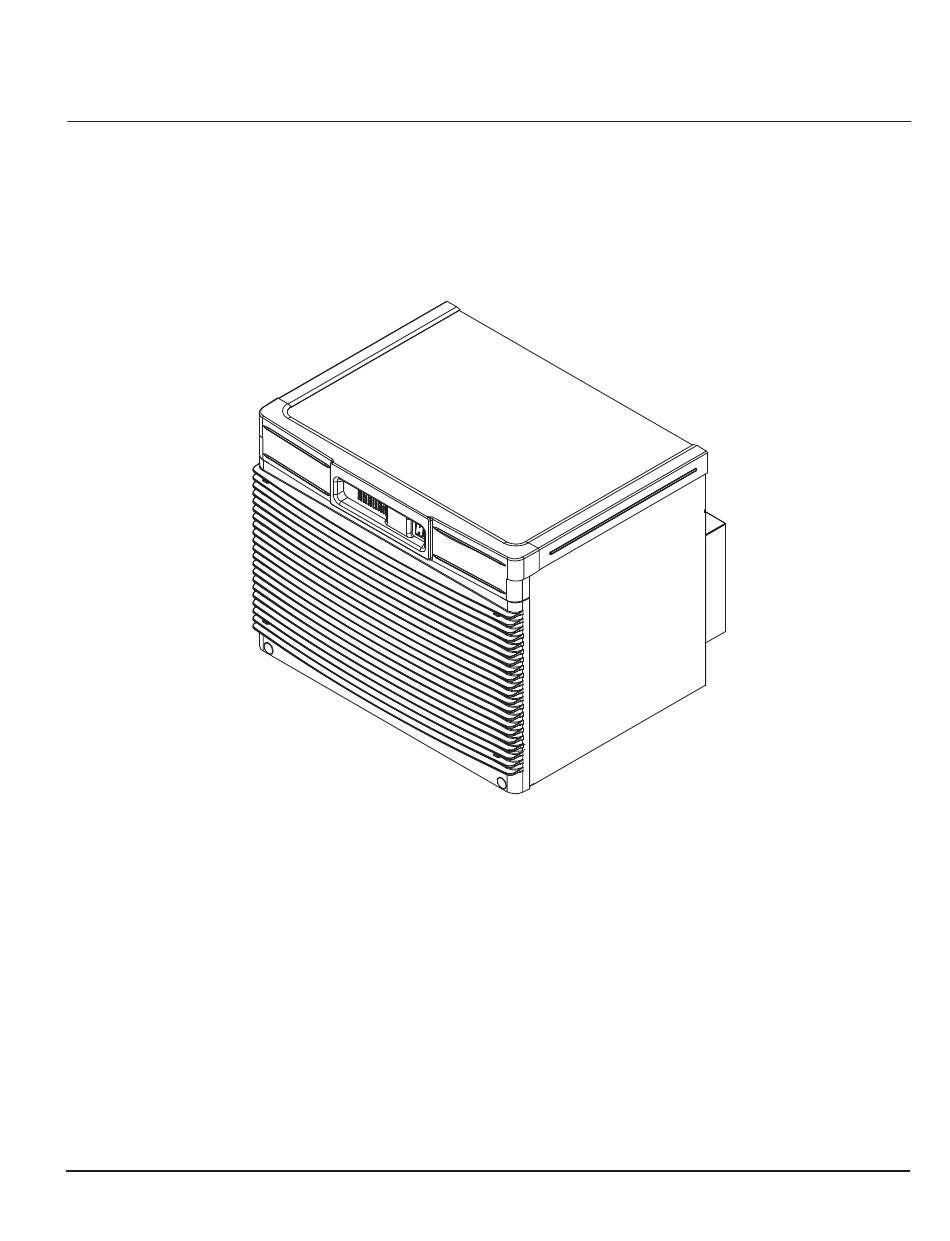

Horizon Elite™ 1010/1410 Ice Machines (Self-contained)
Welcome to Follett
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding
after-the-sale support. To ensure that this equipment delivers that same degree of service, review this guide
carefully before you begin your installation.
Should you need technical help, please call our Technical Service group at (877) 612-5086 or (610) 252-7301.
Please have your model number, serial number and complete and detailed explanation of the problem when
contacting Technical Service.
Getting Started
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. All freight
is to be inspected upon delivery. If visible signs of damage exist, please refuse delivery or sign your delivery receipt
"damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed
photos of the damage with the original packaging so that we may start the freight claim process.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
After Serial Number R03746
Please visit www.follettice.com/technicaldocuments
for the Operation and Service manual for your unit.
50 Hz and 60 Hz
User Guide
HCC/HMC 1010/1410 A/W
HCE/HME 1010/1410 A/W
Installation and Service Videos:
www.follettice.com/servicevideolibrary
01266568R07
Advertisement
Table of Contents
Related Manuals for Follett HCE1410A
Summary of Contents for Follett HCE1410A
- Page 1 If visible signs of damage exist, please refuse delivery or sign your delivery receipt "damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed photos of the damage with the original packaging so that we may start the freight claim process.
-
Page 2: Specifications
§ This appliance must not be cleaned by a water jet. § User maintence should not be done by children. § Follett recommends a Follett water filter system be installed in the ice machine inlet water line (standard capacity #00130229, high capacity #00978957, carbonless high capacity #01050442). - Page 3 Flush drain plumbing § 3/4" MPT flush drain connection at the rear of the machine. § Drain must slope 1/4" per foot (6 mm per 30,4 cm). § Drain line should not be shared with any other piece of equipment. §...
-
Page 4: Heat Rejection
Ambient Air temperature 100 F/38 C max. 50 F/10 C min. Water temperature 90 F/32 C max. 45 F/7 C min. Water pressure – potable 70 psi max. (483 kPa) 10 psi min. (89 kPa) Heat rejection 1010 1410 Air-cooled 11,300 BTU/hr 16,000 BTU/hr Water-cooled... -
Page 5: Dimensions And Clearances
1010/1410 50 Hz R449A Details 1010/1410 Air-cooled ice machine capacity/24 hrs. Ambient Air Temperature F/C Dimensions and clearances § Entire front of ice machine must be clear of obstructions/connections to allow removal. § 1" (26 mm) clearance above ice machine for service. §... - Page 6 1410 ONLY 1410 ONLY ICE MAKER TOP VIEW D (1410 ONLY) ICE MAKER FRONT VIEW C (1410 ONLY) ICE MAKER SIDE VIEW AIR EXHAUST ICE TRANSPORT HOSE CONNECTION A 22.51" (57.2 cm) B 22.48" (57.1 cm) C 25.15" (56.3 cm) D 2.66"...
-
Page 7: Cleaning/Sanitizing And Preventive Maintenance (All Models)
Note: Do not use bleach to sanitize or clean the icemaker. Preventive maintenance Periodic cleaning of Follett’s icemaker system is required to ensure peak performance and delivery of clean, sanitary ice. The recommended cleaning procedures that follow should be performed at least as frequently as recommended, and more often if environmental conditions dictate. - Page 8 Fig. 2 2. Follow the directions on the SafeCLEAN Plus packaging to mix 1 gal. (3.8 L) of Follett SafeCLEAN Plus solution. Use 120 F (49 C) water. 3. Using a 1 quart (1 L) container, slowly fill cleaning cup until CLEANER FULL light comes on and cleaner just begins to flow from the vent tube.
- Page 9 Fig. 5 7. Disconnect coupling as shown. Fig. 6 8. Using disposable foodservice grade gloves, insert both SaniSponge cleaning sponges saturated in SafeClean Plus (from Step 4). 9. Push both SaniSponge cleaning sponges down ice transport tube with supplied pusher tube. Fig.
- Page 10 Fig. 8 11. Reconnect coupling. Press power switch ON. Ice pushes SaniSponge cleaning sponges through ice transport tube. Fig. 9 12. Place a sanitary (2 gal. or larger) container in bin or dispenser to collect SaniSponge cleaning sponges and ice for 10 minutes after the Sani-Sponges come out.
-
Page 11: Wiring Diagram
Wiring diagram Horizon Elite 1010/1410 Self-Contained (50 Hz and 60 Hz) -
Page 12: Compressor Data
Refrigeration Compressor data HCE/HME (50 Hz) HCC/HMC (60 Hz) 1010 1410 1010 1410 Compressor current draw at 208-230 VAC, 90 F/32.2 C 12.1A 6.9A 12.1A Locked rotor amps@ 208-230 V - Tecumseh 40.6A Locked rotor amps@ 208-230 V - Copeland 40.3A 40.3A Compressor start winding (208-230 V) - Page 13 1410 - Refrigerant pressure data Air-cooled condensers (air) 60 F/16 C 70 F/21 C 80 F/27 C 90 F/32 C 100 F/38 C Pressure (psig) discharge/suction 235/27 275/30 315/32 355/35 395/37 System Operating Pressures (Discharge/Suction) PSIG Potable Water F/C 50/10 60/16 70/21 80/27...
- Page 14 R404A Refrigerant replacement requirements 1. Non-contaminated refrigerant removed from any Follett refrigeration system can be recycled and returned to the same system after completing repairs. Recycled refrigerant must be stored in a clean, approved storage container. If additional refrigerant is required, virgin or reclaimed refrigerant that meets ARI standard 700-88 must be used.
- Page 15 Ice capacity test Ice machine production capacity can only be determined by weighing ice produced in a specific time period. 1. Replace all panels on ice machine. 2. Run ice machine for at least 15 minutes. 3. Weigh and record weight of container used to catch ice. 4.
-
Page 16: Troubleshooting
Troubleshooting Ice machine disposition Possible causes Corrective action Legend: ON or OFF FLASHING Ice machine is in running 1. Defective compressor. 1. Replace compressor. condition but not making ice. 2. Defective start relay. 2. Replace start relay. 3. Defective start capacitor. 3. - Page 17 Warranty Registration and Equipment Evaluation Thank you for purchasing Follett equipment. Our goal is to earn your complete satisfaction by delivering high-value products and services backed by outstanding customer and technical support. Please review the installation instructions thoroughly. It is important that the installation be performed to factory specifications so your equipment operates at its maximum efficiency.
- Page 18 Horizon Elite 1010/1410 Self-Contained (50 Hz and 60 Hz)
- Page 19 Horizon Elite 1010/1410 Self-Contained (50 Hz and 60 Hz)
- Page 20 Horizon Elite, SafeCLEAN Plus and SaniSponge are trademarks of Follett Products, LLC Follett is a registered trademark of Follett Products, LLC, registered in the US. 801 Church Lane • Easton, PA 18040, USA 01266568R07 Toll free (877) 612-5086 • +1 (610) 252-7301 ©...
