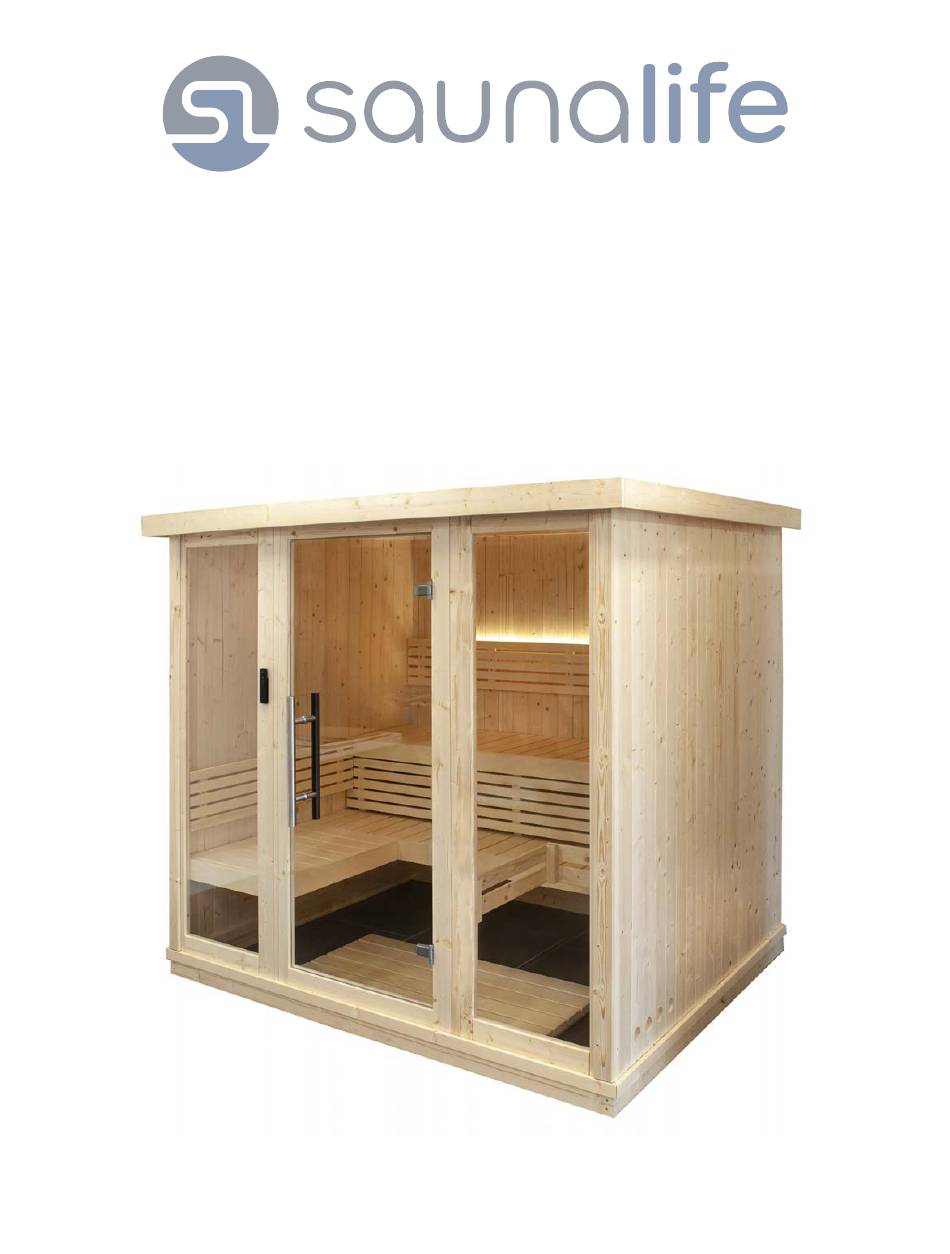

- Page 1 Model X7 Sauna Room Installation Manual saunalife.com 800.957.2862...
- Page 2 8 a.m. - 5 p.m. Central, M-F. Your SaunaLife X7 sauna is specifically designed to utilize your existing floor. As such, assembly is made very simple since the entire sauna sits on pre-fabricated rails and risers. Your sauna can be assembled on any surface that is firm and flat, including concrete, ceramic, vinyl, laminate or tile.
- Page 3 Window element (qty. 2) Side wall 2 (qty. 1) Side wall 3 (qty. 1) May be configured left Bench (qty. 1) or right-handed Lower bench (qty. 1) Door element (qty. 1) Backrest 1 (qty. 1) Backrest 2 (qty. 1) Roof 1 (qty. 1) Backrest 3 (qty.
- Page 4 3.5 x 35mm (.13” x 1.37”) Level 3.5 x 25mm (.13” x .98”) Step stool or ladder 3 x 20mm (.11” x .78”) Framing square Vent Cover Washer Door handle (qty. 1) Tenon X7 Sauna Model saunalife.com Installation & Owner’s Manual 800.957.2862...
- Page 5 Use a framing square to ensure that the assembly is square. Floor Raiser 1 Pre-drill holes for the screws Floor Raiser 2 Floor Raiser Screws 4.5 x 80 Floor Raiser 2 saunalife.com 800.957.2862...
- Page 6 STEP 2. Connect Wall Support Rails Each wall support has a pre-drilled slot for the Tenon. Insert the Tenons in the longer support rail slots. Fasten Tenon the Wall Support Rails together and connect from corners using four 3 x 20 screws per corner. Support Rail 1 Support Rail 2 Support Rail 1...
- Page 7 Lay the wall support rail assembly squarely on top of the floor risers with the groove facing up. The rails should overlap both sides of the riser by approximately 0.5”. Secure the assembly to the floor risers using four 4 x 50 screws evenly spaced on each wall support rail. Screws 4 x 50 saunalife.com 800.957.2862...
- Page 8 STEP 4. Position Wall Sections (Back Wall 1 & Side Wall 1) Position Back Wall 1 in the groove of the back rail and push it flush against the left rail. Have a helper hold the back wall section. Orient Side Wall Section 1 and place it in the groove of the left rail.
- Page 9 Position Side Wall Section 1 into the groove of the right side rail and push flush against the back wall. Be sure panels are flush with each other and fasten them together using the 4.5 x 70 screws. Side wall 1 Back wall 2 Back wall 3 Screws 4.5 x 70 saunalife.com 800.957.2862...
- Page 10 STEP 6. Position Side Wall Section 2, Window Section & Door Element Position Side Wall Section 2 into the groove of the side rail. Slide Side Wall Section 2 into place with Side Wall Section 1. Section 2 connects to Section 1 via tongue and groove so there is no need to use screws. Use a rubber mallet to secure the fit.
- Page 11 STEP 7. X7 Sauna Model Installation & Owner’s Manual Position Window Section & Side Wall Section 3 Position Side Wall Section 3 into the groove of the Side Rail orienting it so that the heater vent holes are located at the bottom. Slide the wall section into place with Side Wall section 1.
- Page 12 Connect Roof Support Rails in the same way as Step 2. Place the assembly on top of the wall sections so that the wall sections fit snugly into the groove. When in place, secure to the assembly to the walls using four 4 x 50 screws on each rail. Screws 4.5 x 70 Roof support rail saunalife.com 800.957.2862...
- Page 13 STEP 9. Bench & Lower Bench Installation Use 4.5 x 70 screws to connect the Bench Supports to the wall. Make sure the supports in both walls are the same height. When the supports are assembled, place the benches on the supports.
-
Page 14: Backrest Installation
Use 4.5 x 70 screws to connect the Bench Supports to the wall. Make sure the supports in both walls are the same height. When the supports are assembled, place the benches on the supports. Use three 4.5 x 70 screws to connect the Seat Bench to the Back Wall. Step 1 Screws 4 x 60 saunalife.com 800.957.2862... - Page 15 Backrest Step 2 Screws 3.5 x 25 Backrest vertical slat Screws 3.5 x 35 saunalife.com 800.957.2862...
- Page 16 4 x 60 screws. Support must be in the same height with lower bench. Place the Side Bench on the supports and fasten with two 4.5 x 70 screws to the side wall element. Pre-drill holes for the screws Screws 4.5 x 70 Side bench support 1 saunalife.com 800.957.2862...
- Page 17 X7 Sauna Model Installation & Owner’s Manual Screws 4.5 x 70 Side bench support 2 Screws 4.5 x 60 saunalife.com 800.957.2862...
- Page 18 From the backside, roof panels must be in the same line with ceiling supports. Position both sides equally. Connect panels with 4 x 50 screws. Roof section 2 Roof section 1 Screws 4 x 50 Pre-drill holes for the screws saunalife.com 800.957.2862...
- Page 19 STEP 13. Cornice Boards Connect the cornice boards to the roof using 3.5 x 40 screws. Cornice Board 1 Cornice Board 2 Cornice Board 2 Screws 3.5 x 40 X7 Sauna Model saunalife.com 800.957.2862 Installation & Owner’s Manual...
- Page 20 STEP 14. Vent Cover & Door Handle Connect vent cover with 3.5 x 40 screw. Add a small washer between the wall & vent cover. Washer saunalife.com 800.957.2862...
- Page 21 STEP 15. Heater Fence Connect the Heater Cover to the wall with Pre-drill holes 4 x 60 screws. Perform this step after for the screws heater is installed. Note: Follow heater manufacturer recommended installation for heater guard. Screws 3.5 x 60 STEP 16.
