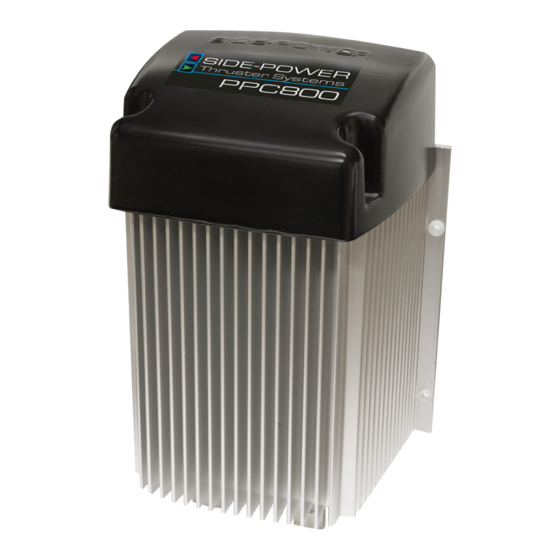

- Page 1 PPC 800 SIDE-POWER Thruster Systems Installation and user's manual Installasjons og brukermanual SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Tel: +47 69 30 00 60 w w w . s i d e - p o w e r . c o m...
-
Page 2: Planning And Important Precautions
If you are installing the Side-Power in a small room /compartment, it should be ventilated to ensure cooling of the electromotor. If the height in the room you are installing the Side-Power is limited, the Side-Power can be installed horizontally or at any angle in between. -
Page 3: Electrical Installation
• Det anbefales å bruke Side-Power automatisk hovedstrømbryter • It is highly recommended to install a Side-Power Automatic Main 897712 (12V) eller 897724 (24V).Denne aktiveres når panel slås på, Switch 897712 (12V) eller 897724 (24V). The AMS will be activated og har også... -
Page 4: Control Panel And Control-Leads
• When using original Side-Power equipment it is all “plug & go”. • If the drive direction of the thruster is the opposite of what expected, the blue and grey wire must be changed on the thruster solenoid. -
Page 5: Important User Precautions
Important user precautions Viktige brukerforebehold • Forviss deg om at du kjenner plasseringen av hovedstrømsbryteren • Ensure that you know the location of the main battery switch that disconnects the thruster from all power sources (batteries) so that som kutter all strøm til thrusteren, så thrusteren kan skrus av i nød- the thruster can be turned off in case of a malfunction. -
Page 6: How To Use Side-Power Thrusters
1. Skru på hovedstrømmen (skru alltid av hovedstrømmen når du ikke er the main power switch when not on board.) A Side-Power Automatic om bord i båten). En Side-Power Automatic Main Switch slås på / av Main Switch will turn on/off when the panel is turned on/off. -
Page 7: Troubleshooting
Trouble shooting Before seeking assistance at the help desk of your Side-Power dealer/distributor please perform these tests and make notes of all measurements to ensure that they have as much information as possible to work on. NB! All check points and solutions must be carried out after consulting the relevant information elsewhere in this manual to under- stand how the system is intended to work. -
Page 8: Warranty Statement
Warranty statement 1. The equipment manufactured by Sleipner Motor AS (The “Warrantor”) is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period. - Page 9 MEASUREMENTS NB: Drawing NOT in scale! (1:1 drilling template on next page) 178,6 Ø3,5 (wood) Ø4 (GRP) PPC800 1.0.0-2010...
-
Page 10: Drilling Template
Drilling template 1:1 178,6 Ø3,5 (wood) Ø4 (GRP) PPC800 1.0.0-2010... - Page 11 SERVICE PPC800 1.0.0-2010...
-
Page 12: Service Centres
Tel: +385 51 704 500 Sleipner Motor AS Fax: +385 51 704 600 acy@net.hr Sleipner Motor AS • P. O. Box 519, N-1612 Fredrikstad • Norway Tel: +47 69 30 00 60 • Fax: +47 69 30 00 70 • sidepower@sleipner.no • www.side-power.com...
