SIDE-
POWER
Installation and user manual
SLEIPNER MOTOR AS
P.O. Box 519
N-1612 Fredrikstad
Norway
Tel: +47 69 30 00 60
Fax: +47 69 30 00 70
Ignition Protected
thruster assembly
w w w . s i d e - p o w e r . c o m
s i d e p o w e r @ s l e i p n e r. n o
© Sleipner Motor AS version 1.0 - 2007

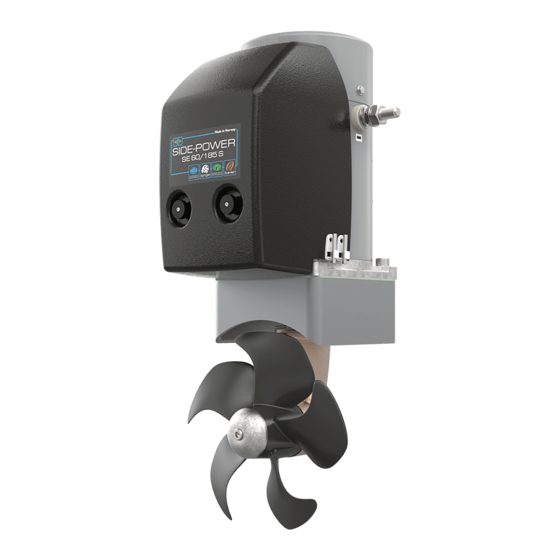

SE 60/185 S
Advertisement
Table of Contents
Related Manuals for Side-Power SE 60/185 S
Summary of Contents for Side-Power SE 60/185 S
- Page 1 ® SIDE- SE 60/185 S Ignition Protected POWER thruster assembly Installation and user manual SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Tel: +47 69 30 00 60 w w w . s i d e - p o w e r . c o m Fax: +47 69 30 00 70 s i d e p o w e r @ s l e i p n e r.
-
Page 2: Table Of Contents
Contents Contents Technical specifications ............2 Technical specifications ............. 2 Planning & important precautions ......... 3 Planning & important precautions..........3 DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY Stern thruster installation considerations ......3 Stern thruster installation considerations........3 We, Sleipner Motor AS Bolt on installation .............. -
Page 3: Planning And Important Precautions
Planning and important precautions Prior to installation, it is important that the installer reads this guide to ensure necessary acquaintance with this product. The electromotor assembly must be handled carefully. Do not lift it by the internal connections or put it down on the driveshaft. Beware to keep installation within adviced measurements. -
Page 4: Bolt On Installation
SEALANT Fig. 1 Fig. 2 WASHERS LOCKNUT OR DOU- BLE NUTS SEALANT Bolt on installation of the stern tunnel 1. Make sure that there are enough space both inside and out- 6. Refer to the installation manual for the recommended thruster side the transom of the boat. -
Page 5: Mould On Installation
Fig. 1 Fig. 2 Grind off the bolt flange and Bond multiple layers both in- the gelcoat both inside and out- side and outside side in the areas shown. Boat transom Boat transom Stern tunnel Mould on installation of the stern tunnel 1. -
Page 6: Gearhouse And Motorbracket
Fig. 1 Fig. 2 Bolt tightening forces: Bolts (2x) holding gearhouse to bracket: 17 Nm (12,4 lb/ft) Fitting gearhouse and motor bracket Fitting gearhouse and motor bracket 1. Try the lower-unit in the tunnel (remove the zinc anode) first by using the gasket inside the tunnel. Try on the propeller to make sure 1. -
Page 7: Oil Tank & Propellers
Fig. 1 Locktite Fitting propellers 1. Turn the propeller shaft so that the drivepin (5) is in a horizontal position and ensure that it is centred in the propellershaft. 2. Push the propeller onto the shaft with the track for the drivepin in an horizontal position (same direction as you set the drivepin), all the way in. -
Page 8: Electromotor Ip Assembly
Fig. 2 Fig. 1 Fitting the electromotor IP assembly Remove the 4 bolts in the motorbracket (Fig 1). Use the enclosed template to measure taht the driveshaft has come through the motorbracket with the correct hight (Fig 2). Place the motor assembly gently on the motorbracket. Make sure that the drive pin in motor drive shaft fits the into the corresponding grove in the gearleg shaft. -
Page 9: Electrical Installation
Counter Nut Washer Cable terminal Washer Counter Nut Washer Battery 12V or 24V Table for selection of main cable, Battery & cable recommendations: battery, fuse and main-switch up to 7m total & 8 - 11m total & 12 - 15m total &... -
Page 10: Control Panel And Control-Leads
Pin configuration in contacts SIDEPOWER SIDEPOWER THRUSTER THRUSTER SLEIPNER SLEIPNER Control panel and control-leads Control panel and control-leads • • You can install as many panels as you wish by using optional Y-connectors. If two or more panels are operated at the same time in You can install as many panels as you wish by using optional Y-connectors. -
Page 11: "Visual" Wiring Diagram
"Visual" wiring diagram "Visual" wiring diagram SE 60/185S ignition protected thruster assembly SP55S2i ignition protected thruster assembly 1.0 - 2007 1.1 - 2006... -
Page 12: Technical Wiring Diagram
Technical wiring diagram 4 pin Motor connector Fused blue red (+) inside 1A (sig -) blue (sig +) Electronic interface box 6 1232i white black (-) grey (sig +) grey (sig -) black brown Battery Fuse main Thermal switch switch Electrical installation of stern thruster systems We advice to use different battery banks for each thruster to ensure maximum performance when both are used at the same time. -
Page 13: Checklist
Checklist Propeller is fastened correctly to the shaft. Propeller turns freely in tunnel. The zinc-anode holding screw is tightened well with thread glue. There is a sturdy additional support under the electric motor, taking the weight load of the electromotor assembly away ... -
Page 14: Important User Precautions
Important user precautions Ensure that you know the location and how to operate the main battery switch and that disonnects the thruster from all power sources (batteries) so that the thruster can be turned off in case of a malfunction. ... -
Page 15: How To Use Sidepower Thrusters
To turn panel ON Turn boat to port Bow+Stern Thruster To turn panel OFF Turn boat to starboard How to use Sidepower thrusters How to use a bowthruster How to use a bowthruster 1. Turn main power switch for the bowthruster on. (Always turn off the main power switch when not onboard.) 1. -
Page 16: Maintenance
Electromotor assembly Glassfibre reinforced lexan propeller for ultimate performance. Pre-filled lifetime lubricated gearhouse. Changeable zincanode protects gear- house from corrosion in seawater. Fastening screw for zincanode Locktite Zincanode Propeller lock nut Washer Drivepin for propeller Maintenance » Keep the propeller and gearhouse clean from growth by painting with antifouling before every season. PS ! The zinc anode, sealing and propeller shafts must abso-lutely not be painted. -
Page 17: Troubleshooting
Troubleshooting Before seeking assistance at the help desk of your Sidepower dealer / distributor please perform these tests and make notes of all measurements to ensure that they have as much information as possible to work on. NB! All check points and solutions must be carried out after consulting the relevant information elsewhere in this manual to under- stand how the system is intended to work. -
Page 18: Warranty Statement
Warranty statement 1. The equipment manufactured by Sleipner Motor AS (The “Warrantor”) is warranted to be free from defects in workmanship and mate- rials under normal use and service. 2. This Warranty is in effect for of two years from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period. -
Page 19: Parts List
SE 60/185S IP SP 55 S2i SE 60/185S ignition protected thruster assembly 1.0 - 2007 SP 30 S2i / SP 40 S2 i/ SP 55 S2i 3.7 - 2006... -
Page 20: Service Centres
Tel: +385 51 704 500 Sleipner Motor AS Fax: +385 51 704 600 acy@net.hr Sleipner Motor AS • P. O. Box 519, N-1612 Fredrikstad • Norway Tel: +47 69 30 00 60 • Fax: +47 69 30 00 70 • sidepower@sleipner.no • www.side-power.com...
