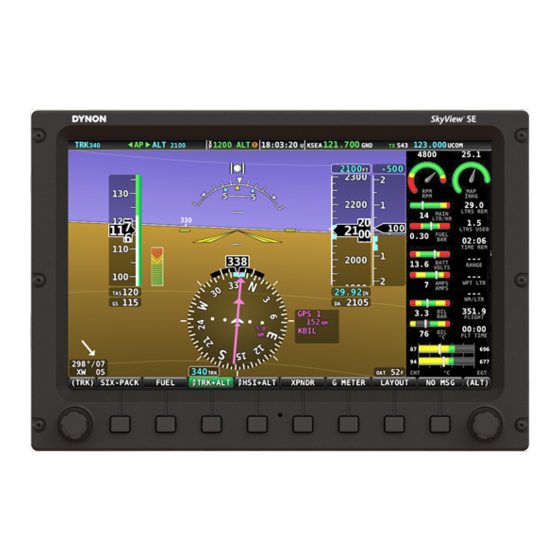

Dynon SkyView SE Pilot's User Manual
Hide thumbs Also See for SkyView SE:
Table of Contents

Advertisement

Quick Links

SkyView SE
Pilot's User Guide
This product is not TSO'd and cannot be installed into traditional FAA Part 23 and similarly type-
certificated aircraft.
Document 102824-000, Revision I
For use with software version 16.5
June 2023
Copyright © 2023 by Dynon Avionics, Inc.
Permission to print this manual is granted to third parties.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SkyView SE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dynon SkyView SE

  • Page 1 This product is not TSO’d and cannot be installed into traditional FAA Part 23 and similarly type- certificated aircraft. Document 102824-000, Revision I For use with software version 16.5 June 2023 Copyright © 2023 by Dynon Avionics, Inc. Permission to print this manual is granted to third parties.
  • Page 2 Information in this document is subject to change without notice. Dynon Avionics reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes.
  • Page 3 DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. Dynon Avionics retains the exclusive right to repair or replace the instrument or Software or offer a full refund of the purchase price at its sole discretion.
  • Page 4 • Added Transponder Errors subsection to Section 9. System Software Version 16.4.4: • Added Trim Yaw Left/Right alerts to Section 7: Autopilot Operation January, 2023 and Section 9: Message, Caution, and Warning Alerting System. SkyView SE Pilot’s User Guide - Revision I...
  • Page 5 • Added ULPower 520T Behavior subsection to Section 5 for 520T June, 2023 engine support. • Added Twin Engine Monitoring subsection to Section 5 for twin- engine monitoring support. Table 1 – SkyView SE Pilot's User Guide Revision History SkyView SE Pilot’s User Guide - Revision I...
  • Page 6: Table Of Contents

    Timers ................................... 5-6 Fuel Computer ............................... 5-7 Twin Engine Monitoring ............................5-9 6. Transponder Operation Transponder Status ............................... 6-1 Transponder Sub-Menu ............................6-3 Reported Pressure Altitude ........................... 6-5 ADS-B OUT Transmissions ............................6-5 SkyView SE Pilot’s User Guide - Revision I...
  • Page 7 8. COM Radio Operation Top Bar COM Radio Status Overview ........................8-2 Using your COM Radio ............................8-2 Loading Airports to the SkyView SE Com Radio ...................... 8-6 Using the TWR, ATIS, GND, and ATC Buttons ......................8-8 Aviation Database ..............................8-9 Other Status Information .............................
  • Page 8 This page intentionally left blank. viii SkyView SE Pilot’s User Guide - Revision I...
  • Page 9: Introduction

    Reference the electronic version of this guide to view it in color. Before You Fly We strongly recommended that you read this entire guide before attempting to use SkyView SE in an actual flying situation. Additionally, we encourage you to spend time on the ground familiarizing yourself with the operation of the system.
  • Page 10 SE training and feature videos. These videos help new owners quickly learn the basics so they can safely start flying with the system. Also, current SkyView / SkyView SE owners can gain in-depth knowledge of many of the more advanced or complex features.
  • Page 11: System Overview

    VFR aircraft, especially those transitioning from familiar “steam gauges”. This chapter provides a general overview of the various parts of SkyView SE as well as a theory of operation. The information in this chapter serves as a reference only and helps familiarize you with the inner workings of the units.
  • Page 12 Each SkyView SE display ships with a USB flash drive for use in these instances. Note that only one USB flash drive memory stick can be connected to a SkyView SE display at a time.
  • Page 13: Adahrs-200/201

    Data Logging SkyView SE displays with Software version 14.1 or higher have the ability to record and store flight information in two logs for export by the user. The User Data Log recording rate can be configured by the user in the SkyView Setup Menu. For more information on configuration, retrieval, and analysis see the SkyView Classic / SE / HDX System Installation Guide .
  • Page 14: Mag-236

    The SkyView SE artificial horizon display (attitude) is generated via a complex algorithm using a multitude of sensors as described in Table 2. In normal operation SkyView SE uses airspeed to provide superior attitude accuracy. Should airspeed become unavailable due to inadvertent pitot icing, GPS ground speed will be used as an attitude aid.
  • Page 15: Ems-220

    The SV-BAT-320 Backup Battery is an optional backup battery for use with SkyView SE. It can power a typical SkyView SE display and most of its connected modules for at least 60 minutes in the event of failure of the aircraft electrical system.
  • Page 16: Com Radios - Sv-Com-760, -T25/T8, -425 And Sv-Com-Panel

    COM-T25 and SV-Com-T8 are designed for 12V and 24V aircraft power. SV-INTERCOM-2S A two-place stereo intercom that is designed to pair perfectly with your SkyView SE system and SkyView COM Radio. It has stereo inputs for SkyView SE, stereo music, and multiple other mono muting and non-muting inputs for all the technology in your cockpit.
  • Page 17: Button-Level

    If your aircraft’s trim motor(s) exceeds a current draw of 2 amps, then an SV-AP-TRIMAMP Trim Motor Adapter is required to operate the Auto-Trim feature. Be advised that the SV-AP-PANEL's buttons are not compatible with SkyView SE. However, an SV-AP-PANEL may be installed, possibly behind the panel "in the blind"...
  • Page 18 System Overview This page intentionally left blank. SkyView SE Pilot’s User Guide - Revision I...
  • Page 19: D600 And Sv-D900 Operation

    3. SV-D600 and SV-D900 Operation After reading this chapter, you should be familiar with basic SkyView SE display operation. For details regarding specific procedures (e.g., adjusting the barometer), refer to the PFD and EMS operation chapters. The SkyView SE SV-D600 and SV-D900 displays are identical in functionality and presentation.
  • Page 20 Joystick and button labels are also on the screen as seen in Figure 1. SkyView SE’s simplified feature set and menu system assures that most menu buttons have a single dedicated function.
  • Page 21: Joystick And Button Operation

    A button has a function if there is a label above it. If there is no label, there is no function. The figure below shows an example button label. Figure 4 – Example Button Label SkyView SE Pilot’s User Guide - Revision I...
  • Page 22: Menu Navigation

    After the display turns on, you will see a screen similar to the one in Figure 1. This guide refers to the label bar at the bottom of the screen as the Main Menu. In SkyView SE, this menu has been simplified so that most buttons have a single dedicated function.
  • Page 23 Press BACK (saves settings) Press CANCEL (does not save settings) Save adjusted value Press ACCEPT Reset adjustable value Press DEFAULT Save settings and return to Main Press EXIT Menu Table 3 – Menu Navigation Summary SkyView SE Pilot’s User Guide - Revision I...
  • Page 24: Basic Display Operation Procedures

    30 seconds. During this countdown, the menu displays the buttons STAY ON and PWR OFF at the bottom of the screen. Press PWR OFF to turn off the SkyView SE display immediately. Press STAY ON to keep the SkyView SE display on via the connected backup battery.
  • Page 25 How to Manually Adjust the Backlight Brightness or Dim Level SkyView SE’s display backlighting is controlled by its ambient light sensor to actively adjust the brightness based on the current lighting conditions in the cockpit. The brightness is synchronized across multiple displays and SkyView network panel mounted modules (COM Radio and Knob Control Panel).
  • Page 26: Screen Layout Configuration

    SETUP MENU or > LOCAL DISPLAY SETUP > TOP BAR SETUP). Screen Layout Configuration SkyView SE can display 4 combinations of PFD and Engine data in full-screen and partial-screen configurations as well as distribute this data across multiple displays. Each display in the system can also have its own layout.
  • Page 27: Backup Battery Charging And Testing

    Backup Battery Charging and Testing In the event of an electrical failure that causes SkyView SE to run on the SV-BAT-320, the SV- BAT-320 supplies power to the SkyView SE display it is connected to, along with any connected SV-ADAHRS-26X, SV-EMS-220, and SV-GPS-250 or -2020 modules.
  • Page 28 SV-D600 and SV-D900 Operation Backup Battery Status SkyView SE performs an automatic 30 second self-test of the battery every time a SkyView SE display is shut down normally when master power is turned off after a flight. Additionally, a manually-actuated discharge test should be performed annually when prompted by SkyView.
  • Page 29: Pfd Operation

    4. PFD Operation One of the main functions of SkyView SE is its Primary Flight Display (PFD). This chapter highlights the layout of the PFD page, its symbology, and contains instructions for adjusting bugs. SkyView’s PFD requires data from an SV-ADAHRS-200/201 module. If installed, SkyView’s heading will be determined by the SV-MAG-236 Remote Magnetometer.
  • Page 30: Pfd Symbology

    PFD Symbology Bugs The SkyView SE PFD makes use of heading (or track), altitude, and vertical speed bugs. Note that the altitude, vertical speed, and heading (or track) bugs are used for autopilot control if Autopilot servos are installed. Instructions for setting bugs are detailed in subsequent sections of this guide.
  • Page 31 Attitude indicator symbology is displayed on PFD and incorporates a roll scale with roll pointers and a zero pointer reference, pitch scale with horizon lines, and water line symbology. Figure 13 is an example SkyView attitude indicator. SkyView SE Pilot’s User Guide - Revision I...
  • Page 32 After straight and level flight is restored for a few seconds, the ATTITUDE RECOVERING message will disappear. Full performance of the attitude indication is restored. This requires no additional action by the pilot. SkyView SE Pilot’s User Guide - Revision I...
  • Page 33 Each tick represents 25 units, with every 50 unit tick drawn slightly longer to differentiate them. Units can be set to feet or meters. Reference the SkyView / SkyView SE System Installation Guide instructions on how to change the displayed units.
  • Page 34 The reaction of the autopilot to an altitude bug change depends on the state of the pitch axis, its armed mode of operation, and the current state of the aircraft. See the Autopilot Operation chapter for more information about how the autopilot uses the altitude bug. SkyView SE Pilot’s User Guide - Revision I...
  • Page 35 VSI. This bug is also used as a target for the pitch axis of the SkyView SE Autopilot. See the Autopilot Operation chapter for details. SkyView SE Pilot’s User Guide - Revision I...
  • Page 36 GPS pointer, heading bug, and heading bug digital display. Figure 16 is an example SkyView SE Magnetic Heading Indicator/ Directional Gyro. Figure 16 – Example Magnetic Heading Indicator/Directional Gyro The compass rose displays in heading-up orientation.
  • Page 37 Heading/Track Bug If your SkyView SE system includes an autopilot, the heading (HDG) bug is replaced by a track (TRK) bug when the autopilot is flying in GPS ground track (TRK) mode. The bug is displayed in cyan on the inner edge of the compass rose. The digital display of the bug is displayed to the lower left of the compass rose.
  • Page 38 PFD Operation When a valid external VFR GPS navigation source is connected to your SkyView SE system, its data can be displayed on and around the heading indicator in a standard HSI presentation. Refer to the SkyView Classic / SE / HDX System Installation Guide for details on how to connect and configure these data sources.
  • Page 39 The action of the slip/skid ball simulates an analog slip/skid ball and provides a visual representation of lateral acceleration. When the ball is within the two vertical lines, Figure 21 the aircraft is in coordinated flight. Figure 21 is an example SkyView SE slip/skid ball. Slip/Skid Ball Angle of Attack Indicator The Angle Of Attack (AOA) Indicator will display only when a Dynon AOA/Pitot probe has been properly installed and calibrated.
  • Page 40 Figure 24 – Extreme Pitch Warning Indicator Arrows Six-Pack Presentation SkyView SE includes the traditional six-pack analog presentation of flight instruments as well as the EFIS tape-based display. SkyView SE’s “six-pack” flight instrumentation mode lets you fly the gauges you’re used to if you’re new to glass. After flying in the six-pack mode, try out the “EFIS”...
  • Page 41: Adahrs (Flight Instrument) Redundancy And Cross-Checking

    G Meter, turn coordinator (slip/skid ball), airspeed, and altitude. Figure 26 – ADAHRS Cross-Checking Disagreement Once SkyView SE has annunciated a cross-check comparison problem, press COMPARE to see both ADAHRS side-by side. The ADAHRS that was previously displayed on the PFD is labeled “ACTIVE”, while the one that was not previously being displayed - but which was being used as...
  • Page 42 PFD Operation Figure 27 – ADAHRS Cross-Check Comparison Once you have determined which ADAHRS is incorrect, press DISABLE to tell SkyView SE not to use it for the duration of the flight: Figure 28 – ADAHRS Cross-Check Comparison (one ADAHRS disabled) 4-14 SkyView SE Pilot’s User Guide - Revision I...
  • Page 43 Enter the ADAHRS Source Selection Page: IN FLIGHT SETUP MENU (press/hold buttons 7/8)> ADAHRS SOURCE SELECTION…). If you are on the ground, this will be under SETUP MENU > PFD SETUP > ADAHRS SOURCE SELECTION. SkyView SE Pilot’s User Guide - Revision I 4-15...
  • Page 44 PFD. PRIMARY / ALTERNATE ADAHRS Selection The ADAHRS labeled PRIMARY is the one that will be preferentially chosen by SkyView SE as the active ADAHRS. An ADAHRS labeled ALTERNATE is one that is available to be used in the event of a failure or problem with the primary ADAHRS.
  • Page 45: Top Bar

    Press and hold G METER (Button 6) to manually reset the G Meter. The G Meter may also be set up to automatically reset the min/max G readings every time SkyView SE starts up. The G Meter can also be configured to “pop up” automatically under certain conditions. When configured this way, the G Meter will appear automatically when the aircraft’s instantaneous G...
  • Page 46: Knob-Panel Operation

    Altitude Bug (ALT), Altimeter Setting (BARO) and Heading/Track Bug (HDG/TRK) on the primary flight display. These knobs behave exactly like the joystick knobs on a SkyView SE Figure 33 display do when they are set to these functions: turn them to adjust the SV-KNOB-PANEL/V value they control.
  • Page 47: Ems Operation

    5. EMS Operation This chapter describes SkyView SE EMS functionality and a few of the advanced ways to use it to monitor the health and operation of your engine. This chapter references the Engine Page. This page should have been configured during SkyView SE installation.
  • Page 48 Message Window when they enter their “red” ranges. In other words, “yellow” caution ranges for engine parameters do not trigger alerts. Yellow caution ranges, however, are visually annunciated via yellow highlighting on the Engine Page. SkyView SE Pilot’s User Guide - Revision I...
  • Page 49 • Manifold Air Pressure (MAP PRES) • Fuel Pressure (FUEL PRES) • Turbine Inlet Temperature (TIT TEMP) • Main Fuel Flow (MAIN FLOW) • RPMs (RPM RPM) Figure 38 – Example of Combined Oil Temperature Widget Styles SkyView SE Pilot’s User Guide - Revision I...
  • Page 50: Rotax 912 / 912 Is / 915 Is Behavior

    When OIL TEMP > 120° F, the TACHOMETER displays different ranges: • 0-1400 and 5800-6000 RPM in RED • 1400-1800 and 5500-5800 RPM in YELLOW • 1800-5500 RPM in GREEN • The alarm type for the tachometer is the “self-clearing” type. SkyView SE Pilot’s User Guide - Revision I...
  • Page 51: Ulpower 520T Behavior

    Additionally, an optional WSTGT counter is available for wastegate duty cycle monitoring on 915 iS engines. ULPower 520T Behavior 520T Boost/Static Pressure The BOOST and STATIC widgets are available for manifold pressure monitoring on 520T engines. SkyView SE Pilot’s User Guide - Revision I...
  • Page 52: Timers

    It resets the first time the engine is started after SkyView SE is powered on. This allows you to view your previous flight’s Engine Run Time any time before you start your engine before a flight.
  • Page 53: Fuel Computer

    Do not use these values as primary indicators. By using the optional fuel flow sensor and GPS information together, SkyView SE can generate and display different info items that pertain to your aircraft’s computed fuel state and performance.
  • Page 54 SkyView can assist with this through the Fuel Auto Detect setting described in this section. Fuel computer adjustments are made using the FUEL feature on Button 2 of SkyView SE’s main menu. When FUEL is pressed, the window in Figure 40 is displayed: Figure 40 –...
  • Page 55: Twin Engine Monitoring

    The fuel computer can optionally be configured to detect when fuel has been added while SkyView SE was off, as would be the case during a normal refueling operation. When configured to detect fuel additions, SkyView SE will automatically display the FUEL menu upon startup as a...
  • Page 56 Time, Total Air Time, Trip Run, Air Trip, and Air Timer. However, the Hobbs and Tach timers are tied to the individual engine. See the SkyView System Installation Guide for more details on setup and configuration of dual engine monitoring. 5-10 SkyView SE Pilot’s User Guide - Revision I...
  • Page 57: Transponder Operation

    The SV-XPNDR-261/262 has no control head. Rather it is exclusively controlled by accessing the transponder submenu (XPNDR - Button 5 – on SkyView SE’s main menu). This allows the transponder to be mounted separately from the instrument panel, and reduces the amount of panel space taken by the transponder.
  • Page 58 SkyView SE. The transponder is not responding to interrogations. Check the wiring and settings between the transponder module and SkyView SE if you are authorized to maintain your aircraft. Contact Dynon Technical Support for further assistance.
  • Page 59: Transponder Sub-Menu

    Transponder Sub-Menu Figure 42 – Transponder Menu Example When the Dynon SV-XPNDR-261/262 transponder module is installed and configured, the Transponder submenu becomes accessible from the Main Menu by pressing XPNDR (Button 6). All transponder operation can be accomplished from this submenu. There is no dedicated or separate control panel needed (or available).
  • Page 60 Status Area for the next 18 seconds as the transponder sends the ident signal. Note that if a button is pressed to change the transponder mode or to turn it off, that action will be delayed until the ident transmission completes. SkyView SE Pilot’s User Guide - Revision I...
  • Page 61: Reported Pressure Altitude

    PFD page. ADS-B OUT Transmissions If SkyView SE has a valid GPS signal and a SV-XPNDR-261/262 module is installed and working, it automatically provides ADS-B output at the appropriate integrity level for the GPS signal being used.
  • Page 62 Transponder Operation This page intentionally left blank. SkyView SE Pilot’s User Guide - Revision I...
  • Page 63: Autopilot Operation

    Therefore, Dynon Avionics recommends that the servos be powered on whenever SkyView SE is powered on in routine operation. When the servos are receiving power but the autopilot is not engaged, the servos draw negligible power.
  • Page 64: Top Bar Autopilot Status Area

    Top Bar Autopilot Status Area Figure 44 – Example Top Bar with Autopilot Status The status of SkyView SE’s autopilot is presented in the left portion of the top Status Bar Area. The various enunciations which may be presented are described below: Center AP Text o AP is displayed in green when either or both AP axes’...
  • Page 65 If prolonged periods of pitch slipping are detected, the condition may be relieved with pitch trim. SkyView SE displays a slip alert combined with a trim request. However, Auto-Trim will not attempt to actuate the trim controllers during a slip.
  • Page 66 This alert may not be configured in all aircraft. See the SkyView Classic / SE / HDX System Installation Guide for more information regarding trim indication configuration. Figure 49 – Yaw Trim Left and Right Alerts SkyView SE Pilot’s User Guide - Revision I...
  • Page 67 See the SkyView Classic / SE / HDX System Installation Guide for details. Airspeed Out-Of-Range Indicator SkyView SE uses the indicator shown below to denote that the aircraft airspeed is outside of the specified autopilot airspeed range as specified during installation. When SPD is displayed in the Top Bar the autopilot cannot be engaged.
  • Page 68 G Limit Indicator SkyView SE uses the alert shown in the following figure to denote that the autopilot’s preset G limits are hit, and therefore the autopilot will not pull or push on the pitch axis in a way that would exceed these limits.
  • Page 69: Auto-Trim

    Reference the SkyView Classic / SE / HDX System Installation Guide for more information about configuring Auto-Trim. Be advised that the SV-AP-PANEL's buttons are not compatible with SkyView SE. However, an SV-AP-PANEL may be installed, possibly behind the panel "in the blind"...
  • Page 70: Simplified Autopilot Operation And Controls

    Autopilot controls in SkyView SE are extraordinarily simple. The autopilot has been optimized for use in VFR-only aircraft. SkyView SE’s main menu contains only two Autopilot controls, on Buttons 3 and 4. Button 3: TRK+ALT The quickest and simplest way to engage the autopilot it by pressing Button 3: TRK+ALT. This engages the autopilot in Track Hold and Altitude Hold modes simultaneously when both pitch and roll servos are installed.
  • Page 71 HSI from the provided source. For example, if the selected HSI source is the SkyView SE GPS, and there is an active Flight Plan, the autopilot will fly that flight plan. Or if the source is a VOR the autopilot will seek to capture and hold the set CRS to or from the VOR.
  • Page 72 While Control Wheel Steering mode is active, the Autopilot servos are temporarily disengaged. This lets you fly the aircraft by hand for short periods to make an adjustment to the autopilot’s targets without completely disengaging the Autopilot. 7-10 SkyView SE Pilot’s User Guide - Revision I...
  • Page 73 SkyView Classic / SE / HDX System Installation Guide for details. Single Axis Operation If only one axis is installed the autopilot control buttons reflect the actions available for the single axis that can be controlled. SkyView SE Pilot’s User Guide - Revision I 7-11...
  • Page 74 Autopilot Operation This page intentionally left blank. 7-12 SkyView SE Pilot’s User Guide - Revision I...
  • Page 75: Com Radio Operation

    8. COM Radio Operation The SV-COM-760, -T25/T8, -425 integrates with your SkyView SE system in a novel way, allowing you to “load” airports to it to enable quick, single button-push frequency tuning via the dedicated TWR, ATIS, GND, and ATC buttons. Of course, you can also spin frequencies in the “old fashioned way”...
  • Page 76: Top Bar Com Radio Status Overview

    The SV-COM-760, -T25/T8, -425 is not powered by the SkyView SE system, so they may not power up at the same time as your SkyView SE displays. Press and hold the Volume Knob / Power Button to manually turn the SkyView SE COM Radio off and on.
  • Page 77 The squelch setting, which determines how strong a radio transmission must be before the radio receives it, is configured during setup. See the SkyView Classic / SE / HDX System Installation Guide for instructions on adjusting this parameter. SkyView SE Pilot’s User Guide - Revision I...
  • Page 78 To help you determine whether the radio is receiving on the active or standby frequency, both the control panel and SkyView SE’s top bar visually indicate which of the standby or active frequency is being received on at any moment:...
  • Page 79 Airport / Station Type Reverse-Lookup When a frequency is manually tuned, SkyView SE will search for the closest known airport within 75 miles that has that frequency and automatically show that airport’s identifier in the associated airport and station type fields on both the control panel and top bar.
  • Page 80: Loading Airports To The Skyview Se Com Radio

    Figure 81 Figure 82 Loading Airports to the SkyView SE Com Radio The SV-COM-760, -T25/T8, -425 radio's most unique and innovative feature is its ability to load airports onto the control panel. Once an airport is loaded, single presses of the TWR, ATIS, GND, and ATC buttons automatically tune those frequencies (to the standby location) for that airport.
  • Page 81 75 miles of your location to speed up entry by limiting the airport possibilities. o The small, inner knob chooses characters (A-Z, 0-9) o The larger, outer knob moves the cursor. SkyView SE Pilot’s User Guide - Revision I...
  • Page 82: Using The Twr, Atis, Gnd, And Atc Buttons

    GND: Tunes ground control frequencies. ATC: When on the ground: Tunes pre-taxi, clearance, and departure frequencies associated with an airport. When in the air: Tunes departure, center, and approach frequencies when associated with an airport. SkyView SE Pilot’s User Guide - Revision I...
  • Page 83: Aviation Database

    USB memory stick. Reference the Loading and Removing Databases section below of this guide for instructions on how to import the file onto a SkyView SE display. Aviation data is updated every 28 days. Once the installed Aviation database is out of date a message will appear in the Messages list on Button 8 (MSG) at power up.
  • Page 84: Other Status Information

    Figure 97 – No SkyView mode You may see this annunciation as your SkyView SE displays first power up, as they take longer to initialize than the COM radio. No Aviation Database If SkyView SE does not have an aviation database loaded, the airport loading and TWR/ATIS/GND/ATC buttons will not be available.
  • Page 85 Figure 102 Without GPS position, airport loading and TWR/ATIS/GND/ATC will not be available. You may see this annunciation as SkyView SE starts up or when the aircraft does not have GPS reception (for example, when inside the hangar). Stuck Microphone If a transmission lasts more than 30 seconds, the microphone push-to-talk is assumed to be stuck.
  • Page 86: External Flip/Flop

    Dual COM Radios If you have more than one COM radio that can communicate with SkyView SE, only the primary COM radio’s status information will be displayed in the Top Bar. Additionally, only the primary radio will receive airports or frequencies from SkyView SE when SkyView SE’s TUNE or APT>COM buttons are used.
  • Page 87: Messages And Alerts

    Loss of Information SkyView SE notifies users with a large red X and a descriptive label if a major failure occurs that prevents the display of information. A red X may overlay an entire page if a data source such as an EMS module fails or a red X may overlay a single widget if a single engine sensor fails or is not connected.
  • Page 88 • If audio is connected and an audio alert exists for the particular alert, it will be played. Anytime a red warning alert is first triggered, the following simultaneous evens may occur: SkyView SE Pilot’s User Guide - Revision I...
  • Page 89 “1/2”. If there is only one page of Alert Messages, pressing the rightmost button simply closes the Message Window. If there are more Messages present than can fit in the window, pressing the right most button moves to the next SkyView SE Pilot’s User Guide - Revision I...
  • Page 90: Prompts Requiring Interaction

    “pop-up” near the bottom of the display. These often require a particular menu action or choice to proceed. An example of this is loss of primary power resulting in SkyView SE operating SkyView SE Pilot’s User Guide - Revision I...
  • Page 91: Audio Alerts

    (if installed). In this condition, the pilot must choose whether to keep the display on (on battery power) or to power the display off. Audio Alerts When connected to an audio panel or intercom, SkyView SE can generate tones or voice alerts for various conditions. Inhibited Alerts Audio alerts that occur within 5 seconds of SkyView SE initially powering on are inhibited to reduce transient nuisance alerts that may occur as SkyView SE comes online.
  • Page 92 System is in Demo Mode and is "Warning" DEMO MODE not airworthy. EGT indicator for identified sensor "Warning" EGT # HIGH has entered configured red high range. SkyView SE Pilot’s User Guide - Revision I...
  • Page 93 ADAHRS data is None None unreliable. Tachometer indicator has entered "Engine Speed" RPM HIGH configured red high range. Tachometer indicator has entered "Engine Speed" RPM LOW configured red low range. SkyView SE Pilot’s User Guide - Revision I...
  • Page 94 The system has detected a wiring "Caution" AP DISCONNECT STUCK fault in the AP DISC button/switch. The Autopilot Control Panel is no "Caution" AP PANEL OFFLINE longer communicating with SkyView. SkyView SE Pilot’s User Guide - Revision I...
  • Page 95 The Remote Magnetometer module has failed or is not "Caution" HDG SOURCE FAIL communicating with SkyView. Heading information is unavailable. Knob Control Panel is not "Caution" KNOB PANEL OFFLINE communicating with SkyView. SkyView SE Pilot’s User Guide - Revision I...
  • Page 96 "Caution" ERROR See Standby Network Error Explained section at end of this table for more information. The system has detected a wiring "Caution" TRIM SWITCH STUCK fault in the trim button/switch. 9-10 SkyView SE Pilot’s User Guide - Revision I...
  • Page 97 "Caution" ZAON OFFLINE status query in the last 10 seconds. The connected ADS-B traffic/weather receiver has failed "Message" ADS-B IN OFFLINE or is no longer communicating with SkyView. SkyView SE Pilot’s User Guide - Revision I 9-11...
  • Page 98 "Pitch Slip" PITCH SLIP by autopilot. Slip messages are generally transient. The roll autopilot servo has stopped communicating with "Message" ROLL SERVO OFFLINE SkyView, or autopilot servos are not receiving power. 9-12 SkyView SE Pilot’s User Guide - Revision I...
  • Page 99 The aircraft is in flight and the "Message" MODE Transponder is not in Alt Mode. The yaw autopilot servo has stopped communicating with "Message" YAW SERVO OFFLINE SkyView, or autopilot servos are not receiving power. SkyView SE Pilot’s User Guide - Revision I 9-13...
  • Page 100 Vfe (and flaps are at least partially deployed) A new flight plan has been "Flight Plan received by SkyView from an None None Updated" external flight plan source (such as a mobile app). 9-14 SkyView SE Pilot’s User Guide - Revision I...
  • Page 101 "Trim Nose Down" None None annunciating this visually on the display for at least 30 seconds. This alert is played a maximum of once every 30 seconds. SkyView SE Pilot’s User Guide - Revision I 9-15...
  • Page 102 When the STANDBY NETWORK ERROR alert is displayed, SkyView SE is telling you that SkyView Network no longer has a backup or redundant data pathway to fall back on should the primary data path fail. You...
  • Page 103 The tones start at the level selected and get progressively quicker and closer together until a solid tone is played at critical AOA (in the red). SkyView SE Pilot’s User Guide - Revision I 9-17...
  • Page 104 Messages and Alerts This page intentionally left blank. 9-18 SkyView SE Pilot’s User Guide - Revision I...
  • Page 105: Appendix A: Skyview Se System Specifications

    10. Appendix A: SkyView SE System Specifications See the current revision of the SkyView Classic / SE / HDX System Installation Guide . SkyView SE Pilot’s User Guide - Revision I 10-1...
  • Page 106 Appendix A: SkyView SE System Specifications This page intentionally left blank. 10-2 SkyView SE Pilot’s User Guide - Revision I...
  • Page 107: Appendix B: License Information

    This offer is valid to anyone in receipt of this information. In accordance with the Gnu General Public License v2 (GPLv2), the source code for the operating system kernel used in SkyView panels is available under GPLv2 terms. The SkyView SE application itself, which runs on top of Linux, is not subject to GPLv2 requirements and is not available in source code form.
  • Page 108 DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. 11-2 SkyView SE Pilot’s User Guide - Revision I...
  • Page 109 INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. _________________ SkyView SE Pilot’s User Guide - Revision I 11-3...
