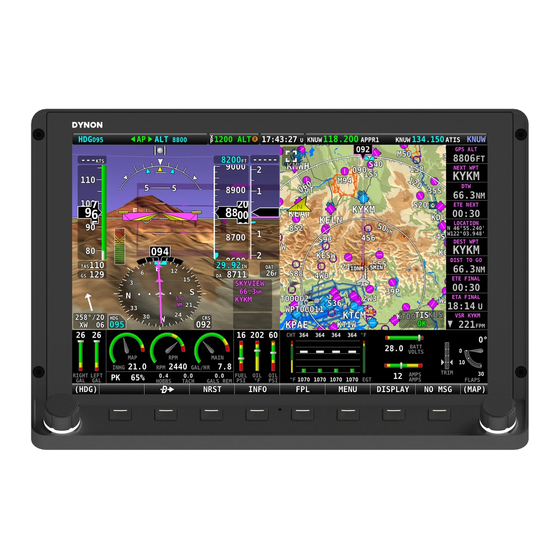

SkyView HDX
Airplane Flight Manual Supplement
(or Supplemental Airplane Flight Manual)
For Software Version 16.0.8
103272-000
Copyright © 2021 by Dynon Avionics, Inc.
Dynon Avionics grants third parties' permission to print this document
SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021
Page | i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SkyView HDX and is the answer not in the manual?

Questions and answers

Related Manuals for Dynon SkyView HDX

Summary of Contents for Dynon SkyView HDX

  • Page 1 (or Supplemental Airplane Flight Manual) For Software Version 16.0.8 103272-000 Copyright © 2021 by Dynon Avionics, Inc. Dynon Avionics grants third parties' permission to print this document SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | i...
  • Page 2 Information in this document is subject to change without notice. Dynon Avionics reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes.
  • Page 3 This document serves as a supplement to the aircraft flight manual, or as a supplemental flight manual. It must be attached to the FAA Approved Airplane Flight Manual (AFM) or, when no AFM exists, used as a supplemental aircraft operating manual when the SkyView HDX system is installed in accordance with STC SA02594SE.
  • Page 4 Changed wording in section 5.5 to read "pull" instead of "turn off" with reference to circuit breakers. • Updated Figure 18 • 07/02/2019 Accepted by Changed name of document to "SkyView HDX Airplane Flight Manual Supplement". ECO 331341 Seattle AIR-715 • Added note regarding use of this document as an SAFM. on 7/2/2019 •...
  • Page 5 Removed 2 limitations from Section 9: Limitations per FAA request. ▪ Updated Section 10.6: Autopilot / Yaw Damper Servo Jam to clearly describe role of frangible link. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | v...
  • Page 6 • Engage Autopilot (now Section 4.4.1) updated per feedback from FAA/Dynon meeting. • 08/11/2020 Warning Alerts (now Section 7.8.2) updated per Dynon software developer input. Not Accepted • ECO 353760 Caution Alerts (now Section 7.8.3) updated per feedback from FAA/Dynon meeting and Dynon software development input.
  • Page 7 Added Section 9.1.5: Auto-Trim. Subsequent sections renumbered. • Added Section 9.1.6.5: G Limit Alert. • Added new Section 12: Appendix 3: Beechcraft Bonanza 36. Subsequent appendices renumbered. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | vii...
  • Page 8 7.12: Autopilot, added verbiage about autopilot not controlling throttle. Technical changes since previous revision are tracked with change bars in margins. Formatting and style changes are not tracked. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | viii...

  • Page 9: Table Of Contents

    Standby Display System ..................7-1 Synthetic Vision ......................7-1 Map .......................... 7-1 Terrain Alerts......................7-1 Traffic Information ....................7-2 Weather Information ....................7-5 Navigation Databases ....................7-5 SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | ix...
  • Page 10 Autopilot Servo Shear Screw Break-Away Forces ..........11-1 Appendix 4: Piper PA-34 Seneca ............12-1 12.1 Autopilot Limitations ....................12-1 12.2 Autopilot Servo Shear Screw Break-Away Forces ..........12-1 SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | x...

  • Page 11: General

    SkyView HDX is an integrated system that aggregates air, engine, traffic, and navigation information for display to the pilot. The information is portrayed on the SkyView HDX display, which is a touchscreen, coupled with mechanical knobs and buttons. The SkyView HDX display provides Primary Flight Information (PFI) on the Primary Flight Display (PFD), Map with current position, and optionally Engine Monitoring information.
  • Page 12 This page intentionally left blank. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 1-2...

  • Page 13: Limitations

    IFR Operations For all airplanes: • SkyView HDX system must have at least one of each of the following components in fully functioning condition, with no error messages displayed: ▪ SkyView HDX display unit. ▪ SV-ADAHRS-200 module.

  • Page 14: Synthetic Vision

    Synthetic Vision For all airplanes: • SkyView HDX Synthetic Vision is advisory in nature and must not be used as the sole means of terrain and obstacle avoidance. For all airplanes: • The SkyView HDX Map and Flight Planning function is advisory in nature and must not be used as the sole means of terrain and obstacle avoidance.

  • Page 15: Emergency & Non-Normal Procedures

    CONDITION: One or more autopilot servos are operating in a confusing or un-commanded fashion. 1. AP Power Switch____________________________________________________ OFF. 2. Fly Manually. • Power has been removed from the Autopilot servos. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 3-1...
  • Page 16 4. Fly Manually. • Power has been removed from the Trim motor. • DO NOT use electric Trim system until cause of malfunction has been determined and corrected. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 3-2...

  • Page 17: Non-Normal Procedures

    CONDITION: GPS # FAIL alert is displayed. ("#" being the configured GPS source (1, 2, 3, etc.)). • The GPS position source has failed. • The system is operating on the next available GPS position source. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 3-3...
  • Page 18 1. Disconnect Yaw Damper: • Press and release AP DISC Button (either yoke- or panel-mounted). –OR– • Press the YD Button on the Autopilot Control Menu. 2. Fly manually. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 3-4...

  • Page 19: Normal Operations

    Normal Operations General Although operation of the primary functions of the SkyView HDX system is intuitive, it does require a reasonable degree of familiarity to utilize all its functions without compromising attention to other flying tasks. Users are encouraged to read the SkyView Pilot's User Guide thoroughly before flight and to take advantage of the training videos available on youtube.com/DynonAvionics.
  • Page 20 Touch Controls SkyView HDX displays contain touchscreen functionality. Touching various items on the display allows for the item to be selected and the value adjusted. For example, touching the HSI data source allows for alternate sources to be selected. Pilot-selectable choices for the layout of each screen can be selected by pressing DISPLAY button on Main Menu.
  • Page 21 (on display or control panel) until a SYNC message appears on PFD. The following occurs: ▪ Altimeter is set to the nearest METAR (when ADS-B is available in-flight). SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 4-3...
  • Page 22 5. To synchronize Altimeter to airplane's current altitude, push and hold ALT knob (on display and control panel) until SYNC message appears above left knob on display. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 4-4...
  • Page 23 Cyan to draw attention to it. The CRS value for each available HSI source is retained when that source is deselected and will be used when that HSI source is re-selected. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 4-5...
  • Page 24 G Meter is displayed. The G Meter is automatically displayed when the aircraft’s G loading reaches the yellow threshold configured during initial system setup. (See the 103261-000 SkyView HDX System Installation Manual document for more information). If the G Meter was automatically displayed, it will be removed when the aircraft’s G loading returns to normal range, and the HSI will be...
  • Page 25 To exit Dual Mode, push and hold the knob again, or press DUAL on the Radio Menu. Adjust frequencies with the labeled buttons or manually with the dual concentric knob. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 4-7...

  • Page 26: Skyview Hdx Backup Power Check

    Figure 5: COM Control Panel (Horizontal and Vertical Configurations) SkyView HDX Backup Power Check When the SkyView HDX system detects that it is not moving, and power is removed from a display connected to a backup battery, the system will automatically run an additional 30 seconds on backup battery power.

  • Page 27: Standby Flight Display Backup Battery Condition Check

    The control panel buttons are illuminated for low-light visibility, but do not indicate autopilot operation status. Use the autopilot mode display and/or the autopilot menu to determine autopilot operation status. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 4-9...
  • Page 28 ▪ Press button twice (i.e., double-click) to disengage the autopilot servos and cancel all Modes and Flight Director. • Turning AP POWER switch/breaker OFF (see Section 4.4.4 below). SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 4-10...
  • Page 29 AP DISC (Autopilot Disconnect) Button SkyView HDX systems with SkyView Autopilot will have a button labeled, AP DISC, mounted either on the wheel/yoke or prominently on the instrument panel. This button, when pressed, will immediately disengage the autopilot. If the SkyView Auto-trim feature is installed, it will also temporarily interrupt power to the trim motor(s).
  • Page 30 The need for airplane trim changes during the go-around may cause the autopilot servos to slip. The pilot must adjust the pitch trim to prevent the pitch servo from slipping. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 4-12...
  • Page 31 If an ILS approach is being flown with another navigation source being used in the transition, for example an approach approved GPS navigator, upon being cleared for and activating the SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 4-13...

  • Page 32: Autopilot Operation Check

    SkyView HDX's HSI source must be switched from GPS to NAV. This may happen one of two ways: 1. If the GPS Navigator does not support auto-switching from GPS to NAV, you must manually perform this action by using AUTOPILOT > HSI SRC.
  • Page 33 • Press the panel mounted disconnect button (if installed), and ensure the autopilot disconnects. "AUTOPILOT DISCONECT" aural should be heard. • Press the yoke mounted disconnect button (if installed), and ensure the autopilot disconnects. "AUTOPILOT DISCONECT" aural should be heard. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 4-15...
  • Page 34 This page intentionally left blank. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 4-16...

  • Page 35: Performance

    Performance Use of the SkyView HDX system has no effect on the airplane's performance. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 5-1...
  • Page 36 This page intentionally left blank. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 5-2...

  • Page 37: Weight And Balance

    Weight and Balance Installation of a SkyView HDX system impacts the airplane's level weight and balance once, during initial installation. Certified installers must add new empty weight and balance information to airplane's Aircraft Flight Manual. Refer to the airplane's Pilot's Operating Handbook and associated Aircraft Flight Manual and supplements.
  • Page 38 This page intentionally left blank. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 6-2...

  • Page 39: System Overview

    System Overview SkyView HDX Display Units The SkyView HDX display unit installed in the pilot's position is designated the Primary Display. It is configured during initial setup to always present PFD. It can also present Map and Engine Monitoring. Additional installed display units (referred to as Secondary Displays) have no PFD restrictions and can present any combination of PFD, Map, or Engine Monitoring.

  • Page 40: Traffic Information

    Traffic Information SkyView HDX can display traffic information on the PFD and on the Map. The presentation of traffic information is for advisory purposes only and must not be used as a sole means of avoidance.
  • Page 41 The length of arrow represents where the aircraft is expected to be in one minute based on its current trajectory. SkyView HDX assumes that all TIS targets are travelling at 150 knots. The target’s direction is shown to the nearest 45°...
  • Page 42 The visual notification is shown on the PFD (near Airspeed tape) and on the Map (lower right corner), as shown in Figure Figure 13: Traffic Alert Notification SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-4...

  • Page 43: Weather Information

    Weather Information SkyView HDX can display weather information on the Map, including lightning and PIREPS. Display of traffic information is for advisory purposes only and must not be used as a sole means of avoidance. The display of weather information is enabled from the IN-FLIGHT MENU under WEATHER OPTIONS.

  • Page 44: Flight Crew Alerting System

    7.10 Flight Crew Alerting System The Flight Crew Alerting System is a central feature of the SkyView HDX system. This system provides the pilot and crew with system information organized by condition priority for all installed SkyView HDX sub-systems. The alerts and messages will vary depending upon the installed equipment.
  • Page 45 If a new alert or message is triggered or cleared, the pilot must re- open the window to refresh the information. Figure 15: Alert Notification Window, Alert Appearance SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-7...
  • Page 46 No action. Take command to for V has been manually decrease "FLAPS (None) exceeded with flaps airplane's speed OVERSPEED" extended. until the flaps have been fully retracted. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-8...
  • Page 47 CHT indicator for Refer to Airplane Refer to Airplane "CYLINDER HEAD identified sensor has Flight Manual Flight Manual TEMPERATURE" entered configured Red High range. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-9...
  • Page 48 "FUEL FLOW" configured Red HIGH range. Fuel Flow indicator Refer to Airplane Refer to Airplane has entered Flight Manual Flight Manual "FUEL FLOW" configured Red Low range. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-10...
  • Page 49 MONITOR" entered the configuration configured Red range. Voltage indicator has Refer to Airplane Refer to Airplane "VOLTAGE" entered configured Flight Manual Flight Manual Red High range. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-11...
  • Page 50 Autopilot Information Both autopilot axes No action. Take command to fly Bar changes color "AUTOPILOT have been manually. and temporarily DISCONNECT" disconnected. flashes SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-12...
  • Page 51 On PFD: NEEDED. "TRIM RUNAWAY" TRIM 4) Fly manually. RUNAWAY Refer to Section 3.1.4: Trim Runaway. Electric trim system must not be used until fault has been corrected. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-13...
  • Page 52 Alert appears on all displays, and airplane Master Switch is ON: Displays will operate for 45 minutes. Plan to land at nearest suitable airport. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-14...
  • Page 53 Conditions (IMC). system components. Touch screen of Use SkyView display Use SkyView display affected SkyView unit knob controls. unit knob controls. "CAUTION" unit display no longer functions. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-15...
  • Page 54 Angle of Attack Do not fly if flight Avoid operations in (AoA) calibration for requires Instrument Instrument "CAUTION" ADAHRS not Flight Rules (IFR). Meteorological performed. Conditions (IMC). SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-16...
  • Page 55 6) Fly by reference to Standby Flight Display and Whiskey Compass. 7) Alt. Static Air Source no longer needed__OFF. Refer to Section 3.1.1: Airspeed, Altitude, and/or Attitude Unreliable. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-17...
  • Page 56 If Dynon COM radio Use alternate is not required for flight, do communication "CAUTION" communicating with not fly. equipment. If none SkyView. available, use Lost Comms Procedures. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-18...
  • Page 57 ON. The system has no remaining GPS "CAUTION" If message persists, position sources use other available. navigational means. The Map is no longer available. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-19...
  • Page 58 "TRIM NOSE UP" direction indicated. On PFD: "TRIM NOSE Visual annunciation TRIM NOSE UP DOWN" appears TRIM NOSE DOWN immediately. Aural warning after 10 seconds. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-20...
  • Page 59 Autopilot control Autopilot control panel is not panel unavailable. panel unavailable. communicating with Use SkyView Use SkyView "CAUTION" SkyView. Control Menu. Control Menu. Trim airplane Trim airplane manually. manually. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-21...
  • Page 60 A trim switch was until fault has been until fault has been held ON corrected. corrected. continuously for more than 5 seconds while SkyView Auto- trim was enabled. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-22...
  • Page 61 FL180 and the BARO should be reset. An SkyView display Do not fly. Increase airflow or unit’s internal reduce ambient "MESSAGE" temperature is high. temperature near affected display. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-23...
  • Page 62 (None) MINIMUMS" above the selected MINIMUM altitude. The airplane is No action. Pilot awarness only. "APPROACHING within 30 seconds of (None) WAYPOINT" crossing flight plan enroute waypoint. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-24...
  • Page 63 Set power for Go- Around function has Around. "GO AROUND" ADD POWER been engaged. Autopilot Bar flashes The autopilot has Pilot awarness only. Pilot awarness only. "AUTOPILOT" momentarily been engaged. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-25...
  • Page 64 AP POWER AP POWER Switch__OFF. switch__OFF. Autopilot is disabled Do not use Autopilot and must not be for remainder of used until fault has flight. been corrected. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-26...
  • Page 65 "YAW DAMPER" damper has been "YD" engaged. The autopilot yaw Pilot awareness Pilot awareness Slip/Skid Indicator "YAW DAMPER only. only. damper has been Ball turns White DISCONNECT" disengaged. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-27...

  • Page 66: Indications

    7.11 Indications Airspeed Indicators Installation of SkyView HDX does not necessitate changes to airplane's airspeed limitations. Refer to the Aircraft Limitations in the airplane's Aircraft Flight Manual (AFM) for the airspeed limitations. Configuration values for airspeed markings are entered into SkyView HDX during initial system setup.
  • Page 67 Figure 16: Airspeed Marking Examples SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-29...
  • Page 68 The optional SkyView HDX Engine Monitoring System (EMS) provides engine and airplane system information to the pilot. EMS information can be presented on a SkyView HDX display in three different size formats, depending upon owner/pilot preference or requirements of the airplane: •...
  • Page 69 EMS, or when operating the engine on the ground for maintenance reasons. On Twin-engine airplanes, the 100% page (see Figure 18) is used for all normal flight operations. Figure 17: Example 100% Display Page for Single-engine Airplanes SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-31...
  • Page 70 Figure 18: Example 100% Display Page for Twin-engine Airplanes SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-32...
  • Page 71 On Twin-engine airplanes, the 50% page (see Figure 20) is used to show the required information if the dedicated EMS display unit fails. Figure 19: Example 50% and Bottom Band for Single-engine Airplanes SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-33...
  • Page 72 Figure 20: Example 50% Page for Twin-engine Airplanes SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-34...
  • Page 73 Figure 24) . Pressing the map button toggles the map to maximize or minimize the page. Engine and system alerts continue to function even if the Map is maximized. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-35...
  • Page 74 Figure 22: Example Partial Bottom Band Display Figure 23: Example Full Bottom Band Display SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-36...
  • Page 75 The landing gear's visual indicators and the aural annunciations are optional and are configured to function during initial system setup. Visual indicators and aural annunciations function independently and are configured separately. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-37...
  • Page 76 EGT function is depicted as a bar. Turbine Inlet Temperature (TIT) can also be indicated using a variety of indicator styles. Figure 27: Example Combined CHT/EGT and TIT Indicators SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-38...

  • Page 77: Autopilot

    The autopilot may be activated and deactivated by the pilot by several means, including on- screen AP icons, an optional push button mounted on the panel or control yoke, as well as the optional Autopilot Control Panel (see Figure 37). SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-39...
  • Page 78 • Autopilot will fail down to a less complex mode if the current or requested function is no longer possible. See Table 5 for the corresponding fail-down mode for all autopilot modes. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-40...
  • Page 79 Single or Dual cue symbols (see Figure 29) are available to select as options in SETUP MENU > PFD SETUP > FLIGHT DIRECTOR. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-41...
  • Page 80 PFD (see Figure 30). Touching the bar will open the Autopilot Control Menu (see Figure 36). Figure 30: Autopilot Information Bar SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-42...
  • Page 81 Autopilot is ON with pitch and pilot-set values flash (i.e., roll servos engaged. highlight on/off) for 10 seconds after mode transition from armed Vertical mode recently changed. to active. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-43...
  • Page 82 System) when the trim system operates in an unexpected manner • SkyView HDX also alerts when a trim switch is held ON continuously for more than 5 seconds. If this safety function is triggered by the pilot inadvertently, it is reset by releasing the trim control momentarily, and then re-commanding trim with the switch.
  • Page 83 If the alert persists, the aircraft is likely severely out of trim. In this situation disconnect the autopilot, trim the aircraft appropriately, and then re-engage the autopilot. Figure 33: Slip Trim Alert Example SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-45...
  • Page 84 1. Press and release the AP button on the Autopilot Control Menu screen, 2. Press and release the AP button on the optional Autopilot Control Panel, 3. Press the LEVEL button on the optional Autopilot Control Panel. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-46...
  • Page 85 OBS is not set. Holds altitude commanded in the Autopilot status bar. NOTE: When activating this mode, commanded altitude is automatically set to the current indicated altitude. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-47...
  • Page 86 If this is not desired, do not arm VNAV mode until established on the final approach course. Figure 36: Autopilot Control Menu SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-48...
  • Page 87 IAS Hold; and mode sequencing (provided that the necessary IFR navigation sources are installed). It also has a LEVEL button to immediately return the airplane to straight and level flight. Figure 37: Autopilot Control Panel SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-49...
  • Page 88 Press YD button on AP Control Yaw Damper servo disengages YES or NO Menu (autopilot is not affected) Yaw Damper and Autopilot servos disengage AP Disconnect Switch Yaw Damper servo disengages SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 7-50...

  • Page 89: Handling, Service, And Maintenance

    Handling, Service, and Maintenance Maintain and service SkyView HDX in accordance with the SkyView HDX General Maintenance Manual document and the Autopilot Servo Installation and Maintenance Manual document associated with the airplane. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021...
  • Page 90 This page intentionally left blank. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 8-2...

  • Page 91: Appendix 1: Cessna Models 172F Through 172S

    • Use of the autopilot without a successful preflight operations check is prohibited. (See Section 4.5: Autopilot Operation Check for instructions) Autopilot Servo Shear Screw Break-Away Forces Pitch Servo: 63 lbs. Roll Servo: 21 lbs. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 9-1...
  • Page 92 This page intentionally left blank. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 9-2...

  • Page 93: Appendix 2: Beechcraft Bonanza P35 Through V35B

    • Use of the autopilot without a successful preflight operations check is prohibited. (See Section 4.5: Autopilot Operation Check for instructions) 10.2 Autopilot Servo Shear Screw Break-Away Forces Pitch Servo: 73 lbs. Roll Servo: 24 lbs. Yaw Servo: 91 lbs. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 10-1...
  • Page 94 This page intentionally left blank. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 10-2...

  • Page 95: Appendix 3: Beechcraft Bonanza 36

    • Use of the autopilot without a successful preflight operations check is prohibited. (See Section 4.5: Autopilot Operation Check for instructions) 11.2 Autopilot Servo Shear Screw Break-Away Forces Pitch Servo: 66 lbs. Roll Servo: 30 lbs. Yaw Servo: 77 lbs. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 11-1...
  • Page 96 This page intentionally left blank. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 11-2...

  • Page 97: Appendix 4: Piper Pa-34 Seneca

    • Use of the autopilot without a successful preflight operations check is prohibited. (See Section 4.5: Autopilot Operation Check for instructions) 12.2 Autopilot Servo Shear Screw Break-Away Forces Pitch Servo: 68 lbs. Roll Servo: 38 lbs. SkyView HDX Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 12-1...
  • Page 98 This page intentionally left blank. SkyView HDX - Airplane Flight Manual Supplement, Rev Q, 11/5/2021 Page | 12-2...
