• D3 Device
• USB-C Charging cable
• AC Wall Charger
• DC 14/28V DC Vehicle Charger
Before you use your D3 for the first time, please complete the following initial setup & configuration
steps: This guide contains abbreviated instructions for product usage. Please download the full
Pilot's User Guide at dynonavionics.com/docs.
• Fully charge the battery.
• Check for D3 software updates at
dynonavionics.com.
You can adjust settings such as ground speed units (KTS / MPH / KPH), altitude units (feet / meters),
whether the D3 automatically shuts down after a period of inactivity, and other display settings. To
adjust settings on your D3:
• Press the Menu button in the upper left corner of the display.
• Touch "Settings" to enter the settings menu.
• When you are finished, touch anywhere outside the settings menu to completely exit the menu
system. You may also use the "back" arrow to navigate back to other settings.
For more information and to download software updates, visit www.dynon.aero/d3
QUICK-START GUIDE
INCLUDED WITH YOUR D3
• USB-C adapter
• Mounting options
• Matte finish screen protector
BEFORE FIRST USE
ADJUSTING SETTINGS
• Choose settings.
• Mount and align D3.
• Go Fly!
103660-000
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dynon D3
Summary of Contents for Dynon D3
- Page 1 • DC 14/28V DC Vehicle Charger BEFORE FIRST USE Before you use your D3 for the first time, please complete the following initial setup & configuration steps: This guide contains abbreviated instructions for product usage. Please download the full Pilot’s User Guide at dynonavionics.com/docs.
- Page 2 ALIGN THE D3 FOR FLIGHT With the D3 powered on, Press the Menu icon in the upper-left corner, and then go to “Pitch/Roll Adjust”. • • Press the up/down arrows until the displayed pitch matches the current pitch of the aircraft. Note that this won’t necessarily be “level”, particularly for taildraggers that are being aligned on the ground.
Need help?
Do you have a question about the D3 and is the answer not in the manual?
Questions and answers

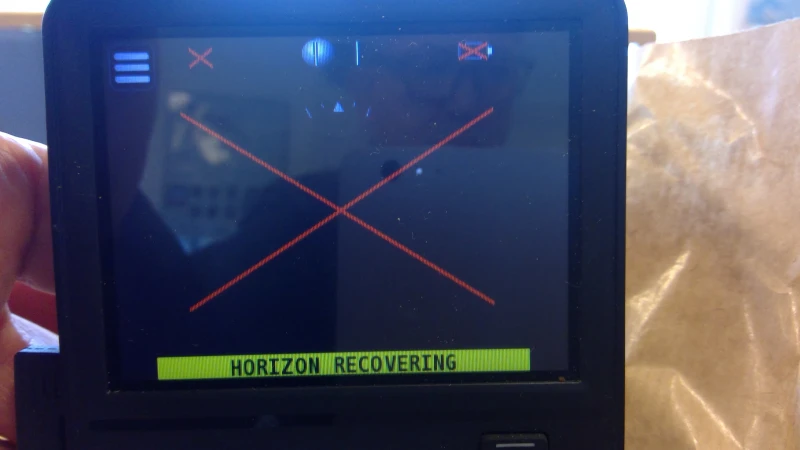

My dynon D3 pocket does not what it used to do. Now I have a red X over battery and a small red x in the left side of the screen , and and a red x over the entire screen.
The red X indicators on the Dynon D3 typically signal an issue with attitude indication, often caused by improper alignment. To resolve this:
1. Ensure the D3 is correctly oriented in the yaw axis and not pointed left or right toward the pilot.
2. Redo the alignment process to correct the displayed attitude.
If this does not resolve the issue, further troubleshooting or support may be needed.
This answer is automatically generated
