Dynon SkyView HDX System Configuration Manual
For beechcraft bonanza p35 - v35b
Hide thumbs
Also See for SkyView HDX System:
- System installation manual (374 pages) ,
- Airplane flight manual supplement (98 pages) ,
- Equipment installation record (10 pages)
Subscribe to Our Youtube Channel
Related Manuals for Dynon SkyView HDX System
Summary of Contents for Dynon SkyView HDX System

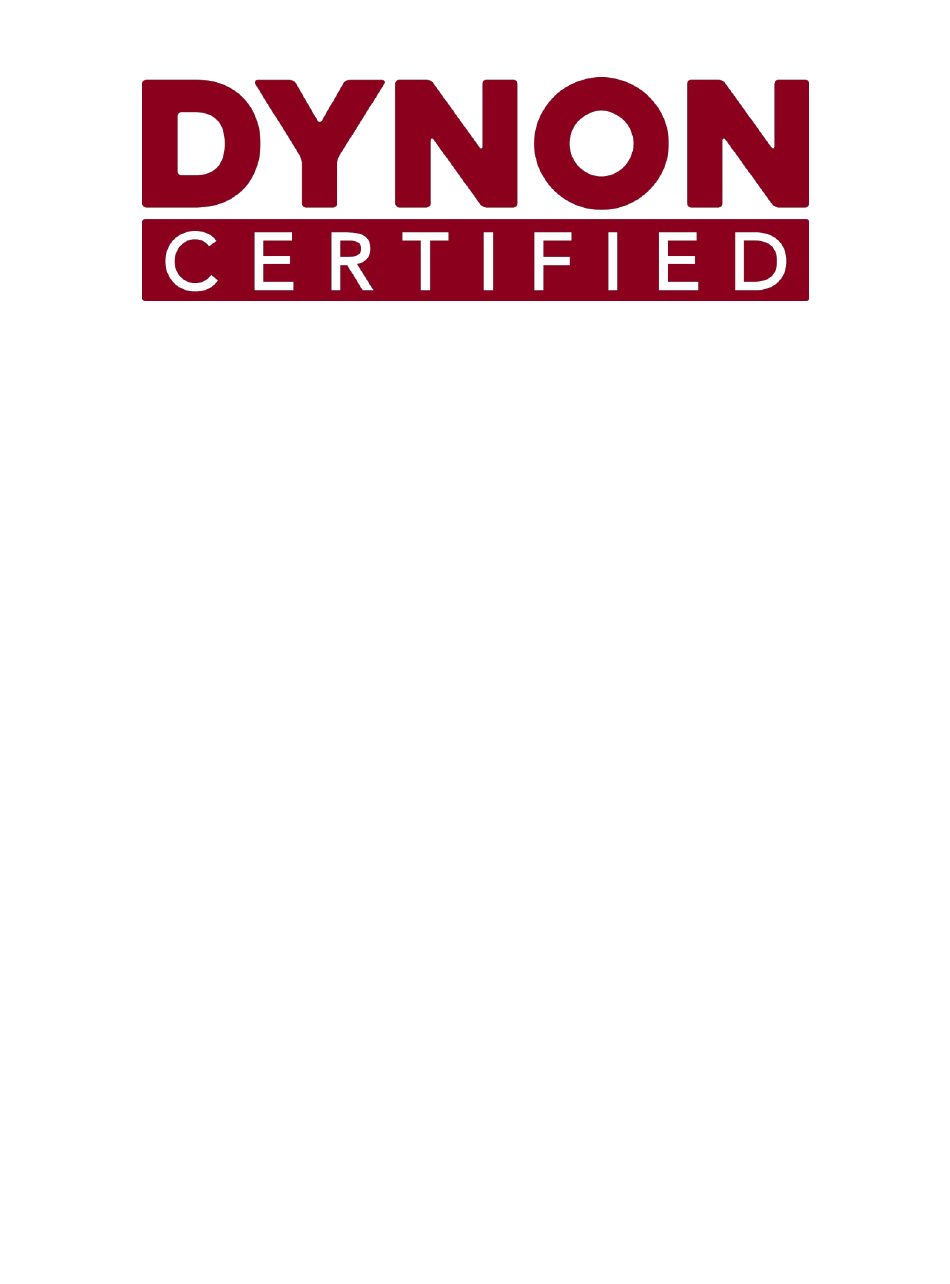

- Page 1 SkyView HDX System Configuration Manual Beechcraft Bonanza P35 - V35B 103738-000 Revision A 5/15/2019 Copyright © 2019 by Dynon Avionics, Inc. Dynon grants third parties’ permission to print this document...
- Page 3 Information in this document is subject to change without notice. Dynon Avionics reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes.
- Page 4 Revision History CHANGE DATE Initial Release for Beechcraft Models P35 through V35B 328457 5/15/2019 Page | ii SkyView HDX System Configuration Manual; Beechcraft Bonanza P35 - V35B, Revision A...
- Page 5 43.13-2B Acceptable Methods, Techniques and Practices - Aircraft Alterations 103488-000 Wiring Diagram, Typical HDX Dual Display 103738-000 - Rev A - SkyView HDX System Configuration - Data - Bonanza P35-V35B.dfg SkyView HDX System Configuration Manual; Beechcraft Bonanza P35 - V35B, Revision A...
-
Page 6: Table Of Contents
Transponder Setup Menu Configuration ..............20 Traffic Setup Menu Configuration ................21 3.10 COM Radio Setup Menu Configuration ..............21 3.11 Hardware Calibration Menu Configuration ..............21 Page | iv SkyView HDX System Configuration Manual; Beechcraft Bonanza P35 - V35B, Revision A... -
Page 7: Introduction
103738-000 – Rev A - SkyView HDX System Configuration – Bonanza P35-V35B.dfg This file, when loaded in an airplane equipped with the Dynon SkyView HDX system, will: • Configure all sensors to factory delivered values for the V35B. Edits may be required for other engines. -
Page 8: System Software
AP performance. Note that this log is very big – over 500 MB – and takes minutes to save to a USB flash drive. Unless directed to export this log by Dynon Avionics, there is no reason to do so Page | 2 SkyView HDX System Configuration Manual;... -
Page 9: Configuring Skyview Hdx Using The Setup Menu System
• AIRCRAFT INFORMATION • MEASUREMENT UNITS • TIME • ARINC-429 • SCREEN LAYOUT SETUP • PRIMARY COM • DISPLAY COM IN TOP BAR • DATA LOG SETUP SkyView HDX System Configuration Manual; Beechcraft Bonanza P35 - V35B, Revision A Page | 3... - Page 10 Network Load operation replaces each of the module’s software with a fresh copy. This is done whenever software corruption is thought to be the source of misbehavior. Page | 4 SkyView HDX System Configuration Manual; Beechcraft Bonanza P35 - V35B, Revision A...
- Page 11 RS232 capable devices. To configure in accordance with the Dynon provided Typical HDX Dual Display Wiring Diagram, serial ports 1, 2 and 5 should be configured as shown in Figure 3, Figure 4, and Figure 5: Figure 2 SERIAL PORT SETUP Menu SkyView HDX System Configuration Manual;...
- Page 12 Figure 3 SERIAL PORT 1 Configuration Figure 4 SERIAL PORT 2 Configuration Page | 6 SkyView HDX System Configuration Manual; Beechcraft Bonanza P35 - V35B, Revision A...
- Page 13 Figure 5 SERIAL PORT 5 Configuration 3.2.5 Audio Setup Menu The AUDIO SETUP menu controls the behaviors of all the SkyView audio annunciations. Configure each item according to Figure 6: SkyView HDX System Configuration Manual; Beechcraft Bonanza P35 - V35B, Revision A Page | 7...
- Page 14 NUMBER should not include dashes (-) or spaces. NOTE: Ensure that 0 is not used in place of O, and O is not used in place of 0. Page | 8 SkyView HDX System Configuration Manual; Beechcraft Bonanza P35 - V35B, Revision A...
- Page 15 Insert the feet per minute the airplane descends at the best glide airspeed. This generates the maps glide circle display. • Weight & Balance See Installation Manual. • Maintenance Log See Installation Manual. 3.2.7 Measurement Units Menu SkyView HDX System Configuration Manual; Beechcraft Bonanza P35 - V35B, Revision A Page | 9...
- Page 16 If two COM radios are installed, only one can be displayed on the Top Bar and receive a frequency setting when the APT→COM button is pushed in the MAP MENU. Page | 10 SkyView HDX System Configuration Manual; Beechcraft Bonanza P35 - V35B, Revision A...
-
Page 17: Local Display Setup Menu Configuration
• DISPLAY HARDWARE INFORMATION • BRIGHTNESS SETUP • TOP BAR SETUP • GPS FIX STATUS • BATTERY BACKUP (SV-BAT-320) STATUS • LICENSE • VIDEO INPUT • TOUCH SETUP SkyView HDX System Configuration Manual; Beechcraft Bonanza P35 - V35B, Revision A Page | 11... - Page 18 3.3.5 GPS Fix Status GPS Fix Status provides information about the quality of the GPS signals being received, and the number of satellites in view. Page | 12 SkyView HDX System Configuration Manual; Beechcraft Bonanza P35 - V35B, Revision A...
-
Page 19: Pfd Setup Menu Configuration
This page has a list of all configured SkyView ADAHRS modules and their respective status. The ADAHRS module used as the PFD’s source of data can be selected. SkyView HDX System Configuration Manual; Beechcraft Bonanza P35 - V35B, Revision A Page | 13... - Page 20 3.4.6 Flight Path Marker Enter this page to enable/disable display of the flight path marker. Configure the Flight Path marker as desired. Dynon recommends that you enable the Flight Path Marker as it is a valuable safety enhancing tool. Page | 14...
- Page 21 3.4.7 Extreme Pitch Warning Enter this page to enable/disable display of the extreme pitch warning indicators. Dynon recommends that you enable the Flight Path Marker as it is a valuable safety enhancing tool. 3.4.8 Angle of Attack Enter this page to enable/disable display of the Angle of Attack indicator. The Angle of Attack indicator requires the angle of attack sensor to be installed.
-
Page 22: Ems Setup Menu Configuration
As all the above menus have specific configuration requirements in order to create the certified engine presentation, Dynon provided configuration files have been created and are stored in the CONFIGURATION FILES folder that will configure Engine Monitoring System (EMS) to appear as it has been certified to appear by the FAA. - Page 23 Dynon Avionics SV-AP-PANEL to be active. Figure 12 Autopilot Controls Configuration 3.7.3 Roll Axis Configure the Roll axis according to Figure 13. SkyView HDX System Configuration Manual; Beechcraft Bonanza P35 - V35B, Revision A Page | 17...
- Page 24 3.7.4 Pitch Axis Configure the Pitch axis according to Figure 14. Figure 14 Pitch Axis Configuration 3.7.5 Yaw Axis Configure the Yaw axis according to Figure 15. Page | 18 SkyView HDX System Configuration Manual; Beechcraft Bonanza P35 - V35B, Revision A...
- Page 25 Chooses the SINGLE CUE (INVERTED V) or DUAL CUE (CROSS BARS) mode of flight director to be displayed on the PFD (see Figure 17). Configure the Flight Director as desired. SkyView HDX System Configuration Manual; Beechcraft Bonanza P35 - V35B, Revision A Page | 19...
-
Page 26: Transponder Setup Menu Configuration
Figure 18 Go Around Mode Configuration Transponder Setup Menu Configuration This menu contains options that are used to set up and configure the SV-XPNDR-261 transponder module, if installed. Refer to SkyView HDX System Installation Manual for more detail. Page | 20... -
Page 27: Traffic Setup Menu Configuration
Refer to SkyView HDX System Installation Manual for instructions on how to accomplish these calibrations. 3.11.3 AP Servo Calibration Enter this menu for autopilot servo calibration. Refer to SkyView HDX System Servo Installation Manual for instructions on how to accomplish these calibrations. 3.11.4 Trim Motor Configuration Electric trim is not currently supported for certified aircraft.
