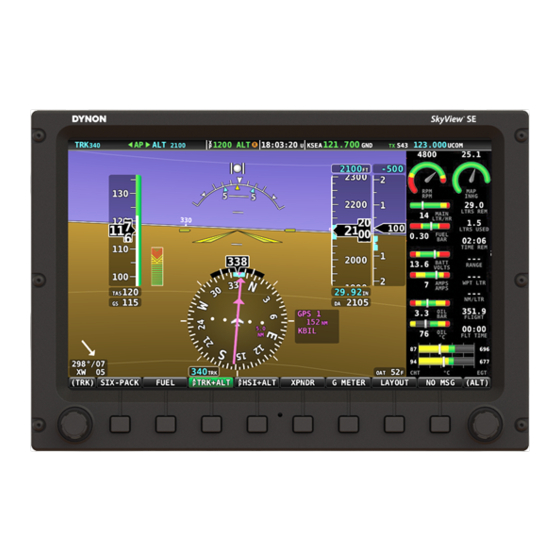

SkyView SE
SkyView Classic
SkyView Touch
SkyView HDX
Third-Party Device Connection and
Configuration
Reference Guide
104215-000
Rev A
7/5/2022
Copyright © 2022 by Dynon Avionics, Inc.
Dynon Avionics grants third parties' permission to print this document

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SkyView SE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynon SkyView SE

Summary of Contents for Dynon SkyView SE

  • Page 1 SkyView SE SkyView Classic SkyView Touch SkyView HDX Third-Party Device Connection and Configuration Reference Guide 104215-000 Rev A 7/5/2022 Copyright © 2022 by Dynon Avionics, Inc. Dynon Avionics grants third parties' permission to print this document...
  • Page 2 Information in this document is subject to change without notice. Dynon Avionics reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes.
  • Page 3 Revision History DATE APPROVED DESCRIPTION OF CHANGE 7/5/2022 ECO 342230 Initial Release Third-Party Device Connection and Configuration - Reference Guide, Rev A Page | iii...

  • Page 4: Table Of Contents

    Table of Contents Introduction ....................1 Using this Manual ......................1 Document Iconography ....................1 Reference Documents ....................1 Connecting and Configuring ARINC-429 GPS Navigators ..... 2 Electrical Connections ....................2 GPS Navigator Configuration Settings ................. 5 SkyView Configuration Settings ................... 6 Connecting and Configuring Serial Devices ..........

  • Page 5: Introduction

    This document is a supplemental reference to the Skyview System Installation Guide document. 1.1 Using this Manual To reduce paper, Dynon does not provide a printed version of this manual. However, Dynon grants permission to third parties to print this manual, as necessary. The most recent PDF version is available for download at dynon.com/docs.

  • Page 6: Connecting And Configuring Arinc-429 Gps Navigators

    Connecting and Configuring ARINC-429 GPS Navigators This section provides information for connecting and configuring SkyView and third-party GPS Navigators using Dynon's SV-ARINC-429 interface module. For information about installing the SV-ARINC-429 and connecting it to SkyView, see the Skyview System Installation Manual document.
  • Page 7 2.1.2 Garmin GNS 400/500 Series The following diagram depicts the electrical connections between Garmin GNS 400/500 series devices and an SV-ARINC-429. Figure 2: Typical GNS 400/500 Series to SV-ARINC-429 Connections 2.1.3 Garmin GNS 480 The following diagram depicts the electrical connections between a Garmin GNS 480 device and an SV-ARINC-429.
  • Page 8 2.1.4 Garmin GTN 600/700 Series The following diagram depicts the electrical connections between a Garmin GNS 400/500 series devices and an SV-ARINC-429. Figure 4: Garmin GTN 600/700 Series to SV-ARINC-429 Electrical Connections 2.1.5 Garmin GNC Series The following diagram depicts the electrical connections between Garmin GNC series devices and an SV-ARINC-429.

  • Page 9: Gps Navigator Configuration Settings

    2.2 GPS Navigator Configuration Settings This section provides configuration information for GPS Navigators that interface with SkyView via Dynon's SV-ARINC-429 interface module. 2.2.1 Example GPS Navigator Configuration The following is a general procedure for setting up a GPS Navigator to communicate with SkyView.

  • Page 10: Skyview Configuration Settings

    5. Set the following parameters for the RS 232 port # used during electrical connection (may also be referred to as RS232 #, CHNL #, DATA #, etc.): • Input = Off • Output = Aviation (also referred to as Aviation #, Aviation Output #, etc.) 6.
  • Page 11 After identifying the device, INPUT SPEED parameter (HIGH or LOW) needs to be set according to output speed of the ARINC device(s). The SV-ARINC-429 has one ARINC output channel with 2 sets of pins on the connector for wiring convenience. If the ARINC device(s) can accept commands, configure OUTPUT SPEED appropriately.
  • Page 12 • ALLOW AUTO SWITCH: NO. 2.3.2 Optional SkyView Configuration Settings If a Dynon SV-XPNDR-261 is being used for ADS-B Out capability, an additional serial output on the GPS Navigator should be set to "ADS-B+ OUT" format. That serial port should be connected to Pin 3 on the SV-XPNDR-261’s harness via a 1.21k resistor, as described in the...

  • Page 13: Connecting And Configuring Serial Devices

    ADAHRS and EMS data that can be output by SkyView. Transponders with serial altitude input can be directly connected to a display unit. To interface a SkyView display to a gray code transponder, a Dynon Avionics Encoder Serial-to-Gray Code Converter Module (Dynon Avionics P/N 100362-000) is required (see Section 3.2.4: Gray Code...

  • Page 14: General Serial Connection Procedure

    Table 1: SkyView Display Unit Serial Port Connections SERIAL WIRE FUNCTION D37 HARNESS WIRE COLORS PORT Brown with Orange stripe Brown with Violet stripe Yellow with Orange stripe Yellow with Violet stripe Green with Orange stripe Green with Violet stripe Blue with Orange stripe Blue with Violet stripe SV-GPS-250/2020 TX...

  • Page 15: Traffic Devices

    6. When the serial port configuration is complete, perform a final check: a. Power down all displays except #1. Verify all serial port devices are working - transponder, GPS, radios, etc. b. Power down all displays except #2. Verify all serial port devices are working - transponder, GPS, radios, etc.
  • Page 16 5. ZAON device. 6. SV-ADSB-470 with an incomplete traffic portrait (ADS-B NO RADAR): (Same as SV-ADSB-472 above.) 3.2.1 Garmin GTX 300 Series To enable traffic on SkyView with a Garmin GTX 300 series transponder, both the serial TX and serial RX between the SkyView display unit(s) and the device must be connected and configured.
  • Page 17 SkyView supports serial external altitude encoders that use the Icarus/Garmin format. 3.2.3.1 Using Non-Dynon Altitude Data The SV-XPNDR-261/262 transponder can use data from an external altitude encoder instead of the internal SkyView ADAHRS-generated pressure altitude. However, the altitude displayed by SkyView on the PFD page is always sourced from SkyView ADAHRS data.
  • Page 18 9600 Format ALT, space, five (5) altitude bytes, carriage return Example message ALT 05200[CR] Table 3: Dynon Avionics Serial-to-Gray Code Converter Format DYNON AVIONICS CONVERTER Used by Dynon Avionics Encoder Serial-to-Parallel Converter, Garmin AT (formerly UPS Aviation Technologies) Garmin SL70 (same unit as Garmin AT)

  • Page 19: Nav / Com Devices

    3.2.4 Gray Code Transponders To use SkyView’s altitude encoder functionality with a Gray Code transponder, configure the serial port on each display SETUP MENU > SYSTEM SETUP > SERIAL PORT SETUP > SERIAL PORT X SETUP: • Select SERIAL IN DEVICE: and select the device from the list. •...
  • Page 20 To configure SkyView: 1. Enter SETUP MENU > SYSTEM SETUP > SERIAL PORT SETUP > SERIAL PORT '#' SETUP > SERIAL IN DEVICE, and then select VAL AVIONICS NAV 2000. This will automatically set the SERIAL IN/OUT BAUD RATE and SERIAL OUT DEVICE. 2.
  • Page 21 4. Enter SETUP MENU > SYSTEM SETUP > PRIMARY COM, and then select GARMIN / APOLLO SL30. 5. Enter SETUP MENU > SYSTEM SETUP > DISPLAY COM IN TOP BAR, and then select YES. 3.3.3 GNC 255 COM Radio / NAV Receiver SkyView can send frequencies to the GNC 255’s standby frequency.
  • Page 22 3.3.4 Garmin SL40 COM Radio SkyView can display COM radio information from the SL40 on the SkyView top bar and send COM frequencies to the SL40 (TUNE COM). To connect and configure the SL40: 1. Connect SERIAL RX Pin 10 (RxD1) to a SkyView serial TX. 2.
  • Page 23 To configure SkyView: 1. Enter SETUP MENU > SYSTEM SETUP > SERIAL PORT SETUP > SERIAL PORT '#' SETUP > SERIAL IN DEVICE, and then select GARMIN GTR 200 or GARMIN GTR 225 A/B. This will automatically set the SERIAL IN/OUT BAUD RATE and SERIAL OUT DEVICE.
  • Page 24 3.3.7 f.u.n.k.e. Avionics ATR833 SkyView can display COM radio information from the ATR833 on the SkyView top bar and push COM frequencies to the ATR833 (TUNE COM). To connect and configure the SL40: 1. Connect DATA RX Pin 9 (D25) to a SkyView serial TX. 2.
  • Page 25 To configure SkyView: 1. Enter SETUP MENU > SYSTEM SETUP > SERIAL PORT SETUP > SERIAL PORT '#' SETUP > SERIAL IN DEVICE, and then select MGL V6/V10. This will automatically set the SERIAL IN/OUT BAUD RATE and SERIAL OUT DEVICE. Although there is no V6/V10 serial TX to SkyView serial RX connection, SERIAL IN DEVICE must be configured as described.

  • Page 26: Portable Gps Devices

    3.4 Portable GPS Devices SkyView can accept GPS data in NMEA format from other GPS devices' data streams. 3.4.1 Bendix / King SkyMap III To connect and configure SkyMap III: 1. Connect DATA OUT (TX DATA) Pin 2 to a SkyView serial RX. 2.

  • Page 27: Emergency Location Transmitter (Elt) Devices

    To configure SkyView: 1. Enter SETUP MENU > SYSTEM SETUP > SERIAL PORT SETUP > SERIAL PORT '#' SETUP > SERIAL IN DEVICE, and then select the Garmin GPS device. This will automatically set the SERIAL IN/OUT BAUD RATE and SERIAL OUT DEVICE. •...

  • Page 28: Vertical Power Vp-X

    3.6 Vertical Power VP-X SkyView can interface with the Vertical Power VP-X system to provide robust monitoring and control of the aircraft's electrical system via SkyView. To use this feature, a VP-X License (SV-VPX-290) must be purchased. For full VP-X functionality, an EMS module is required because VP-X information is displayed in the EMS window.
  • Page 29 The SV-HARNESS-D37 harness for each SkyView display unit contains a twisted pair of red power wires and a twisted pair of black ground wires. The pair of wires are a single power input and a single ground connection and must be connected to a single VP-X input when using the VP-X to provide power to SkyView display units.
  • Page 30 3.6.3 License Information VP-X features are enabled on your SkyView system by purchasing and installing an VP-X License (SV-VPX-290). Only one VP-X License is needed in a SkyView system, no matter how many display units are attached. That license is applied to only one display, but that display stores the license information for the entire system.
  • Page 31 3.6.4 Purchasing and Installing a VP-X License (SV-VPX-290) Display and control of VP-X is not supported in SkyView SE. If intending to install and use SkyView SE, do not purchase and install a VP-X or an VPX License. An VPX License can be purchased and applied to your system in one of two ways: Call Dynon directly at 425-402-0433 (have a SkyView display unit model and serial number ready).
  • Page 32 VP-X Settings Most VP-X setup – such as setting circuit breaker limits – is NOT done via SkyView, but instead via a Windows-based application called VP-X Configurator. See your VP-X documentation for full VP-X installation and setup information. Although VP-X trim and flaps calibrations are not used by SkyView, leaving any of the VP-X trim or flaps end points or neutral positions to “0”...
  • Page 33 3.6.6 Post Installation Checks Complete the following before using the VP-X system: • Follow all installation, configuration, and test procedures as instructed by the VP-X documentation. • Ensure that your VP-X system is powered on and functioning normally. • On a SkyView display unit that is displaying the Engine Page (enabled by toggling MENU >...

  • Page 34: Appendix 1: Nmea Out Data Formats

    Appendix 1: NMEA OUT Data Formats NMEA output data consists of industry standard NMEA 0183 Version v4.00 sentences. A reference for Version 4.00 of the standard can be found here: www.nmea.org/content/nmea_standards/nmea_083_v_400.asp 4.1.1 NMEA OUT (BASIC) NMEA OUT (BASIC) serial output data consists of GGA, GSA, GSV, RMC, and VTG sentences nominally output at a rate of 1 Hz.
