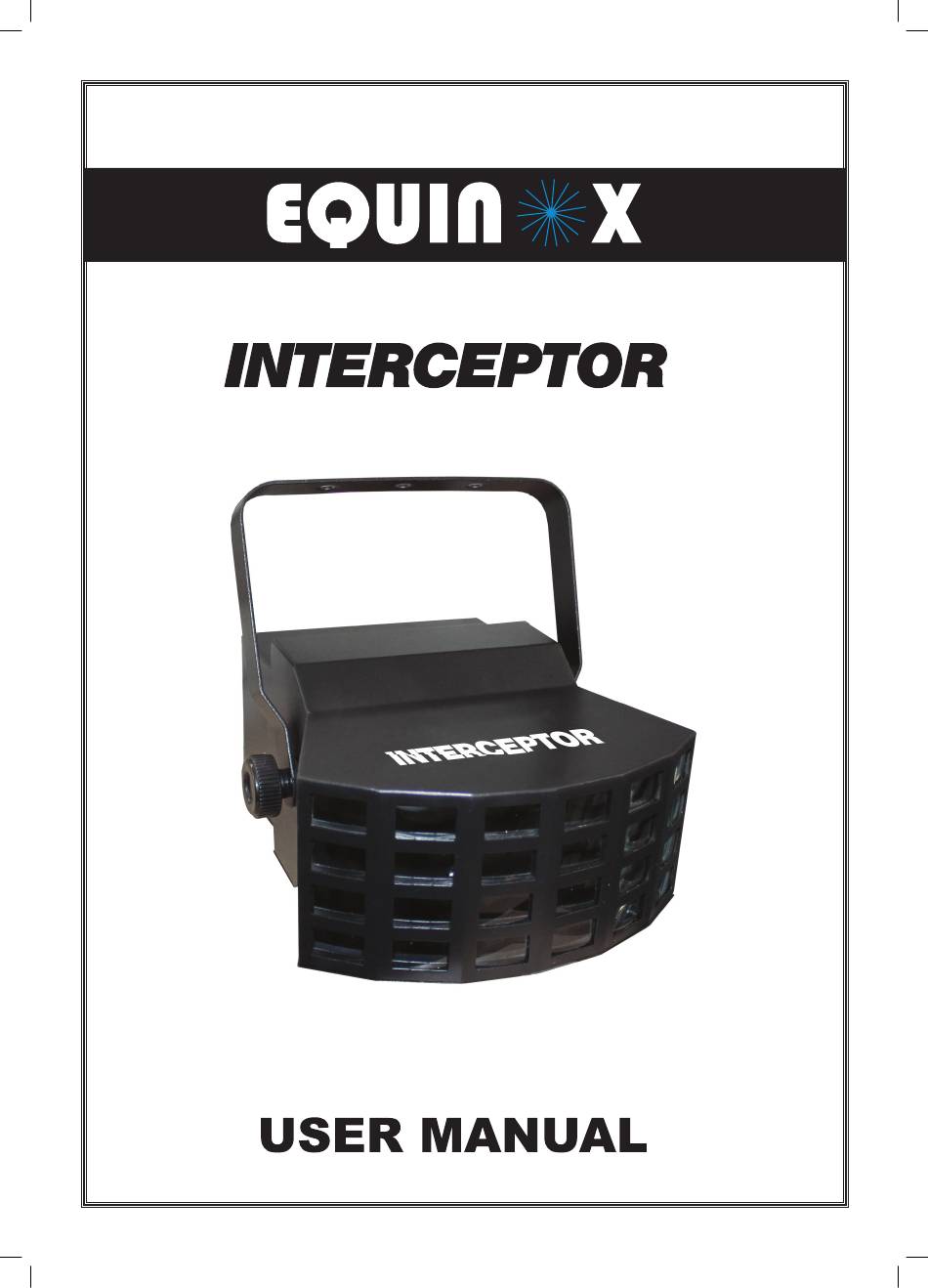

- Page 1 ORDER CODE: EQLED34...
- Page 2 Equinox Interceptor Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
- Page 3 Equinox Interceptor Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 Equinox Interceptor Technical specifications You should find inside the carton the following items: 1, Equinox Interceptor 2, Power cable 3, User manual Technical Specifications: DMX channels: 3 Operating modes: 1, Sound Activated 2, DMX 3, Master/Slave 5 x 3W Mega Bright LEDs (1R, 1G, 1B, 1W, 1A)
- Page 5 Equinox Interceptor Operation modes Operation modes: DMX mode: To access the DMX mode, press the “MODE” button on the LED display to show “Add”. Now use the “UP” and “DOWN” buttons to set the desired DMX address setting from “001 - 512”.
- Page 6 DATA Cable (DMX cable) requirements (for DMX operation): • The Equinox Interceptor can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
- Page 7 Equinox Interceptor DMX Set Up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
