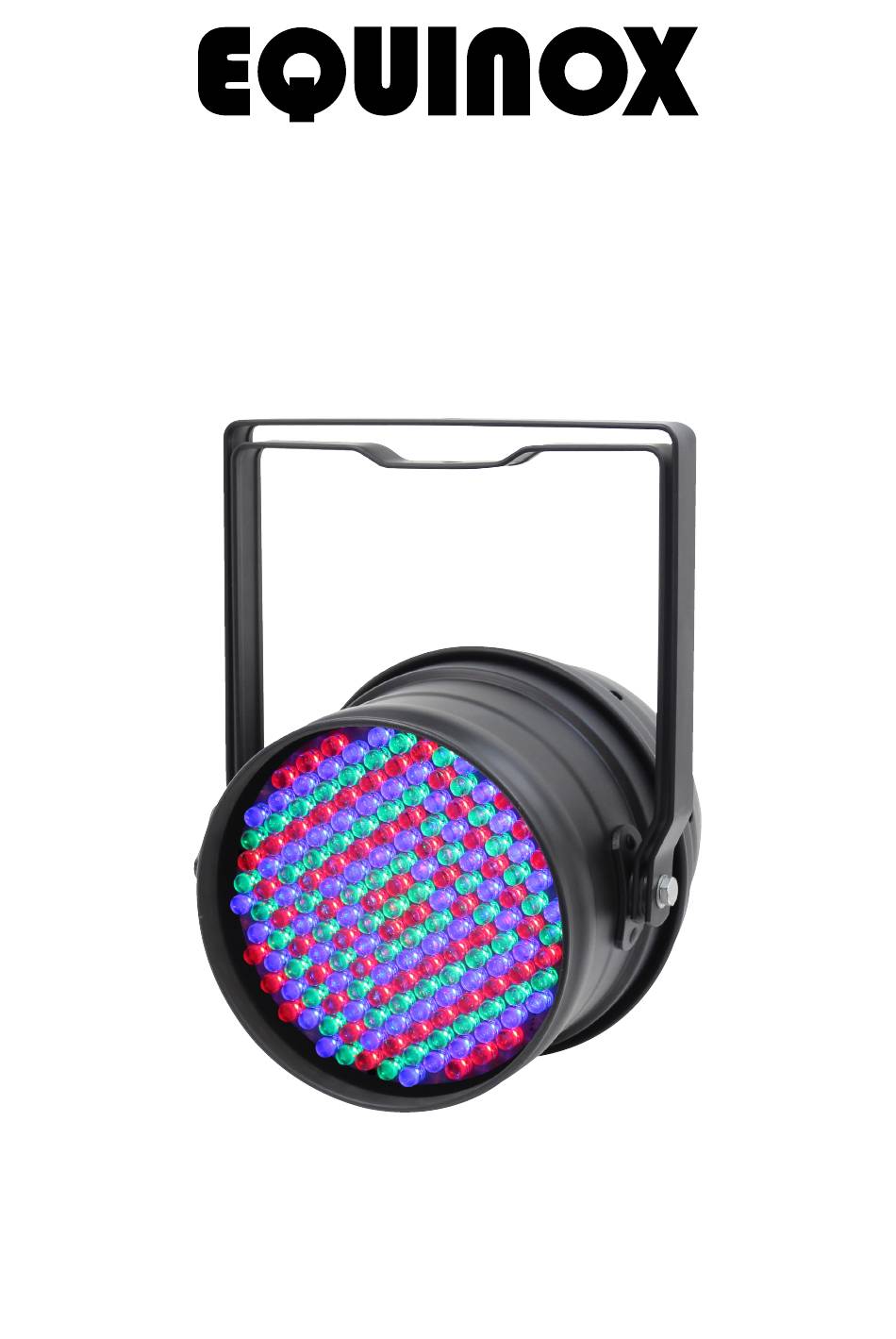

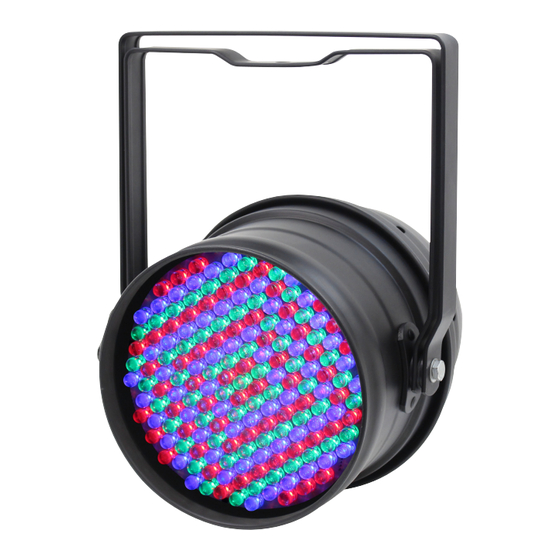

- Page 1 LED Par 64 User Manual Order codes: EQLED016 (Black Housing) EQLED016A (Polished Housing)
-
Page 2: Safety Advice
• Only use the equipment indoors. • If your product fails to function correctly, stop use • Do not expose to flammable sources, liquids or gases. immediately. Pack the unit securely (preferably in the original packing material), and return it to your Pro Light • Always disconnect the power from the mains when dealer for service. equipment is not in use or before cleaning! Only handle the power-cable by the plug. Never pull out the plug by • Only use fuses of same type and rating. pulling the power-cable. • Repairs, servicing and power connection must only be • Make sure that the available voltage is between carried out by a qualified technician. THIS UNIT CONTAINS 100~240V, 50/60Hz. NO USER SERVICEABLE PARTS. • Make sure that the power cable is never crimped or • WARRANTY: One year from date of purchase. damaged. Check the equipment and the power cable periodically. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk LED Par 64 User Manual... - Page 3 • 0 - 100% dimming and variable strobe • Bracket allows for multiple rigging and floor standing applications • 4 push button menu with LED display • IEC power input/output • 3-Pin XLR input/output • Convection cooled 25° - Lux FULL ON 7160 1785 Specifications 37.8 Power consumption 4960 1240 1300 51.8 Power supply 100~240V, 50/60Hz Fuse F1A 250V Dimensions 350 x 275 x 300mm 25° Weight 1.6kg Order codes EQLED016 - Black housing EQLED016A - Polished housing 275mm 300mm www.prolight.co.uk LED Par 64 User Manual...
-
Page 4: Technical Specifications
Technical specifications www.prolight.co.uk PAR 64 SAFETY MENU DOWN ENTER INPUT OUTPUT 01 - LED display 05 - IEC power input 02 - Function buttons 06 - IEC power output In the box: 1 x fixture, 03 - 3-Pin DMX input 07 - Fuse F1A 250V 09 - Bracket 1 x power cable, & 1 x user manual 04 - 3-Pin DMX output 08 - Bracket knob 10 - Safety eye www.prolight.co.uk LED Par 64 User Manual... -
Page 5: Dmx Settings
0 0 1 b 2 5 5 d I 1 d I N N Master dimmer d I 9 b L n d Blackout o F F S L A V Slave mode www.prolight.co.uk LED Par 64 User Manual... - Page 6 Static colour mode: To access the static colour mode, press the “MENU” button and use the “UP” and “DOWN” buttons St@t to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” S 01 S 07 buttons to choose one of the static colours between Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Colour macros: Blue Cyan White Green Yellow Magenta Auto modes: To access the auto modes, press the “MENU” button and use the “UP” and “DOWN” buttons to show Auto on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to Au 1 Au 2 choose one of the auto modes between Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk LED Par 64 User Manual...
- Page 7 To access the colour mix mode, press the “MENU” button to show on the LED display. r001 Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose Press the “ENTER” button and use the “UP” and “DOWN” buttons to select the brightness of Red between . Value: 000 - 255 (000 = low, 255 = high). Now press the “ENTER” button and repeat for Green, and Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Master dimmer: To access the master dimmer setting, press the “MENU” button and use the “UP” and “DOWN” buttons dINN to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” dI 1 dI 9 buttons to select the brightness between Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Please note: this overrides the brightness for static colour, auto, sound and colour mix modes. www.prolight.co.uk LED Par 64 User Manual...
-
Page 8: Master/Slave Mode
Operating instructions Blackout setting: To access the blackout when DMX fails setting, press the “MENU” button and use the “UP” and “DOWN” bLnd buttons to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between or . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Master/slave mode: To set the master unit, press the “MENU” button and use the “UP” and “DOWN” buttons to select one of the program modes. To set the other units in slave mode, press the “MENU” button and use the “UP” and “DOWN” buttons to SLAV show on the LED display. Press the “ENTER” button to confirm the setting. The unit will now run in sequence with the master unit. To exit out of any of the above options, press the “MENU” button. Please ensure that all slave units are set to the same DMX channel mode as the master unit. www.prolight.co.uk LED Par 64 User Manual... -
Page 9: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk LED Par 64 User Manual... -
Page 10: Line Termination
5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk LED Par 64 User Manual... -
Page 11: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk LED Par 64 User Manual... - Page 12 LED Par 64 User Manual...
