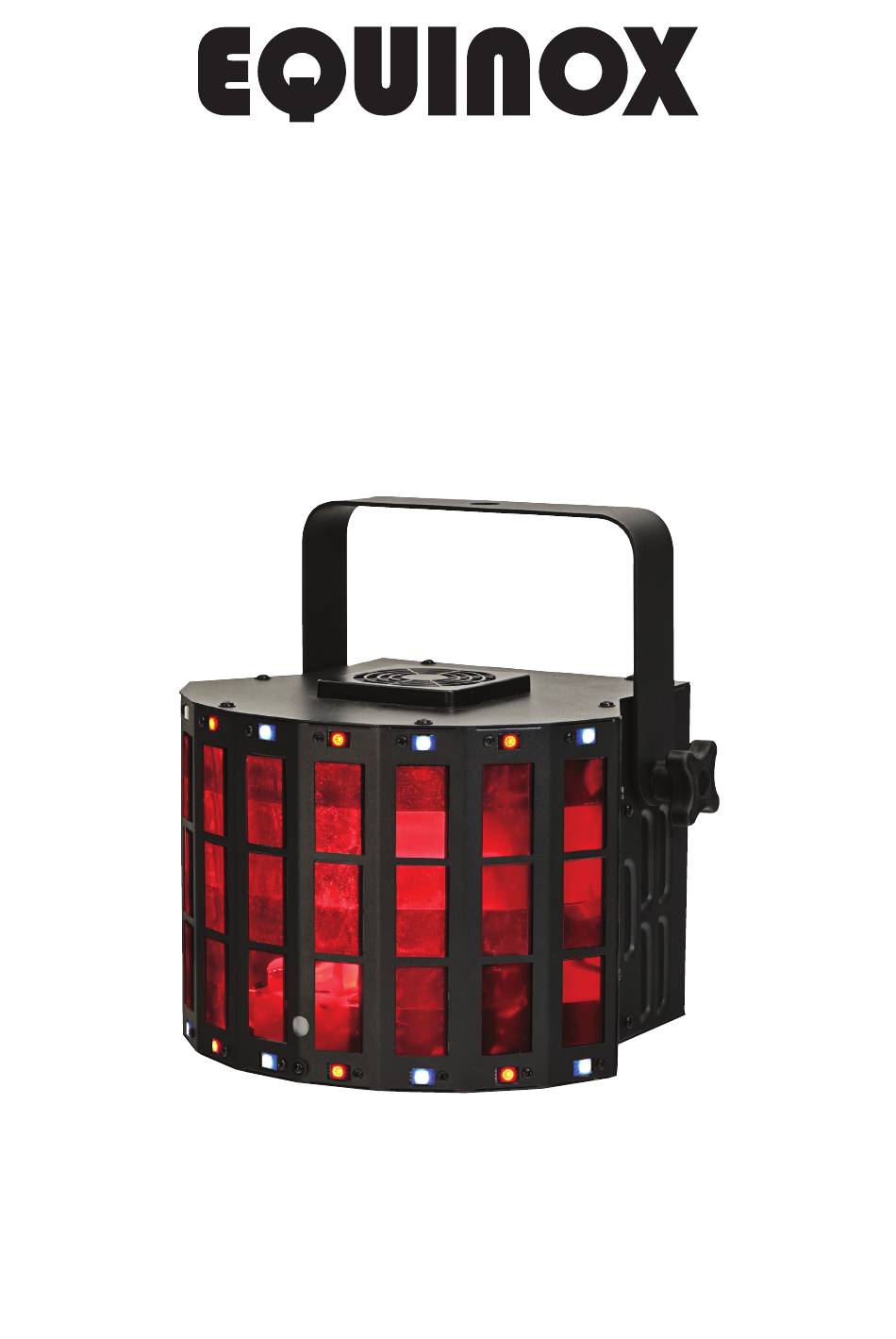

- Page 1 Interceptor XP User Manual Order code: EQLED451...
- Page 2 Please note: These fixtures are intended for stage lighting and entertainment applications only, and are not intended for extended periods of use, including but not limited to house-light, industrial or architectural applications and should only be operated with short duty cycles. www.prolight.co.uk Interceptor XP User Manual...
- Page 3 Health and Safety Executive (HSE) in “The Safety of Laser Lighting Displays”. Information on this guidance can be found on the following website: https://www.hse.gov.uk/pubns/indg224.htm www.prolight.co.uk Interceptor XP User Manual...
- Page 4 Product overview & technical specifications Interceptor XP The Interceptor XP is a 3-in-1 effect covering areas in multicoloured, widely dispersed beams of light that rotate and twist at varying speeds via its 48 lenses. Further bolstering this fixtures offering is a red/green laser source and 16 x 0.5W RGB LEDs to provide strobe effects.
- Page 5 03 - Mode indicators 10 - 3-Pin DMX input 04 - LED Display 11 - 3-Pin DMX output 05 - Function buttons 12 - Safety eye 06 - Hanging bracket 13 - Wireless DMX USB port www.prolight.co.uk Interceptor XP User Manual...
- Page 6 2. Mount the fixture onto your truss system via the clamps and tighten to ensure that it’s secure. 3. Pull the safety cable through the safety cable hole located on the back of the fixture and around the truss. www.prolight.co.uk Interceptor XP User Manual...
- Page 7 Derby rotation (slow-fast) N 2 5 5 Lasers off Red laser on Green laser on Red + green laser on Lasers strobe (slow - fast) S 9 9 S 1 0 0 Laser strobe (sound active) www.prolight.co.uk Interceptor XP User Manual...
- Page 8 L A C F A I L DMX fail h o L d o F F S o u n Sound mode fail L A S t r E S t Factory reset y E S www.prolight.co.uk Interceptor XP User Manual...
- Page 9 Show 1 (Derby, strobe and laser) 045-079 Show 2 (Derby and strobe) 080-114 Show 3 (Derby and laser) 115-149 Show 4 (Strobe and laser) 150-184 Show 5 (Derby) 185-219 Show 6 (Strobe) 220-255 Show 7 (Laser) 000-255 Speed (slow-fast) www.prolight.co.uk Interceptor XP User Manual...
- Page 10 230-239 blue chase 11 (slow-fast) Red chase 1 010-019 (slow-fast) Red, green, 240-249 blue chase 12 Strobe Green chase 1 020-029 (slow-fast) (slow-fast) Red, green, Blue chase 1 030-039 250-255 blue chase 13 (slow-fast) (slow-fast) www.prolight.co.uk Interceptor XP User Manual...
- Page 11 Green on, red 170-209 strobe (CH8) Red + green alter- 210-255 nate strobe (CH8) Laser 000-009 No function 010-255 Strobe (slow-fast) 000-004 No function Rotation clockwise 005-127 (slow-fast) 128-133 Rotation stop Rotation anti- 134-255 clockwise (slow-fast) www.prolight.co.uk Interceptor XP User Manual...
- Page 12 LED display. Press the “ENTER” button to confirm the setting. The unit will now run in sequence with the primary unit. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Interceptor XP User Manual...
- Page 13 LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between (reset) or . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Interceptor XP User Manual...
- Page 14 04 - Sets the derby colour in manual mode (use the +/– to select a colour) - laser is always on in this mode 05 - Press to pause the running of auto or sound mode 06 - Auto program speed www.prolight.co.uk Interceptor XP User Manual...
- Page 15 3 seconds until the LED illuminates white. This indicates the wireless memory has been cleared. If the indicator on the receiving units flashes red quickly this indicates that the signal from the transmitting fixture has been lost. www.prolight.co.uk Interceptor XP User Manual...
- Page 16 Further DMX cables can be purchased from all good sound and lighting suppliers or Prolight Concepts dealers. Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Interceptor XP User Manual...
- Page 17 5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Interceptor XP User Manual...
- Page 18 Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Interceptor XP User Manual...
