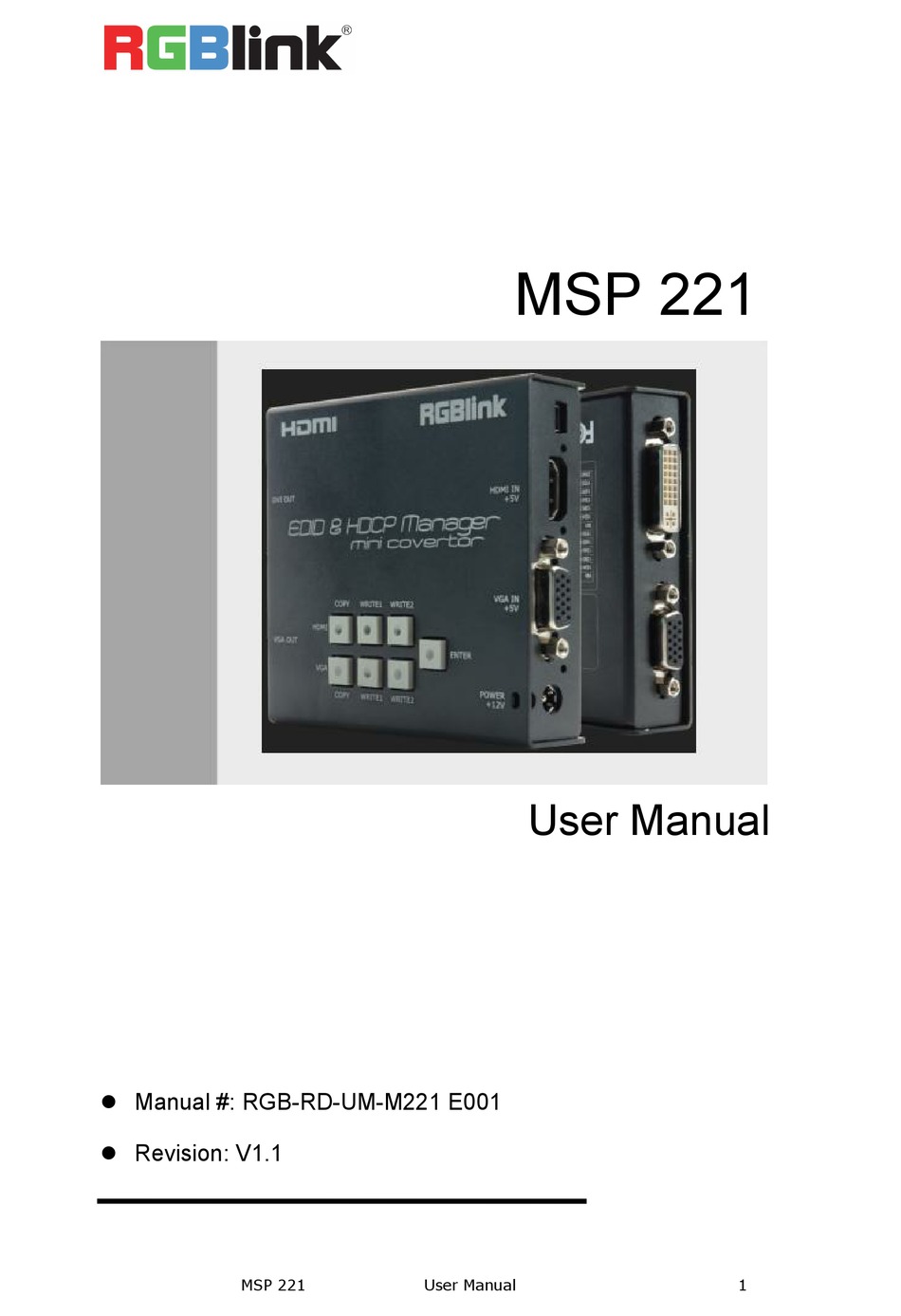

- Page 1 MSP 221 User Manual Manual #: RGB-RD-UM-M221 E001 Revision: V1.1 MSP 221 User Manual...
- Page 2 Technology Co.,LTD. No part can be copied, reproduced or translated without permission. Notice RGBlink provides this manual “as is” without warranty of any kind, no matter expressed or implied, including but not limited to the implied warranties or merchantability and fitness for a particular purpose. RGBlink may make improvements or changes to the products and the programs described in this publication at any time without notice.
- Page 3 30 days after the transfer of risks. In the event of justified notice of compliant, RGBlink can repair the fault or provide a replacement at its own discretion within an appropriate period. If this measure proves to be impossible or unsuccessful, the purchaser can demand a reduction in the purchase price or cancellation of the contract.
- Page 4 Company Address Xiamen RGBlink Science & Technology Co., Ltd. Headquarter: S601~608 Wei ye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Shenzhen office: Floor 11, A1 Building, Baiwang R&D Building, Shahe West Road, Xili Town, Nanshan District, Shenzhen, Guangdong Province, P.R.C...
- Page 5 To avoid fire hazard, use only the fuse having identical type, voltage rating, and current rating characteristics. Refer fuse replacement to qualified service personnel. Do Not Operate in Explosive Atmospheres To avoid explosion, do not operate this product in an explosive atmosphere. MSP 221 User Manual...
- Page 6 Highlights an essential operating procedure, condition or statement. CAUTION The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. MSP 221 User Manual...
- Page 7 Amendment Records The table below lists the changes to the EDID&HDCP Manager User Manual. Format Time ECO# Description Principal V1.0 2/14/2014 0000# Release Vira Modify operation manual and V1.1 5/30/2018 0001# Rainbow communication software guideline. MSP 221 User Manual...
-
Page 8: Table Of Contents
In This Chapter..................21 Input and Other Interface..............22 ①:Power...................... 22 ②④⑥:Indicator..................22 ③: VGA Input....................22 ⑤: HDMI Input....................22 ⑦: USB Interface..................22 Output Interface..................23 ①: DVI Output.................... 23 ②: VGA Output...................23 3. Operation Manual................24 Program Area..................24 MSP 221 User Manual... - Page 9 Functional Description Block Diagram..........28 Input and Output Resolution.............. 28 5. Communication Software Guideline...........29 Running Software.................29 Read EDID....................30 Write EDID....................31 Version......................31 [Video Processor] Options................31 Language.....................31 Admin......................32 Help......................34 A. Specification..................35 B. Contact Information................ 37 MSP 221 User Manual...
-
Page 10: Brief Introduction
Brief Introduction This chapter is designed to introduce you to the MSP 221 User Manual. Areas to be covered are: Chapter Structure How to Use The Manual Terms and Definitions System Overview Application Questions MSP 221... -
Page 11: Chapter Structure
1. Brief Introduction Chapter Structure Chapter Structure The following chapters provide instructions for all aspects of MSP 221 operations. Chapter 1 Brief Introduction Chapter 2 Hardware Orientation Chapter 3 Operation Manual Chapter 4 Back Panel Description Chapter 5 Communication Software Guideline... -
Page 12: How To Use The Manual
Index to jump to specific topics within a chapter. Each page number in the Index is a hyperlink. Should you have any questions regarding the installation or operation of MSP 221, please consult with the factory. Refer to Appendix B on page 34 for “Contact Information”. MSP 221... -
Page 13: Term And Definitions
RJ-45 connectors. CAT 5 cabling supports data rates up to 100 Mbps. CAT 5 is based on the EIA/TIA 568 Commercial Building Telecommunications Wiring Standard. “Color bars”: A standard test pattern of several basic colors (white, MSP 221 User Manual... - Page 14 10Mbps. For LAN interconnectivity, Ethernet is physical link and data link protocol reflecting the two lowest layers of the OSI Reference Model. “Frame”: In interlaced video, a frame is one complete picture. A video MSP 221 User Manual...
- Page 15 “PAL”: Phase Alternate Line. A television standard in which the phase of the color carrier is alternated from line to line. It takes four full pictures (8 fields) for the color-to-horizontal phase relationship to return to the reference point. This alternation helps cancel out phase MSP 221 User Manual...
- Page 16 “SDI”: Serial Digital Interface. The standard based on a 270 Mbps transfer rate. This is a 10-bit, scrambled, polarity independent interface with common scrambling for both component ITU-R 601 and MSP 221 User Manual...
- Page 17 TTL level separate horizontal and vertical sync. The video outputs to a 15-pin HD connector and has a horizontal scan frequency of 31.5 kHz and vertical frequency of 70 Hz (Mode 1, 2) and MSP 221 User Manual...
- Page 18 640×480 with a color palette of 16 bits and 256,000 colors. “YCrCb”: Used to describe the color space for interlaced component video. “YPbPr”: Used to describe the color space for progressive-scan (non-interlaced) component video. MSP 221 User Manual...
-
Page 19: System Overview
It supports 1 HDMI, 1 VGA input, and 1 DVI (compatible HDMI), 1 VGA output. When input HDMI or VGA signal, MSP 221 will directly powered. It supports EDID automatic identification, and supports the function of read EDID file from the USB port, and EDID file copy input . -
Page 20: Application Questions
1. Brief Introduction Application Questions Application Questions RGBlink offers solutions to demand technical problems. Any application questions, or required further information, please contact with our Customer Support Engineers. Refer to Appendix B for contact details. MSP 221 User Manual... -
Page 21: Hardware Orientation
Hardware Orientation In This Chapter This chapter provides detailed information about the MSP 221 hardware. The following topics are discussed: Input and Other Interface Output Interface MSP 221 User Manual... -
Page 22: Input And Other Interface
2. Hardware Orientation Input and Other Interface Input and Other Interface The figure below illustrates the professional interface of MSP 221. ①:Power This device uses the standard 12V/3A power supply. ②④⑥:Indicator Power indicator 2 lights when device has power supply. -
Page 23: Output Interface
DVI output interface, connect to the monitor or LED screen which has DVI interface. (This DVI connect does not support hot-plugging) ②: VGA Output VGA output interface, can be connected to monitor or projector which has VGA interface. MSP 221 User Manual... -
Page 24: Operation Manual
Shown as follows: Operation Instruction Indicator Connect MSP 221 with power, the 7 indicators light one by one, and then all lights are off. EDID Copy With the ability of EDID copy, MSP 221 could copy EDID from other devices, More detail are as follows：... - Page 25 HDMI <WRITE1>. Copy VGA EDID (1) Take Samsung S22B310 LCD display as an example, users could connect MSP 221 VGA output interface with VGA interface of Samsung display by a VGA cable when copying the VGA EDID of Samsung S22B310 display.
-
Page 26: Write Edid
Write EDID Users can write EDID by MSP 221 when writing specific EDID or EDID missing. More detail are as follows： 1. Write HDMI <WRITE1> EDID The default EDID of HDMI <WRITE1> is RGBGDVI. Users could press HDMI <WRITE1> and <ENTER> buttons in turn to realize the EDID writing of RGBDVI. More custom EDID writing refers to AVMSP software (see below). - Page 27 MSP 221 User Manual...
-
Page 28: Back Panel Description
Back Panel Description Functional Description Block Diagram PROCESSING INPUT OUTPUT Input and Output Resolution Following is the input and output resolution list: MSP 221 User Manual... -
Page 29: Communication Software Guideline
Operating system:Windows 7 professional version 32bit and above Install software and login in: Power on MSP 221 ,then connect MSP 221 with PC by USB cable.Double-click icon to open AVMSP software.Interface is shown as follows: Select “Manual” or“Automatic” option, then click “OK” to login in. We recommend to use “Automatic”... -
Page 30: Read Edid
In this situation ,user can check it according to the following steps: (1) First ensure the device is power on, then MSP 221 and PC are connected, and the USB indicator is light. If not , the USB cable need to be changed. -
Page 31: Write Edid
Maybe there is no EDID in device. Version Show the current device version information: [Video Processor] Options Language This software supports both Chinese and English, User can switch the language by “Language” option. MSP 221 User Manual... -
Page 32: Admin
Including “Advance Debug”, “Device Update” and “EDID Edit”. Advance Debug： User should input the password in the “Admin Password” dialog for advance debug. Note: Advance is only done by engineer. If need, please connect us for password. Device Update: EDID Edit: MSP 221 User Manual... - Page 33 1. Choose the EDID that need to edit in EDID Edit box. 2. Choose the resolution in Resolution part, then click “Set”. 3. If write successfully, the box will show ”Set OK”, or it will show “Set fail”. “Write fail” may due to no EDID in device. MSP 221 User Manual...
-
Page 34: Help
4. If write successfully, the box will show ”Set OK”, or it will show “Set fail”. “Set fail” may due to no EDID in device. Help Version: Show the content of software update. About: Show software version and company information. MSP 221 User Manual... -
Page 35: Specification
Standard DVI-I Socket TMDS pw, 165MHz bandwidth Signal Level Input resolution VESA (Supported Standards) 800*600@60Hz, 1024*768@60Hz, 1024*768@75Hz, 1024*768@85Hz, 1280*768@60Hz, 1280*800@60Hz, 1280*1024@60Hz, 1360*768@60Hz, 1366*768@60Hz, 1400*1050@60Hz, 1440*900@60Hz, 1600*1200@60Hz, 1680*1050@60Hz, 1920*1080@50Hz, 1920*1080@60Hz, 1920*1200@60Hz, 2048*1152@60Hz, 2560*812@60Hz, 2560*812@60Hz VGA Output Number of outputs MSP 221 User Manual... - Page 36 R, G, B、Hsync, Vsync: 0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75 black level: 300mV Sync-tip: 0V Extras Assignment control Power Supply +12V standard 3.5” interface power module Working Environment 0°C~45°C Stored Environment 10% to 90% Size 98mmX92mmX22mm Product Warranty 3 years parts and labor warranty MSP 221 User Manual...
-
Page 37: Contact Information
All video products are designed and tested to the highest quality standard and backed by full 3 years parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related...
