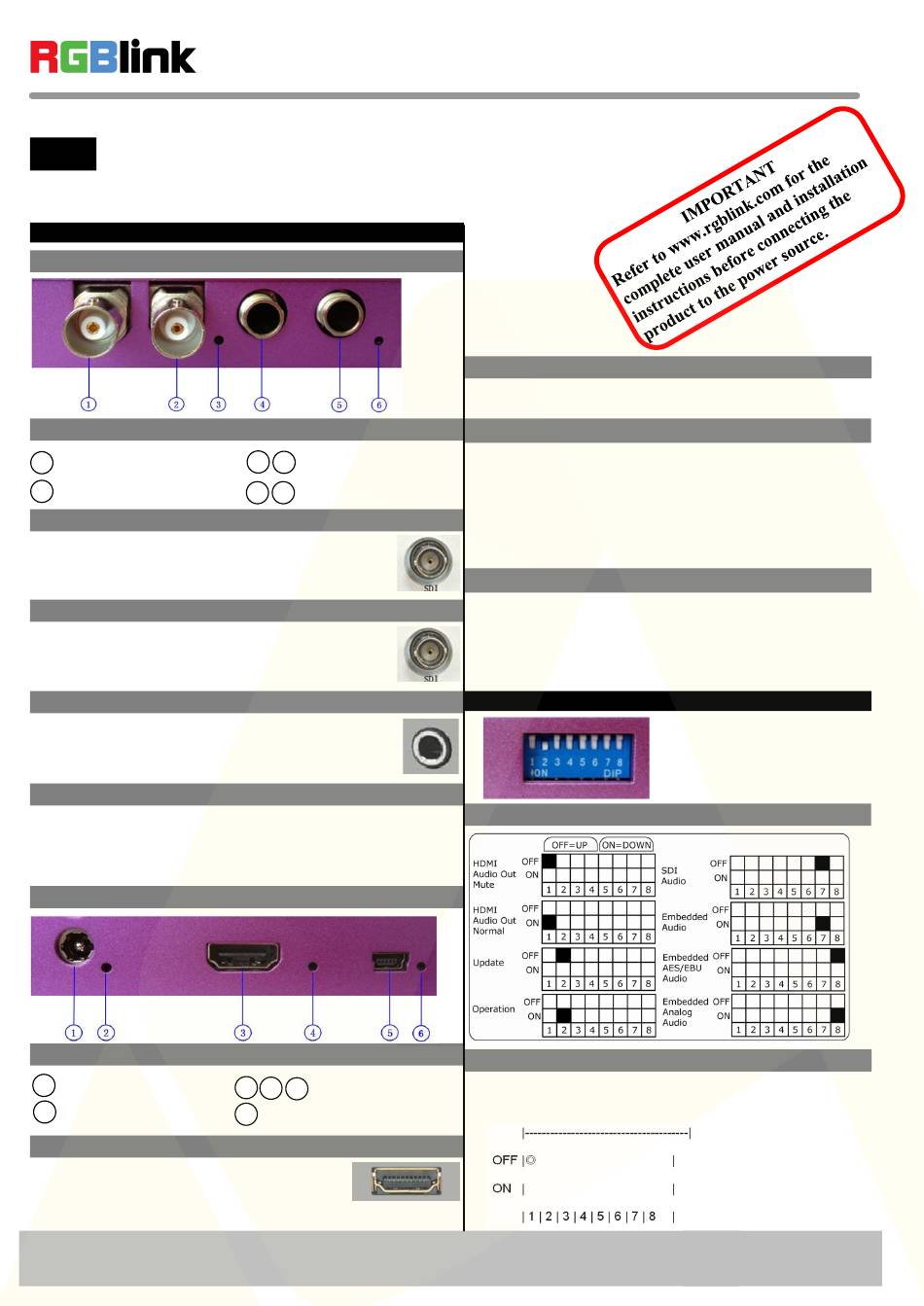

MSP 203 – Quick Start
For full installation, configuration, and operation details, please refer to
NOTE
MSP 203 user manual, which is available at www.rgblink.com.
This quick start provides basic instructions for an experienced installer to set up
and operate MSP 203.
Interface Description
Input Interface
Interfaces
1
SDI Input Port
2
SDI Loop Out
SDI Input
Input the video signal from HD player and
HD camera, etc.
SDI Loop Out
Can connect the device with SDI input.
Audio Input
Input audio signals from DVD player, set top
box, hardware player, etc.
Indicator
When input analog audio signal, LED indicator3, 6 light,
when input digital AES/EBU signal, LED indicator3
lights.
Output and Other Interface
Interfaces
1
Power
3
HDMI Output port
HDMI Output
Can connect television and video
projectors.
Address S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C
Tel: 00865925771197
Email: sales@rgblink.com
VIEWSIZE THE WORLD
3 6
Indicator
4
5 Audio Input port
2
4 6
Indicator
5 USB Interface
Fax:00865925771202
http://www.rgblink.cn
USB Interface
Used to control the computer.
Indicator
Power indicator 2 lights when device has power
supply.
LED indicator 4 lights when output HDMI signal.
LED indicator 6 lights when connect USB to
computer.
Power
Connect one end of the power adapter with the
device, the other end into a socket. Plug in, power
indictor light means the device works normally.
The device uses the standard 12V/3A power supply.
Interface Description
Functional Description Block Diagram
Instructions
The dial switch upwards is OFF, downwards is ON
1. Dial switch1 OFF: mute.
