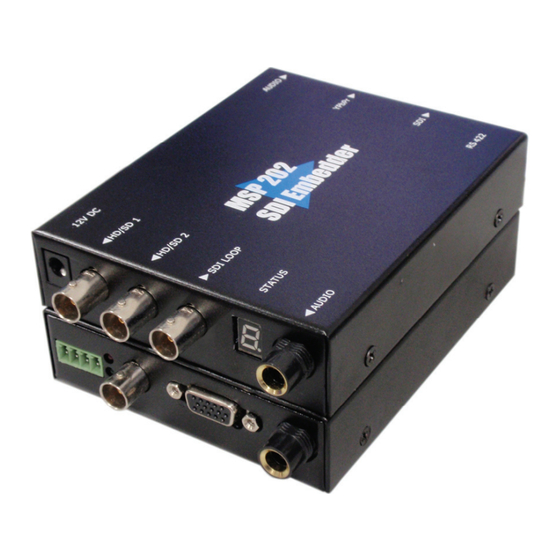

Mini Converter User Manual
MSP 202 HD/SD SDI Embeded User Manual
RGBlink Science & Technology Co., Ltd.
The pictures and data in the user manual are consult only, if there is
fluctuation, according to the real object please!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSP 202 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RGBlink MSP 202

Summary of Contents for RGBlink MSP 202

  • Page 1 Mini Converter User Manual MSP 202 HD/SD SDI Embeded User Manual RGBlink Science & Technology Co., Ltd. The pictures and data in the user manual are consult only, if there is fluctuation, according to the real object please!
  • Page 2 Shenzhen office: Room A05, Floor 4, Building 24, Industry factory Nanshan Science & Technology Park, Shenzhen, Guangdong Province, P.R.C Beijing office: No.27,west circle 3,Haidian District, Beijing, P.R.C Tel: +86-592-5771197 Fax：+86-592-5771202 QQ:505941001 MSN：rgblink@hotmail.com Skype: rgblink Email: rgblinksales@gmail.com File version Version Date ECO# Description...

  • Page 3: Table Of Contents

    Content Safety ..................1 2.0 Function description ................ 2 2.1 Functional Description Block Diagram ........... 2 3.0 Description of button and interface............ 4 3.1 Interface description..............4 3.2 Control panel description ............5 4.0 Communication Software Control Guide ..........6 4.1 Running software ..............

  • Page 4: Safety

    It is forbid to pour liquid, metal fragment or anything else inside this device to avoid fire and other accident. Once that happens, must remove power cord and try to make it clean before power on again. MSP 202 User Manual RGB-RD-UM-M202E001...

  • Page 5: Function Description

    2.0 Function description 2.1 Functional Description Block Diagram SDI1 LVDS Mux SDI1 LVDS LVDS Demux Interface Format Detect SDI2 Deembedder SDI Loop Embedder Audio L/R INPUT PROCESSING OUTPUT Fig. 2.1 MSP 202 “Functional Description Block Diagram” MSP 202 User Manual RGB-RD-UM-M202E001...
  • Page 6 Standard PPM，max 4 channels Format Convertion No support Frame Rate Convertion No support support Extras Communication RS422 Stored Environment 10% to 90% Working Environment 0°C~45°C Product Warranty 1 years Power Supply +12V 3.5” interface power module MSP 202 User Manual RGB-RD-UM-M202E001...

  • Page 7: Description Of Button And Interface

    3.0 Description of button and interface 3.1 Interface description Fig. 3.1 MSP 202 “Interface” 1. RSS422 connector used for PC software control 2. LED indicator light; Red LED indicator light when the device is power on; Green lights when SDI outputs;...

  • Page 8: Control Panel Description

    3.2 Control panel description Fig. 3.2 MSP 202 “Control panel” 1. Power，This device uses the standard 12V/1.5A power supply. 2.SDI input to interface ②，used to support SD/HD SDI input. Input video signal from the HD player, HD projector. 3.SDI input to interface ③，used to support SD/HD SDI input. Input video signal from the HD player, HD projector.

  • Page 9: Communication Software Control Guide

    4.1 Running software Double-click AVDSP software , Software interface is as follows: Fig. 4.1 MSP 202 Control Software Serial settings User can set Comm Port and Comm Speed (Baudrate) through “Comm setup”. User can select current using serial port by the pull-down arrow. Comm Speed should be 115200.
  • Page 10 Fig. 4.2 MSP 202 Serial setting Language settings This software supports both Chinese and English; User can switch the language by “language” menu. Fig. 4.3 MSP 202 Language settings Advance In the advance menu, send CMD and device SN are only for engineers, Ordinary user do not need to set.
  • Page 11 Click “Log” again, the log toolbar will disappear from the software interface. Shown as below picture: Fig. 4.7 MSP 202 Control Software save，User can save current log to specified path to review. Remove, User can remove the log.
  • Page 12 User can click the “Close” button if user want to close the serial. Click this button can download user config (settings) on software into MSP 2023, but could not sync user config inside MSP 202 which by buttons. Click this button can exit software. UMD setting UMD is stand for Under Monitor Display，it is used to show TV signal source, such...
  • Page 13 Fig. 4.11 MSP 202 “UMD”、 “Tally” and “Sound Pole” Tally description： 1. Red means a signal input and is playing. For example, SDI1 is input and display to HDMI output. 2. Yellow means no signal input. For example, SDI2 is not interface to any SDI source.
  • Page 14 Supported resolution:625/25 PAL, 525/29.97 NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60） Column MSP 202 provides column. User can click option box to choose display colum or not, Column position could be changed by draging mouse. Fig. 4.14 MSP 202 “Column” Menu Audio Input Click on option box to choose audio signal input.

  • Page 15: User Quick Start

    This can be shown as follows: Fig. 5.1 MSP 202 Connection diagram Cables connecting RS-232 and RS-422 interface converter: Interface of the converter Male access of RS422 Cable ① ② ③ ④ 3. Connect MSP 202 with output device; MSP 202 User Manual RGB-RD-UM-M202E001...
  • Page 16 4. Double click the software of AVMSP , seen as follows: Fig. 5.2 MSP 202 Control Software ① Select current small converter Model in the pull-down. ② User can set Comm Port and Comm Speed (Baudrate) through “Comm setup”. User can select current using serial port by the pull-down arrow. Comm Speed should be 115200.
