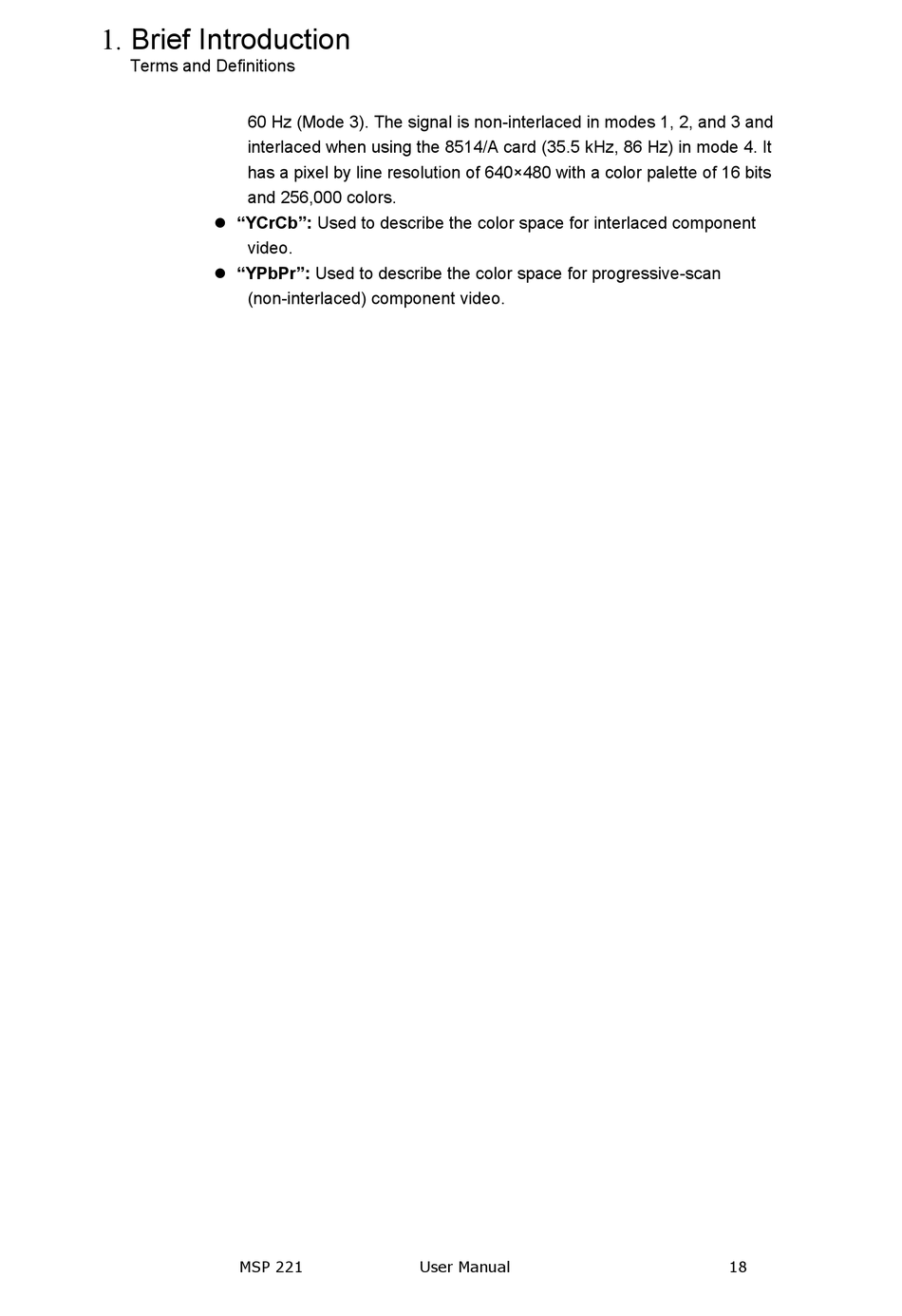

1. Brief Introduction
Terms and Definitions
60 Hz (Mode 3). The signal is non-interlaced in modes 1, 2, and 3 and
interlaced when using the 8514/A card (35.5 kHz, 86 Hz) in mode 4. It
has a pixel by line resolution of 640×480 with a color palette of 16 bits
and 256,000 colors.
"YCrCb": Used to describe the color space for interlaced component
video.
"YPbPr": Used to describe the color space for progressive-scan
(non-interlaced) component video.
MSP 221
User Manual
18
