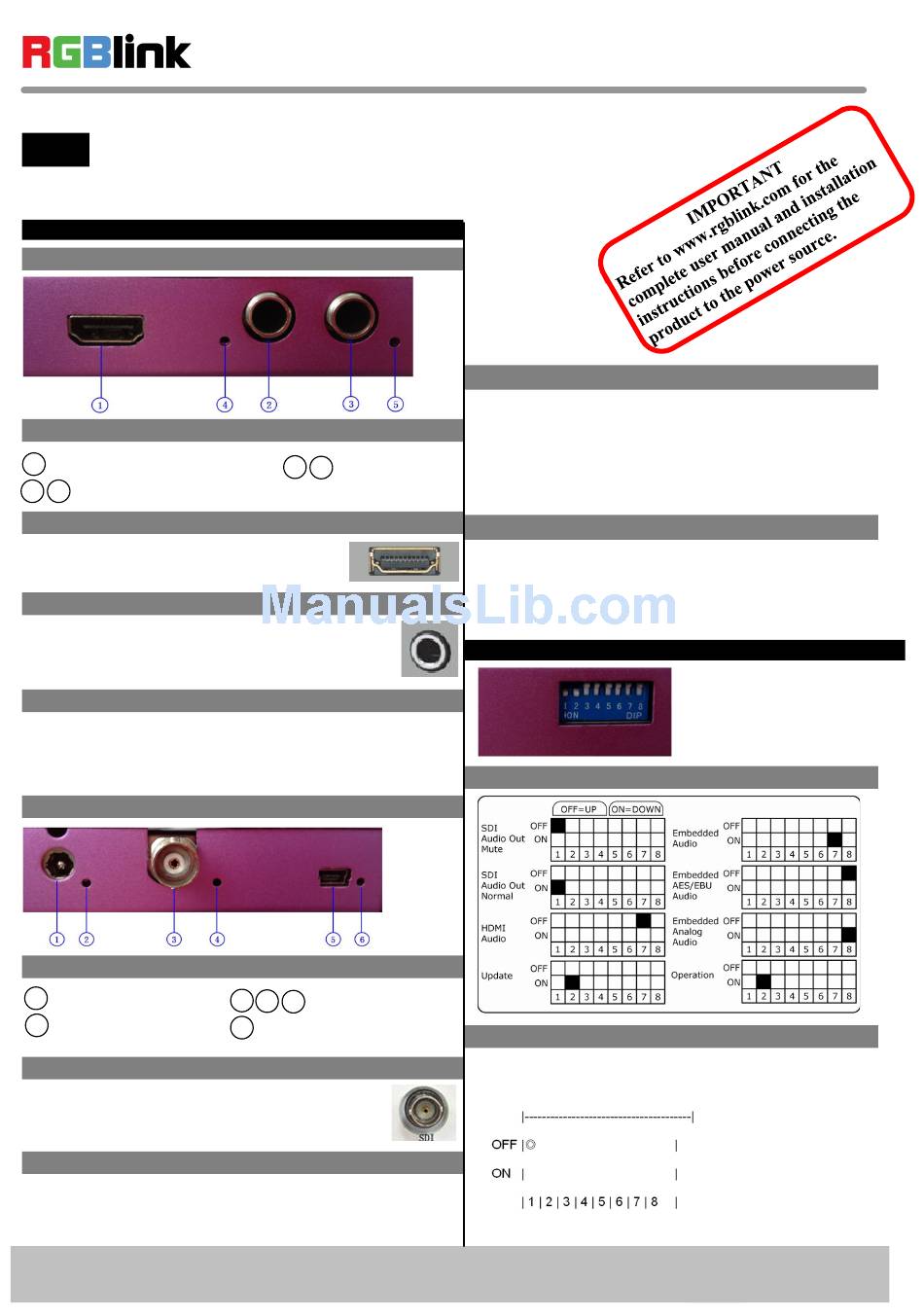

RGBlink MSP 204 Quick Start Manual

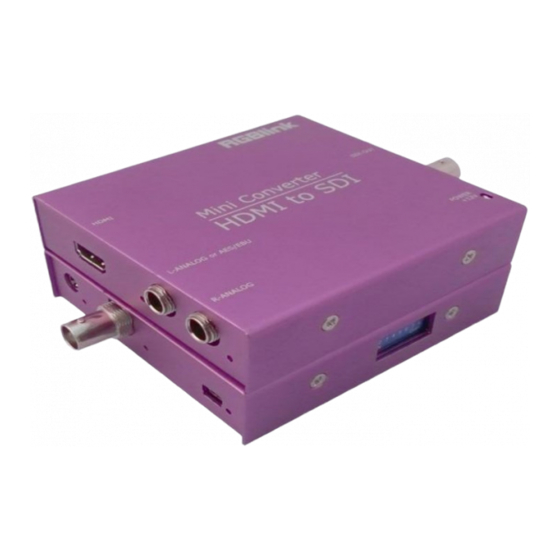

MSP 204 – Quick Start
For full installation, configuration, and operation details, please refer to
NOTE
MSP 204 user manual, which is available at www.rgblink.com.
This quick start provides basic instructions for an experienced installer to set up
and operate MSP 204.
Interface Description
Input Interface
Interfaces
1
HDMI Input Port
2
3 Audio Input port
HDMI Input
Input the video signal from HD player,
DVD player and computer, etc.
Audio Input
Input audio signals from DVD player,
set top box, hardware player, etc.
Indicator
When input analog audio signal, LED indicator4, 5 light,
when input digital AES/EBU signal, LED indicator4
lights.
Output and Other Interface
Interfaces
1
Power
3
SDI Output port
SDI Output
Can connect the next level device with SDI
interface.
USB Interface
Used to control the computer.
Address S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C
Tel: 00865925771197
Email: sales@rgblink.com
VIEWSIZE THE WORLD
4
5
Indicator
2
4 6
Indicator
5 USB Interface
Fax:00865925771202
http://www.rgblink.cn
Indicator
Power indicator 2 lights when device has power
supply.
LED indicator 4 lights when output SDI signal.
LED indicator 6 lights when connect USB to
computer.
Power
Connect one end of the power adapter with the
device, the other end into a socket. Plug in, power
indictor light means the device works normally.
The device uses the standard 12V/3A power supply.
Interface Description
Functional Description Block Diagram
Instructions
The dial switch upwards is OFF, downwards is ON
1. Dial switch1 OFF: mute.
