U-Line H-70657 Quick Start Manual

U-Line H-70657 Quick Start Manual

Bulk foaming soap auto wall-mount dispenser
Hide thumbs
1
2
3
4
5
6

Advertisement

Available languages

Available languages

Table of Contents

H-10657

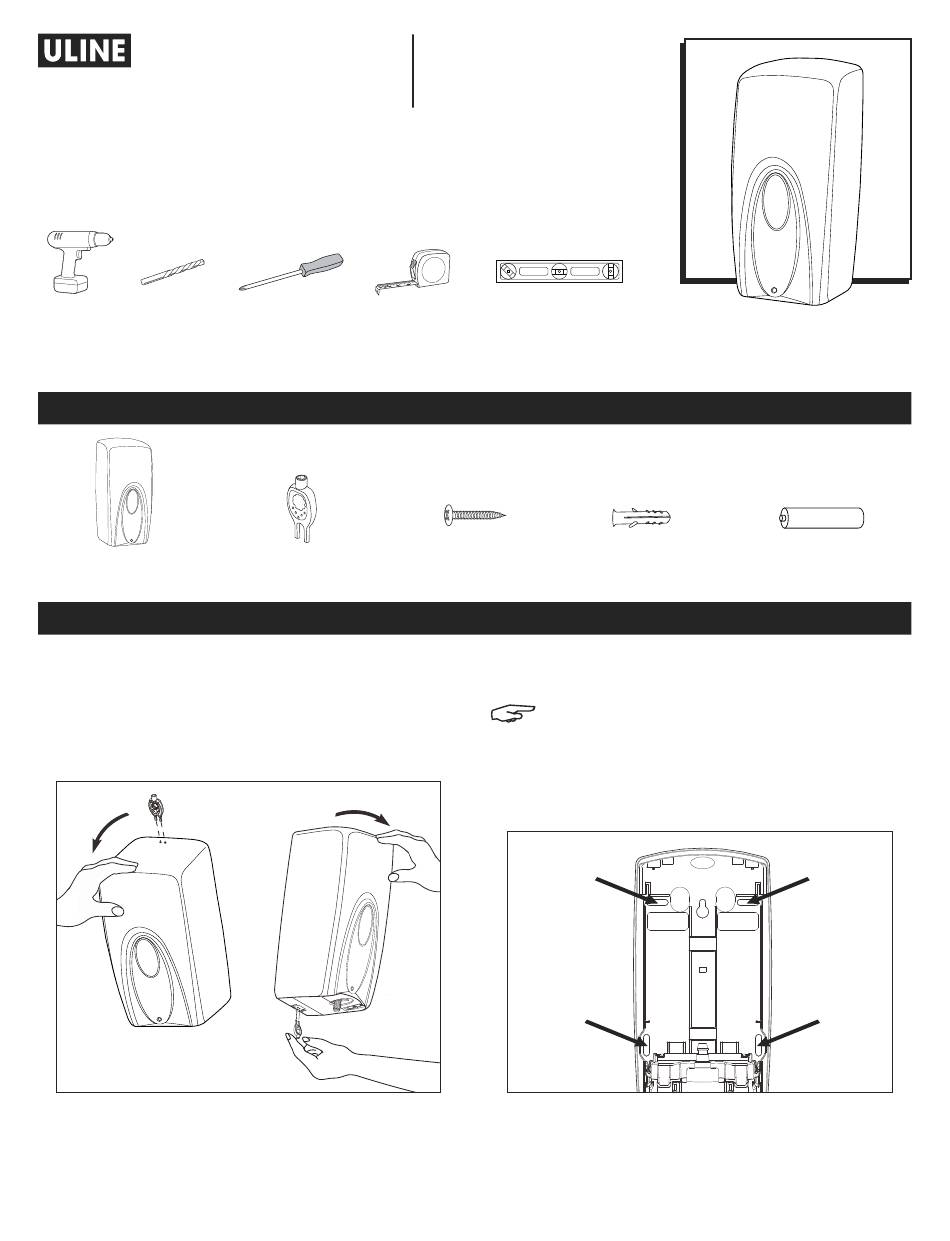

BULK FOAMING SOAP AUTO
WALL-MOUNT DISPENSER
TOOLS NEEDED
Electric
1/4" Drill Bit
Drill
Dispenser x 1
OPENING
1.
Insert key into key holes located at top or bottom of
dispenser. Pull dispenser cover toward you to open.
(See Figure 1)
Figure 1
PAGE 1 OF 6
Phillips
Tape
Screwdriver
Measure
Key x 1
INSTALLATION
OR
1-800-295-5510
uline.com
Level
PARTS
Screw x 4
Anchor x 4
MOUNTING
NOTE: Recommended mounting height is 8"
above any surface.
1. Open cover and hold dispenser against wall in
desired location. Mark screw hole locations on the
wall. (See Figure 2)
Figure 2
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
AA Battery x 6
(sold separately)
0823 IH-10657
