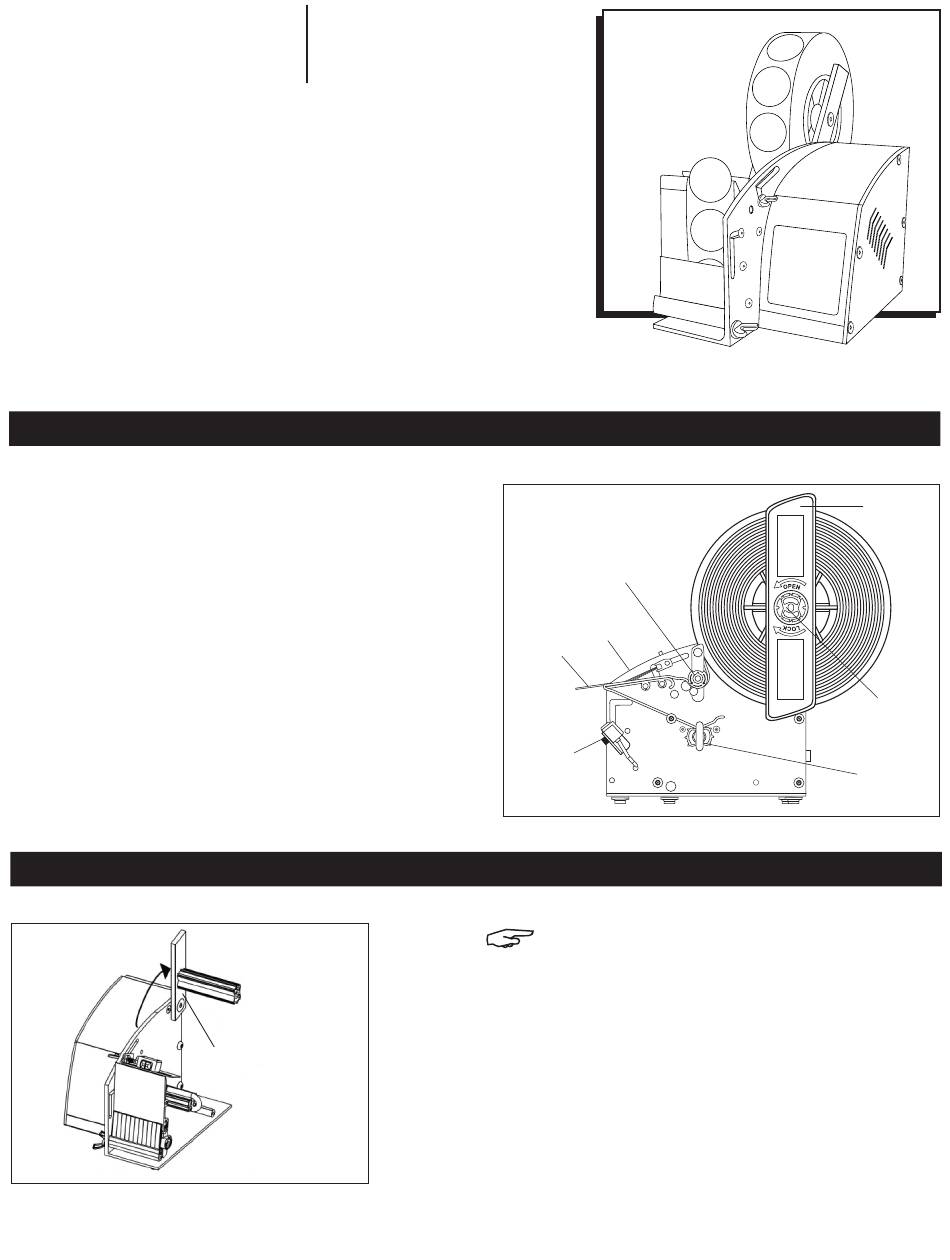

π
H-7206

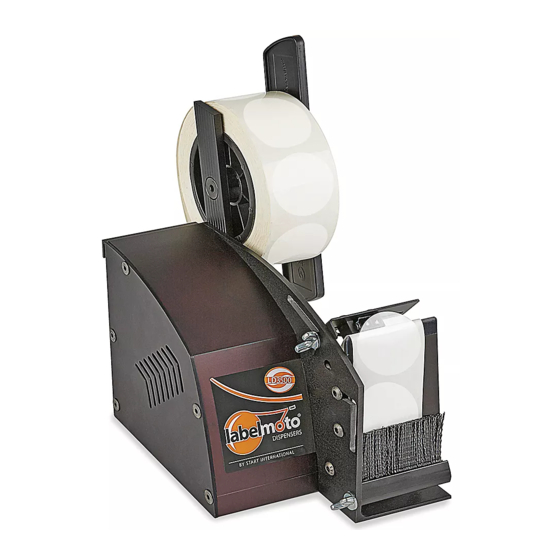

LD3500 AUTOMATIC
LABEL DISPENSER
1. Turn machine off when not in use.
2. Remove liner material from take-up hub when it
reaches approximately 2" in diameter or if the motor
appears to be straining.
3. Do not operate if inspection reveals a damaged
power or sensor cord.
4. Keep strip plate, hold-down and hub free of adhesive
buildup.
Figure 1
PAGE 1 OF 3
1-800-295-5510
uline.com
MAINTENANCE
INSTRUCTIONS
Reel Holder Arm
Guide Rod
Hold-Down
Strip Plate
Photosensor
NOTE: Machine must be unplugged from power
supply for steps 1 to 7.
1. Lift reel holder arm at 90° angle and lock into position
using provided hex wrench. (See Figure 1)
Reel
Holder
Arm
Reel
Hanger
Bar
Take-up
Hub
0218 IH-7206
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for U-Line H-7206
Summary of Contents for U-Line H-7206
- Page 1 π H-7206 1-800-295-5510 uline.com LD3500 AUTOMATIC LABEL DISPENSER MAINTENANCE 1. Turn machine off when not in use. Reel Holder 2. Remove liner material from take-up hub when it reaches approximately 2" in diameter or if the motor appears to be straining.
- Page 2 INSTRUCTIONS CONTINUED 2. Insert core holders into each side of label roll. Reel Figure 2 Hanger Bar 3. Slide loaded roll into reel hanger bar. (See Figure 2) Core holders NOTE: Labels should dispense from under the roll. 4. Feed label liner under guide rods. (See Figure 3) Figure 3 Guide Rods 5.
- Page 3 ADJUSTMENTS 1. To apply the proper amount of tension for proper Figure 6 label feeding and detection, loosen brush wing screw and press down to increase tension, then tighten screw. (See Figure 6) Brush Wing Screw 2. Loosen wing screw, then adjust sensor plate. Figure 7 Sensor 3.
