Lab 865
Automatic switch-off
function
Display illumination
ba77145e02 12/2017
4.3

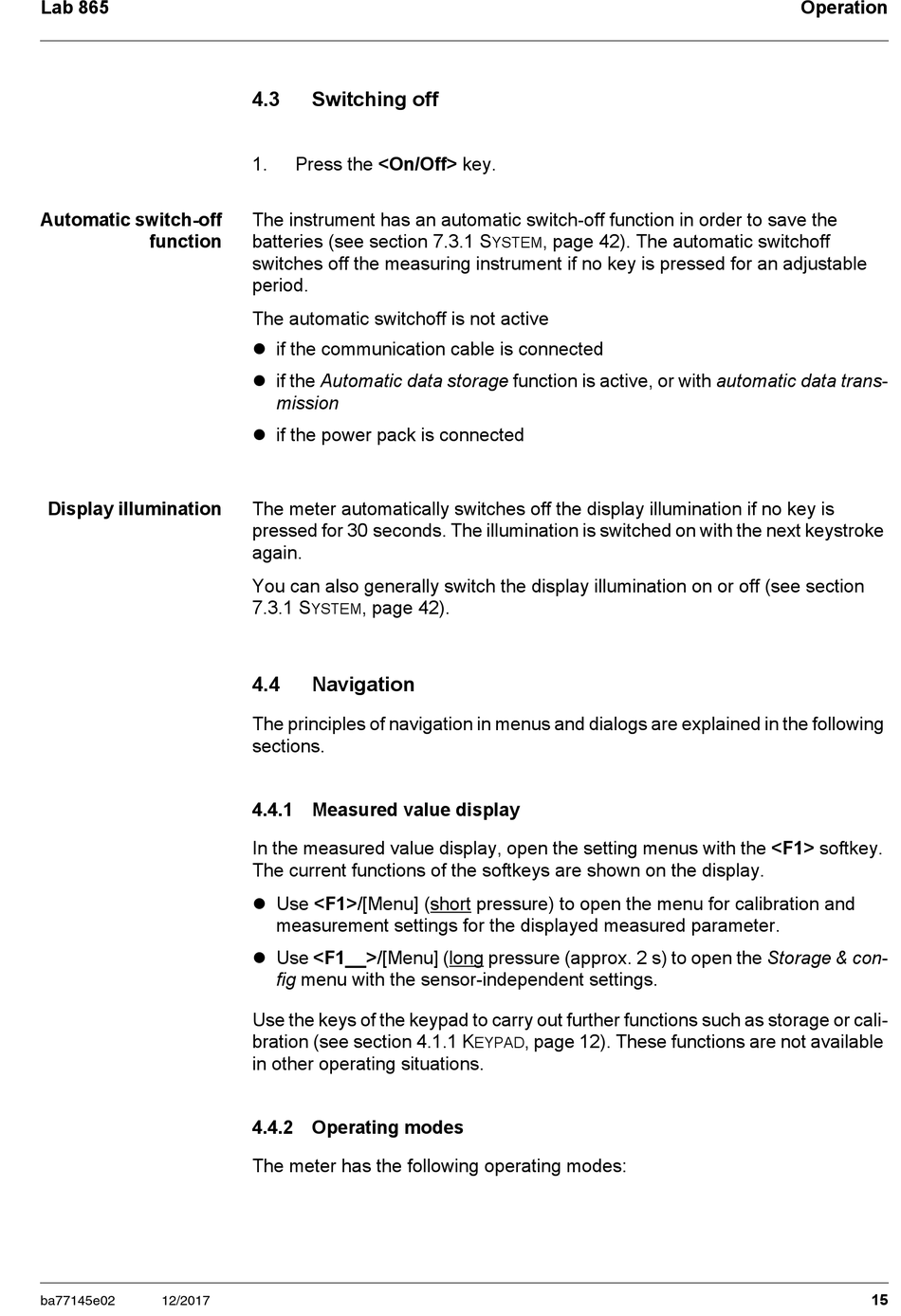

Switching off

1. Press the <On/Off> key.
The instrument has an automatic switch-off function in order to save the
batteries (see section 7.3.1 S
switches off the measuring instrument if no key is pressed for an adjustable
period.
The automatic switchoff is not active
 if the communication cable is connected
 if the Automatic data storage function is active, or with automatic data trans-
mission
 if the power pack is connected
The meter automatically switches off the display illumination if no key is
pressed for 30 seconds. The illumination is switched on with the next keystroke
again.
You can also generally switch the display illumination on or off (see section
7.3.1 S , page 42).
YSTEM
4.4

Navigation

The principles of navigation in menus and dialogs are explained in the following
sections.

4.4.1 Measured value display

In the measured value display, open the setting menus with the <F1> softkey.
The current functions of the softkeys are shown on the display.
 Use <F1>/[Menu] (short pressure) to open the menu for calibration and
measurement settings for the displayed measured parameter.
 Use <F1__>/[Menu] (long pressure (approx. 2 s) to open the Storage & con-
fig menu with the sensor-independent settings.
Use the keys of the keypad to carry out further functions such as storage or cali-
bration (see section 4.1.1 K
in other operating situations.

4.4.2 Operating modes

The meter has the following operating modes:
, page 42). The automatic switchoff
YSTEM
, page 12). These functions are not available
EYPAD
Operation
15
