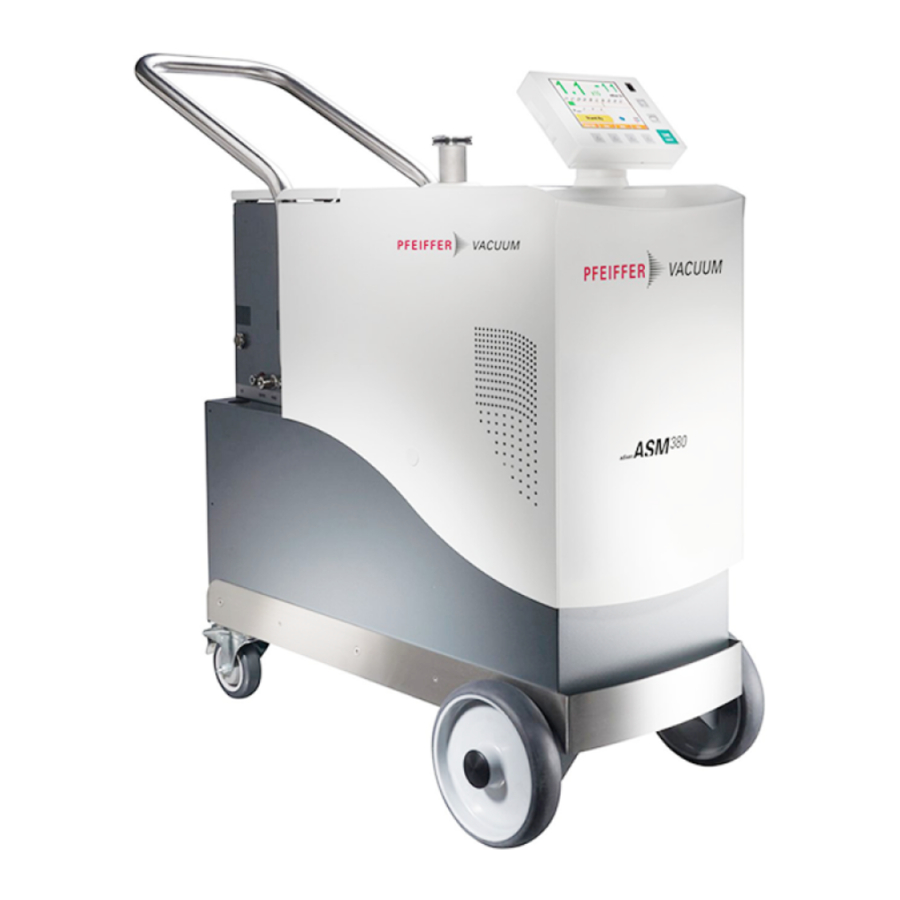

Pfeiffer Vacuum ASM 380 MEMO - Detector Memo

Table of Contents

Contents

1 DETECTOR CONNECTIONS
2 OPERATOR INTERFACE
3 APPLICATION WINDOWS: SETTINGS
4 APPLICATION WINDOWS
5 APPLICATION WINDOWS: STANDARD DISPLAY
6 INTERVAL MAINTENANCE OPERATIONS
7 BASICS OF HELIUM VACUUM TEST
8 FEW ACCESSORIES AVAILABLE
9 Documents / Resources
- 9.1 References
- 9.2 Download manual

For further information, please refer to the User's Manual supplied with your unit.

DETECTOR CONNECTIONS

(*) Accessory: at the customer's charge.

OPERATOR INTERFACE

APPLICATION WINDOWS: SETTINGS

	Reject set point, audio level, digital voice, He max.
	Test methods - Test mode Correction factor Cycle end - Air inlet
	Tracer gas - Calibrated leak.
	Maintenance timer General detector counter Detector information
	Hour - Date - Unit - Language - Password - Screen
	Advanced functions - Calibration SD card - Input/Output

APPLICATION WINDOWS

APPLICATION WINDOWS: STANDARD DISPLAY

1	He signal digital display (green ≤ reject set point < red)
2	He signal bargraph display (adjustable scale)
3	Detector state and detection mode
4	Default information access
5	Mute function activated/deactivated indicator
6	Inlet vent function activated/deactivated indicator
7	Cell pressure bargraph display
8	Measure unit of the leak flow
9	Signal correction function activated indicator
10	Zero function activated indicator
11	Detector inlet pressure bargraph display (coherent unit with the leak flow unit)
12	Tracer gas (if ³He or H₂)

INTERVAL MAINTENANCE OPERATIONS

Frequency*	Maintenance operations
1000 h⁽¹⁾	Clean filters (inlet filters, air inlet filter).
4000 h⁽¹⁾ or 6 months⁽²⁾	Clean the vacuum lines, the valves and the gauges with alcohol - Dust the electronic boards and the fans. Partial maintenance of the analyzer cell. Clean the analyzer cell with alcohol (this cleaning may be necessary in case of general internal contamination creating insulating deposits).
4000 h⁽¹⁾ or 6 months⁽²⁾	Sniffer probe filter replacement if used.
8000 h⁽¹⁾ or 1 year⁽²⁾	Sniffer probe filter replacement if used.
15000 h⁽¹⁾ or 2 years⁽³⁾	Recalibration/exchange of the internal calibrated leak or calibrated leak used for calibration.
18000 h⁽¹⁾ or 4 years⁽³⁾	ATH 184 ball bearings replacement.
	Purge filter replacement.
	Complete maintenance primary pump ACP 40.
500000 cycles	Change the valves.

CS: Please contact Customer Service

*Service intervals: The service intervals given are for applications and work rates which conform to the normal operating conditions. If the machine is operating under more difficult conditions they can be shortened.

(1) running time
(2) running time or storage
(3) storage

BASICS OF HELIUM VACUUM TEST

Detector switched on («I»): wait until stand-by mode.
Connect the leak detector to the part or installation to be tested.
Start a cycle.
Wait Helium signal stabilization.
With a spray probe, spray Helium around the part or installation to be tested: start from the top.
Leak value measured and test result (accepted or rejected) according to the reject threshold display.
Stop the cycle.
