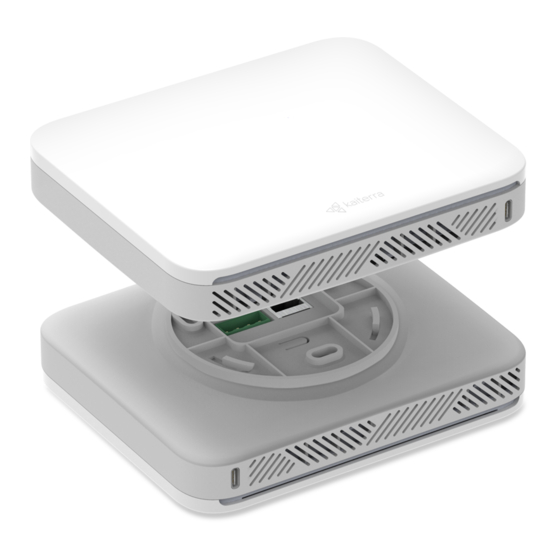

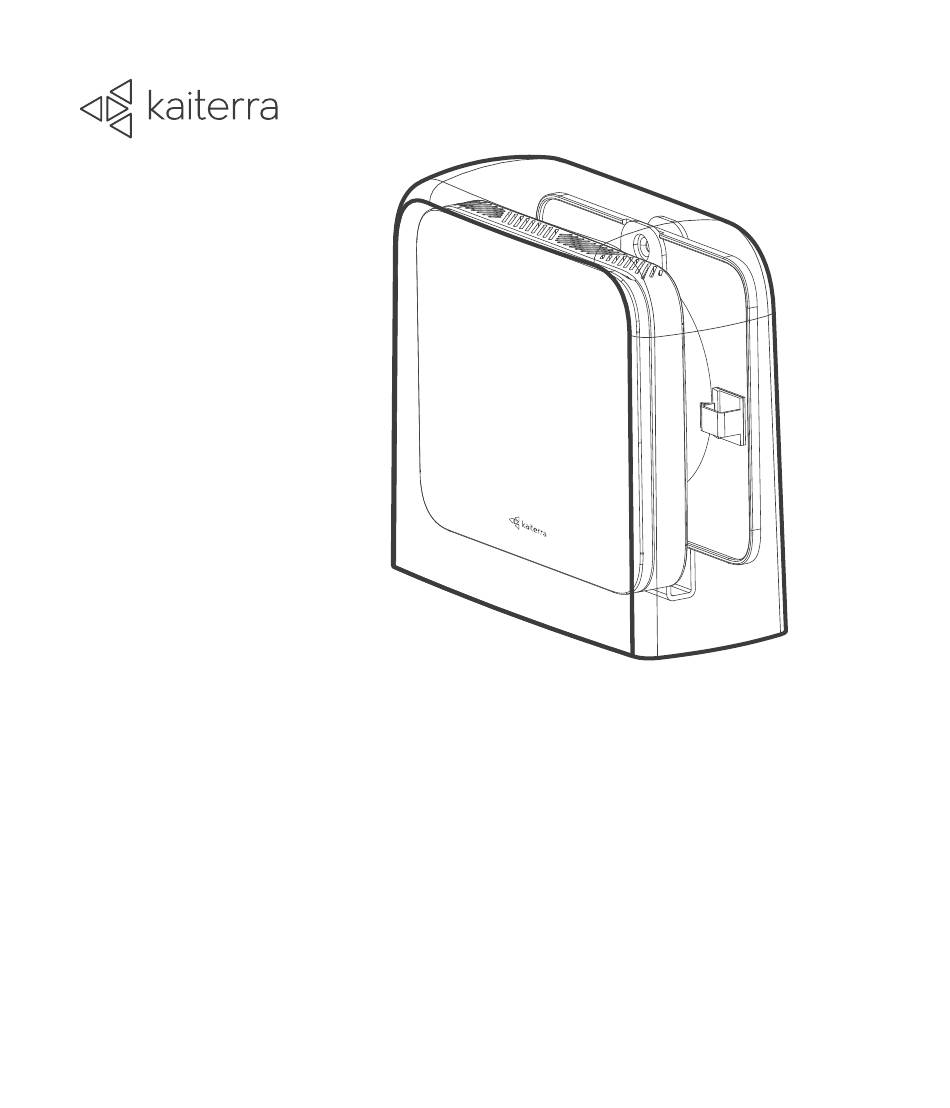

  • Page 1 Sensedge Mini Installation Guide with Outdoor Housing Accessory...

  • Page 2: Important Safeguards

    Important safeguards Please read the safety warnings before use and take the necessary precautions to reduce the risk of fire, electric shock, or injury. The Kaiterra limited warranty applies only if the unit is used according to these instructions. Warning ·...
  • Page 3 Sensedge Mini Package - Parts Sensedge Mini Sensedge Mini Certificate of User Manual sensor modules x 2 calibration and testing Outdoor Housing Accessory Package - Parts Backplate Outdoor housing Stainless steel bracket Fastening screws x 2 M4 screws and Cable clips x 2 (already...
  • Page 4 2. Where to place your Sensedge Mini? · Install in a covered area away from direct sunlight. Prolonged exposure to direct sunlight may reduce its overall lifespan. Choose a location with adequate shade to shield the device from the sun.

  • Page 5: Know Your Device

    RESET pinhole, as well as a device status light. Air is drawn into the Sensedge Mini from the lower side, as well as the air intake on the upper side. It is vital that neither side of the device is covered.

  • Page 6: Power The Device

    4. Power the device Plug the 4-pin Phoenix pin plug into the corresponding terminals on the back of the device. IMPORTANT SAFEGUARDS · Please use the power source provided. · Please contact the facility manager orother responsible personnel if the power source specification is not clear.
  • Page 7 6. Choose your connectivity option A. Set up Wi-Fi 1. Prepare for configuration Download the Kaiterra Configuration Tool and install it on your computer or smartphone. After the device has been turned on, it will automatically enter the...
  • Page 8 This will provide easy identification and filtering in the configuration history page later on to help you quickly connect the device to the Kaiterra dashboard. Enter the Wi-Fi details to the applicable fields on the Configuration Tool, including: ·...
  • Page 9 3. Check for connectivity The STATUS light will flash in green during the pairing process, and eventually go off when the connection is successfully completed. B. Set up ethernet Run your Ethernet cable through the opening on the plate, and into the Ethernet port on the back side of the device.
  • Page 10 This will provide easy identification and filtering in the configuration history page later on to help you quickly connect the device to the Kaiterra dashboard. Enter the network details to the applicable fields on the Configuration Tool, including: ·...
  • Page 11 Phoenix pin plug to secure the cables. Plug the 4-pin Phoenix pin plug into the corresponding terminals on the back of the device. The default Modbus address is set as 1, and can be changed later via the Kaiterra Configuration Tool.
  • Page 12 This will provide easy identification and filtering in the configuration history page later on to help you quickly connect the device to the Kaiterra dashboard. Enter the Modbus settings details to the applicable fields on the Configuration Tool, including your Modbus address (enter a number...
  • Page 13 (Wi-Fi or Ethernet) to proceed. 1. Configure BACnet settings - prepare for configuration Download the Kaiterra Enterprise Configuration Tool and install it on your computer or smartphone. After the device has been turned on, it will automatically enter the configuration mode for 15 minutes.
  • Page 14 This will provide easy identification and filtering in the configuration history page later on to help you quickly connect the device to the Kaiterra dashboard. Enter the BACnet settings details to the applicable fields on the Configuration Tool, including your BACnet ID (enter a number between 1...
  • Page 15 8. Drill holes for anchors Use your power drill and 6mm drill bit to create two holes at the marked screw hole locations. 9. Placing anchors in the wall Hammer the anchors into the holes with your mallet.
  • Page 16 10. Mount wall bracket to the wall Line up the bracket (large holes facing front) with the anchors and mount it to the wall using the provided M4 screws. Optional: Use cable ties to secure the housing. It is important to install the device vertically upright with the opening facing downward to prevent rainwater from entering the housing.
  • Page 17 11. Attach the backplate onto the device You will find three slots on the plate and three corresponding protrusions on the back of the device. Line the device up with the plate such that the protrusions are inside the corresponding slots. Rotate gently to secure the device and lock it in place, and use the two fastening screws to fasten the device to the plate.
  • Page 18 12. Secure the device in place Slide the backplate over the bracket, making sure that the bracket is properly inserted into the correct slots. Once the backplate is securely latched onto the bracket, you will hear a distinct 'click' sound.

  • Page 19: Secure The Power Cable

    To remove the backplate To remove the backplate, press down on its bottom corners to release it from the latch, and then lift and remove it. 13. Secure the power cable Wrap the power cable around the backplate. Use the clips to fix the cables in place to prevent any accidental tugging or pulling that could cause damage to the...

  • Page 20: Install The Modules

    To install the sensor module, simply align it with the bay and press it in, ensuring the Kaiterra logo on the plastic tab is facing outwards. When inserted correctly, the module will click into place, and an LED light above the bay will briefly flash red if the device is powered on.
  • Page 21 15. Attach the outdoor housing Make sure the device is fully covered, with only the bracket visible. Make sure the housing is properly locked into position, as shown in Image 3.
  • Page 22 To remove the outdoor cover To remove the housing, start by pulling the back of the housing forward to unlatch it from the bracket, and then lift it up. Avoid pulling the housing forward from the top directly, as this may cause deformation to the bracket.

  • Page 23: Installation Completed

    16. Installation completed! You have completed the installation process. Now follow our Dashboard Setup Guide to set up your Kaiterra dashboard account and connect your device to the dashboard.
  • Page 24 For additional support, please contact us at support@kaiterra.com...
