Summary of Contents for Kaiterra Sensedge Go

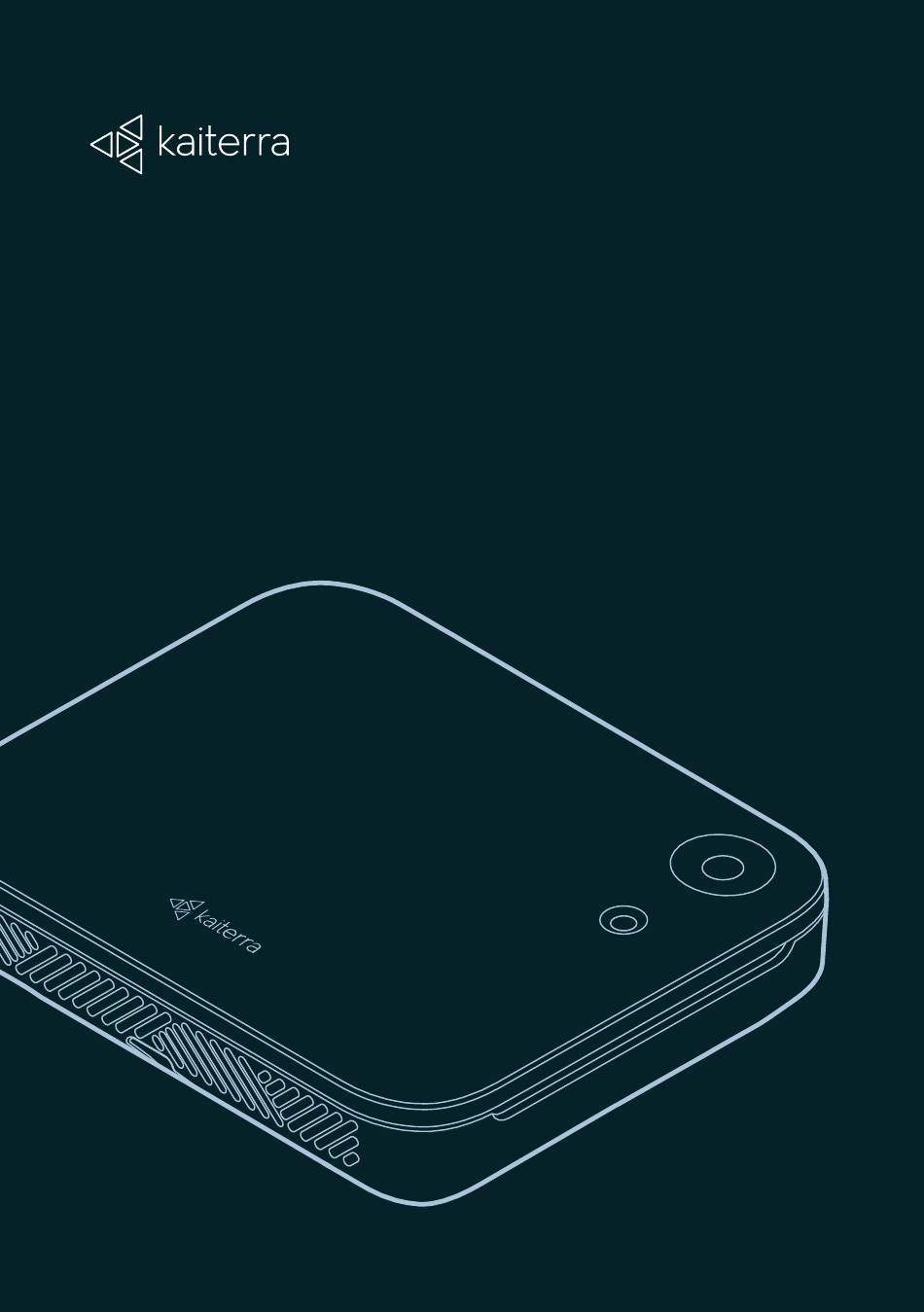

- Page 1 Sensedge Go User manual and installation guide...
-
Page 2: Table Of Contents
Contents What’s Included Important Safeguards Getting Ready for Installation Know your device Where to place your Sensedge Go Power Options Sensor Modules Control and Status How to factory reset Device status light indications Installing the Sensedge Go What you will need 1. -
Page 3: What's Included
Please read the safety warnings before use and take the necessary precautions to reduce the risk of fire, electric shock, or injury. The Kaiterra limited warranty applies only if the unit is used according to these instructions. Kaiterra will not be liable for any damages, injuries, or losses resulting from use of the product that does not comply with these instructions or the safety warnings provided. -
Page 4: Getting Ready For Installation
1.1m is close to a power source. 3.6ft The Sensedge Go draws air in from the lower side and releases it from the upper side. It is essential to keep both sides unobstructed, as any disruption to the airflow can impact the device’s readings... -
Page 5: Power Options
The Sensedge Go offers flexible routing options for the USB-C cable, allowing it to exit from the top, bottom, or rear of the device (through an opening in the drywall or an electrical box). All exit points are equipped with built-in cable strain reliefs to secure the cable in place, preventing overpulling and reducing the risk of damage. -
Page 6: Sensor Modules
Sensors may be inserted in either sensor bay, and in any order. They may be swapped both when the Sensedge Go is powered on and operational, and when the device is turned off. To insert a sensor module, align it head-first with the bay, press it in, and ensure it clicks into place securely. -
Page 7: Control And Status
To clear all settings and put the Sensedge Go back into its factory state: 1. Locate the reset hole on the back of the Sensedge Go, below the power switch. 2. Turn on the device and wait for it to boot up fully, confirmed when the blue LED light turns off. -
Page 8: Installing The Sensedge Go
Installing the Sensedge Go The Sensedge Go can be mounted on a smooth surface like concrete block wall, drywall, wooden panels, glass, or to an electrical box. What you will need Sensedge Go Sensedge Go sensor Gateway Gateway Gateway The Kaiterra... -
Page 9: Surface Mount (Using Double-Sided Tape)
Allow the adhesive to set by leaving it undisturbed for 24 hours. For how to remove the device from backplate, or how to remove an installed device off the wall, or alternative ways to install the Sensedge Go, please see the next section Sensedge Go... -
Page 10: Installation Complete
Installation complete... -
Page 11: How To Remove The Device From The Backplate
How to remove the device from the backplate The back cover of the Sensedge Go also serves as a wall mount. To remove the back cover, insert a flat-head screwdriver (5mm or 3/16 inch) or pin into the slit at the top of the device. Apply gentle pressure to release the device slightly, then pull it forward to detach it from the cover. -
Page 12: Alternative Surface-Mounting Options For The Device
(top and penciled line using your drywall bottom or left and right) and trace cutting tool. Please check for along the inside edge of the built-in conduits and cables in cutout. the wall before cutting. Sensedge Go... -
Page 13: Drywall
Secure the device onto the back plate by snapping it into place. Surface Mount using Electrical Box Mount (US/EU Version) 1. Additional tools you will need Drywall screws Drywall anchors Cross screwdriver Power drill (M4*25mm) x 2 (M6*25mm) x 2 Sensedge Go... -
Page 14: Surface Mount Using Electrical Box Mount (Us/Eu Version)
Temporary install 1. Additional tools you will need 2 Pairs 3M Command™ Large Picture Hanging Strips (with velcro) 2. Prepare mounting surface Separate strips. Click strips Wipe wall with rubbing alcohol. together. Do not use household cleaners or water. Sensedge Go... - Page 15 How to remove temporary installation Grab bottom corners Never pull away from Pull easy-off stretch and peel device from the wall. strips slowly down wall. against the wall at Do not pull straight least 15 inches (38 cm) off. to release. Sensedge Go...
-
Page 16: Fcc Statement
Gateway-device communication 867MHz ~ 868MHz (Max. EIRP: 13.81dBm), or frequency 902~914.2MHz, depending on region NFC Receiver 13.56MHz The device complies with RF specifications when the device used at 20cm from the body of the user or nearby persons Sensedge Go... -
Page 17: Declaration Of Conformity
Manufacturer: Origins Technology Limited Address: 603 6/F, Laws Commercial Plaza, 788 Cheung Sha Wan Road, Hong Kong Warranty Information Kaiterra provides a 1-year limited manufacturer warranty on the Sensedge Go. To obtain a copy of the warranty for this product, please visit https://support.kaiterra.com/policies...
