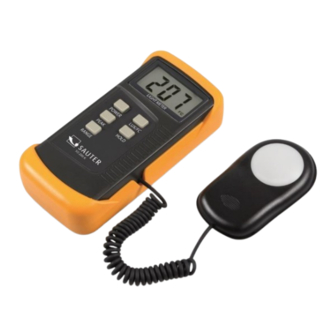

- Page 1 Sauter GmbH Ziegelei 1 Phone : +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 e-mail: info@kern-sohn.com Internet: www.sauter.eu Instruction manual digital light meter SAUTER SO 200K Version 2.0 011/2020 PROFESSIONAL MEASURING SO-BA-e-2020...
-
Page 2: Table Of Contents
V. 2.0 12/2021 Instruction manual digital light meter Congratulations on purchasing this lighting knife from SAUTER. The purchase of this device once again enables a step forward in the accuracy of measurement technology. Although it is a complex and very sensitive instrument, it is still very robust and will last you many years if used correctly. -
Page 3: General Information
1 General information This digital illuminance meter is a precision instrument for measuring illuminance in the work area. The sensor has a full cosine correction for oblique light incidence. The instrument is compact, robust and easy to use due to its design. The light-sensitive component used in this light meter is a very stable, long-life silicon diode. -
Page 4: Function Keys And Part Designation
Working temperature: 0°C to 40°C (32°F to 104°F) Humidity at work: 0 to 70 RH Storage temperature: -10°C to 50°C (14°F to 122°F) Storage humidity: 0 to 80% RH Power source: 1 x 9V block battery, 6F22 Lifetime with an alkaline battery (as a rule) 200h Dimensions: 148mm x 70mm x 40mm Photo sensor lead length:... -
Page 5: Influencing Variables Of Spectral Sensitivity
5 Influencing variables of spectral sensitivity As for the photo sensor: the photodiode with filters used almost reaches the C.I.E. (International Commission on Illumination) standard of spectral sensitivity test characteristics. The photo-optical curve V ( ) is shown in the table below: 6 Steps to commissioning 1. -
Page 6: Examples Of Recommended Illuminance Levels
The white protective cap on the photo sensor should be wiped with a damp cloth from time to time. 2. the light meter must not be stored at too high a temperature or humidity. The period of time required for a calibration of the photo sensor varies with the working operations. - Page 7 Note: When the protective cap is on the photosensor, the unit always displays "000"; if this is not the case, please operate the adjustable resistor on the back of the housing. Note: To view the CE declaration, please click on the following link: https://www.kern-sohn.com/shop/de/DOWNLOADS/ SO-BA-e-2020 SO-BA-e-20207...
