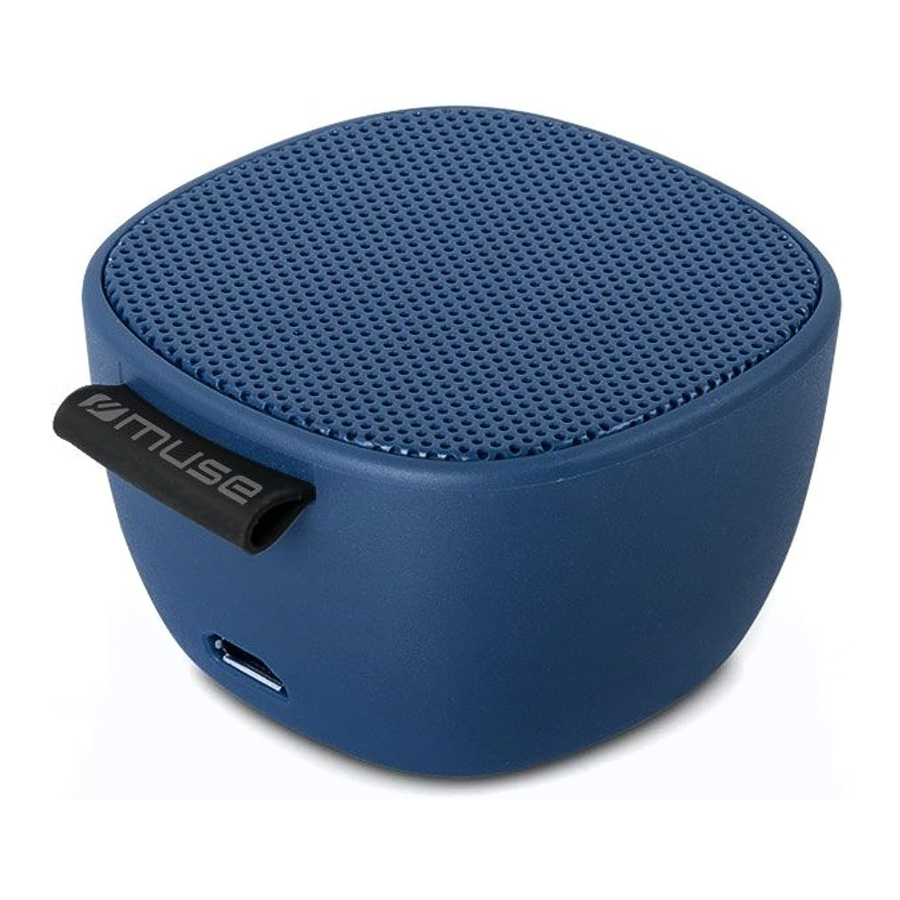

Muse M-305 BTB, M-305 BTP, M-305 BT - Portable Bluetooth Speaker Manual

Table of Contents

Contents

1 LOCATION OF CONTROLS
2 POWER SUPPLY
3 OPERATION
4 TROUBLESHOOTING GUIDE
5 SPECIFICATIONS
6 Documents / Resources
- 6.1 References
- 6.2 Download manual

LOCATION OF CONTROLS

Please read the instruction carefully before operating the unit.

LOCATION OF CONTROLS

Speaker
Micro USB jack for charging
Power ON/ OFF; take a selfie; Play/ pause
Function LED indicator (blue for Bluetooth mode, red for charging)

POWER SUPPLY

The unit is powered by a built-in, Li-polymer rechargeable battery. Charge the built-in battery for at least four hours before using the device for the first time.
To charge the internal battery, connect the smaller end of the supplied USB cable to the Micro USB jack and the other end to a powered USB jack on your computer or an AC power supply (not included).
The function LED indicator will change to red color during charging and light off when the battery becomes fully charged.

While using the built-in battery, the environmental temperature should be 5°C (41°F) to 35°C (95°F).
The built-in battery in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat above 100°C (212°F), or incinerate.
To get the longest service life of the built-in battery, charge at indoor-temperature.
Attention should be drawn to the environmental aspects of battery disposal.
Do not throw batteries in fire!
Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
When the battery is low, the sound may distort and you will hear the warning tone every 30 seconds. The unit will turn off automatically when the battery is too low to work.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

OPERATION

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Turning unit ON/OFF

Press and hold to turn on the unit. Press and hold this button again to turn off the unit.

Pairing a Bluetooth Device

Press and hold to turn on the unit. The function LED indicator will blink blue rapidly indicating it is in Pairing mode.
On the Bluetooth device, enable Bluetooth and select "M-305BT" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a passcode, use"0000". Some Bluetooth devices will ask you to accept the connection. If the units are paired properly, you will hear an indication sound. If there is no pairing or pairing is not successful within 15 minutes, the unit will turn off automatically.

information Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, you need to disconnect current device first and follow the steps above to make a new connection.

On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Using a Bluetooth Device

Press and hold to turn on the unit. With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the M-305BT's speaker.
Adjust the volume via the device to which you are paired.
Press once to pause playback, press this button again to resume.

Taking a selfie

This unit can work as a camera remote shutter. Make sure your Bluetooth-enabled mobile phone is paired with the unit. Open the camera of your mobile phone. Press button twice on the unit to take a photo.

warning Note:

If you cannot take a selfie, you can refer to user manual of the tablet or smartphone about photo taking operations.
Under iOS system (iPhone/iPod/iPad), when using the Apps on your Bluetooth device, once unit is paired, the keyboard might disappear. In order to make it appear again, you need to disconnect from the Bluetooth unit.

Hereby, NEW ONE S.A.S, declares that this MUSE M-305 BTB/M-305 BTP/M-305 BT is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

TROUBLESHOOTING GUIDE

Should this unit exhibit a problem, check the following before seeking service:

No Power

Power is not on; Press and hold to turn on the unit.
Make sure the battery is recharged.

No Sound

External device's volume is set to minimum; raise volume.

The Bluetooth device cannot pair or connect with the unit.

You have not activated the Bluetooth function of your device. Refer to the user manual of your device to activate Bluetooth function.
The unit is already connected with another Bluetooth device; disconnect that device and then try again.

SPECIFICATIONS

RECHARGEABLE BATTERY

Battery Type: 3.7V 250mAh Li-Polymer Battery
Charging power: DC 5V 150mA
Operating Time: Approx. 2 hours at max volume after fully charged
Charging Time: Approx. 3 hour

BLUETOOTH

Bluetooth: 2.402-2.48GHz
RF Output Power: -3.516 dBm
Bluetooth Version: V4.1
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)

Specifications are subject to change without notice.

WARNING

The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
The use of apparatus in moderate climates.
The apparatus should not be exposed to dripping or splashing.
Ensure a minimum distance of 5cm around the apparatus for sufficient ventilation.
Do not place objects filled with liquids, such as vases, on the apparatus.
The marking plate is located on the bottom of unit.
Under the influence of electrical fast transient or/and electrostatic phenomenon, the product may malfunction and require user to power reset.
