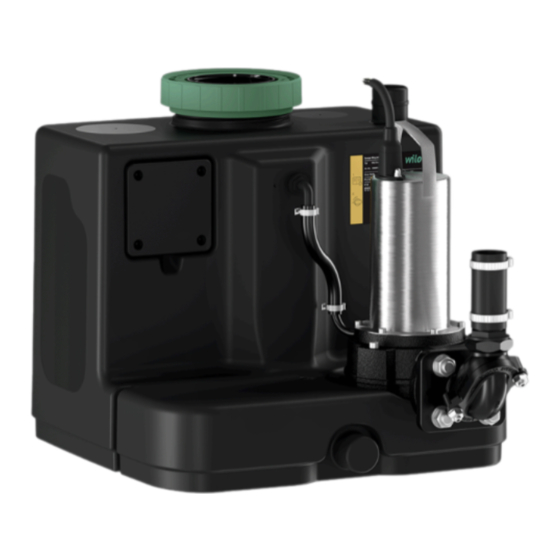

Wilo-DrainLift SANI CUT-M
en Installation and operating instructions
·
6094308 • Ed.03/2023-06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DrainLift SANI CUT-M and is the answer not in the manual?

Questions and answers

Summary of Contents for Wilo DrainLift SANI CUT-M

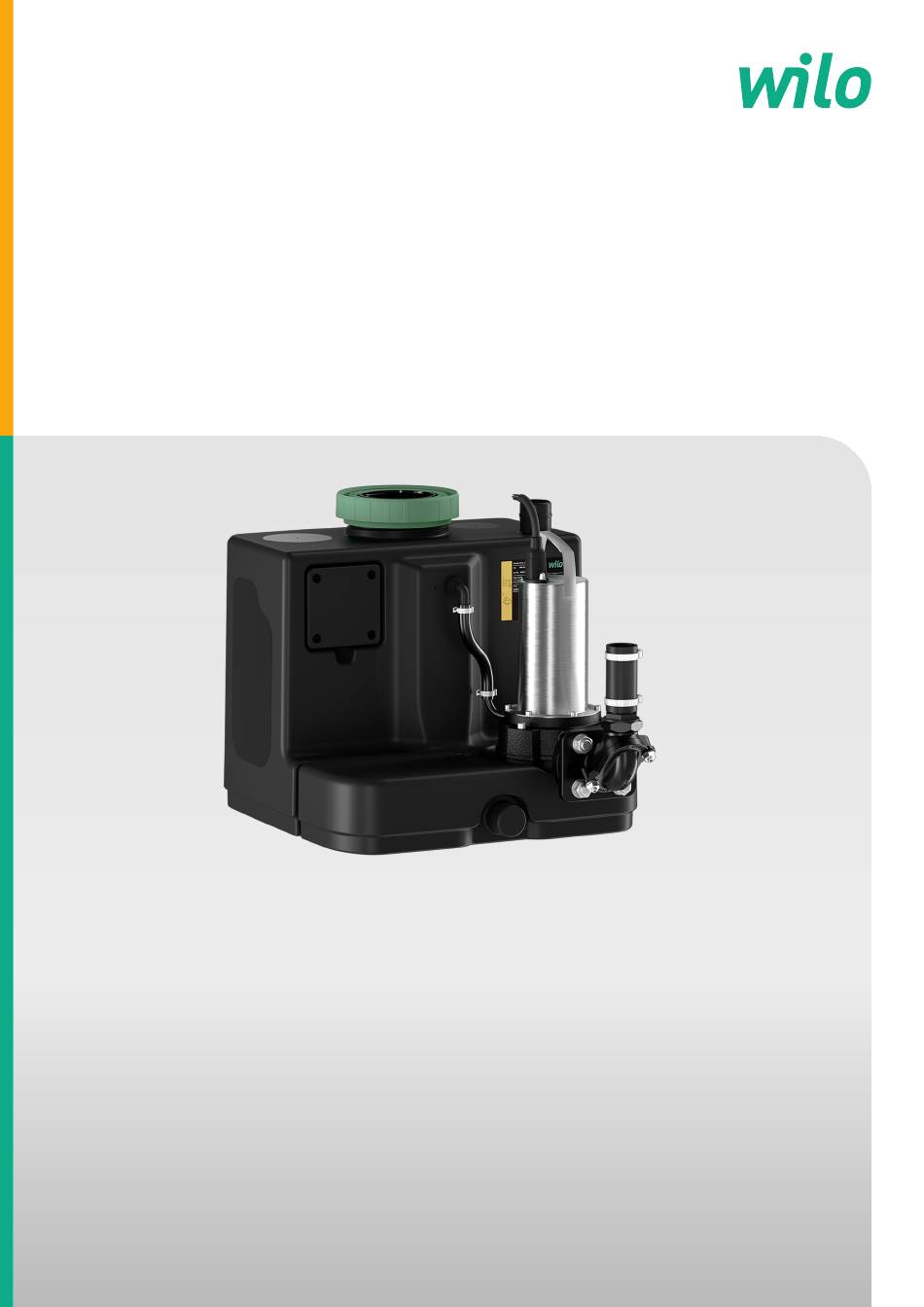

  • Page 1 Pioneering for You Wilo-DrainLift SANI CUT-M en Installation and operating instructions · 6094308 • Ed.03/2023-06...
  • Page 2 DrainLift SANI CUT-M https://qr.wilo.com/497...
  • Page 3: Table Of Contents

    6 Installation and electrical connection........ 13 Staff qualifications.............. 13 Installation types.............. 14 Operator responsibilities............ 14 Installation ................ 14 Electrical connection ............ 20 7 Commissioning ................. 21 Staff qualifications.............. 21 Operator responsibilities............ 21 Operation ................ 21 Test run ................ 22 Follow-up time.............. 22 8 Operation .................. 22 Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 4: General

    All rights reserved. Subject to change Wilo reserves the right to change the listed data without prior notice and is not liable for technical inaccuracies and/or omissions. The illustrations vary from the original and are in- tended as a sample representation of the device.
  • Page 5 Danger due to bacterial infection Warning – risk due to hot surfaces Wear protective helmet. Wear safety shoes. Wear safety gloves. Wear respiratory mask. Wear safety glasses. Be aware about the instructions. Useful information Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 6: Staff Qualifications

    Similar products from other brands can also be used. The pre- requisite is the fulfilment of the mentioned standards. WILO SE accepts no liability for the mentioned articles regarding their conformity to the relevant standards. Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 7: Pump With Macerator

    • Wear protective equipment. • Clean and disinfect the tank during removal. • Inform all persons about the pumped fluid and the danger it poses. Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 8: Explosive Atmosphere In The Collection Tank

    Open all shut-off valves in the inlet and discharge pipe. • The maximum inflow must be lower than the maximum output of the system. • Do not open the inspection opening. Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 9: 2.12 Cleaning And Disinfection

    In cases where sewage cannot be discharged directly into the sewer system via a natural downward slope • For backflow resistant drainage in cases where the discharge point is below the back- flow level Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 10: Improper Use

    Adjustable follow-up time • 1.5 m connection cable with attached plug • Motor housing: 1.4404 (AISI 316L) Materials • Hydraulics: EN-GJL-250 (ASTM A48 Class 35/40B) • Impeller: EN-GJL-250 (ASTM A48 Class 35/40B) Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 11: Monitoring Devices

    • SANI CUT-M...T/...: 3~400 V, 50 Hz Power consumption [P See rating plate Rated power [P See rating plate Rated current [I See rating plate Speed [n] See rating plate Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 12: Manufacturer Date

    DN 32/DN 40/DN 100/DN 150 inlet sets (seal and saw) General • Diaphragm hand pump with R 1½ connection (without hose) • 3-way stopcock for switching over to manual suctioning • Horn 230 V, 50 Hz • Flash light 230 V, 50 Hz Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 13: Transportation And Storage

    Electrical work to be performed by a qualified electrician. Staff qualifications A qualified electrician is a person with appropriate technical training, knowledge, and experience who can identify and prevent electrical hazards. Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 14: Installation Types

    Performing work in chambers and narrow rooms as well as in areas with risk of falling can be dangerous. Do not perform this work alone! • Only perform the work with another person! Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 15 Check that all components are in proper working condition. CAUTION! Do not install defective components! Defective components can lead to system failures! • Place accessories aside and keep them for later use. Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 16 Install the discharge pipe as a “pipe loop” to avoid backflow from the main public sewer. At its highest point, the bottom edge of the pipe loop must be above the locally defined backflow level. • Install the discharge pipe for frost protection. Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 17 The inlet can be located in the areas indicated on the rear wall, both side walls and the tank 6.4.7 Connecting the inlet roof, as desired. Fig. 4: Inlet areas Note the following to connect the inlet: Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 18 Push the pipe clamp onto the seal. Coat the inner surface of the seal with lubricant. Push the inlet pipe into the seal. Push the inlet pipe 10 … 20 mm (0.4 … 0.8 in) into the collection tank. Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 19 Alternatively, the connection can be made via a pipe loop directly to the sewer. • All connections must be completely tight. • Observe the installation and operating instructions of the diaphragm hand pump. Fig. 7: Connection of diaphragm hand pump Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 20: Electrical Connection

    NOTICE! If the inlet is lower than the “Pump ON” switching point, there is backflow in the inlet pipe! Wilo-Control MS-L switchgear The switching points are set via permanently defined parameter sets for the Wilo-Con- trol MS-L switchgear. Set the required parameter set to DIP switch 3: Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 21: Commissioning

    • In order to be familiar with the operation of the switchgear, read the installation and operating instructions for the switchgear before in- serting the plug. Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 22: Test Run

    • Allow the motor to cool down to ambient temperature after switching it off. ✓ Commissioning has been carried out. ✓ Test run has been completed successfully. ✓ The handling and functioning of the lifting unit are known. Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 23: Application Limits

    If the lifting unit completely fails, pump out the sewage using a diaphragm hand pump. Close the shut-off valve in the inlet. Close the shut-off valve in the discharge pipe. Pump sewage into the discharge pipe using the diaphragm hand pump. Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 24: Shutdown/Dismantling

    The lifting unit is now decommissioned. If the lifting unit is decommissioned for an extended period, perform a functional check at regular intervals (quarterly). CAUTION! Perform the functional check as described under “Test run”. Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 25: Removal

    ✓ Lifting unit decommissioned. ✓ Protective equipment used. ✓ All shut-off valves closed. To drain the discharge pipe into the tank, open the non-return valve using the ventila- tion device. Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 26: Clean And Disinfect

    Damaged components are replaced with original parts. This ensures proper operation. The general overhaul is performed by the manufacturer or an authorised service centre. Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 27: Spare Parts

    Observe the locally applicable regulations. Consult your local municipality, the nearest waste disposal site, or your retailer for informa- tion on proper disposal. See www.wilo‑recycling.com for more information about recycling. Installation and operating instructions • Wilo-DrainLift SANI CUT-M • Ed.03/2023-06...
  • Page 32 Local contact at www.wilo.com/contact WILO SE Wilopark 1 44263 Dortmund Germany T +49 (0)231 4102-0 T +49 (0)231 4102-7363 wilo@wilo.com Pioneering for You www.wilo.com...
