1 Product Overview

The RG-RAP2260 is a dual-radio ceiling-mounted wireless access point (AP) with one 2.5GE port, delivering an access rate of up to
3000 Mbps per device. The AP is designed by Ruijie Networks for indoor Wi-Fi coverage scenarios within medium- and large-sized
areas. RG-RAP2260 adopts either 802.3at standard PoE power supply or local 12 V DC adapter power supply. Compliant with IEEE
802.11a/b/g/n/ac/ax, the device can simultaneously work in the 2.4 GHz and 5 GHz bands. RG-RAP2260 also supports dual-stream
MU-MIMO and provides an access rate of up to 574 Mbps at 2.4 GHz and 2402 Mbps at 5 GHz with a high throughput of up to 2976
Mbps per device. The AP provides one 2.5GE port and one GE port, making it possible to connect a camera or an Ethernet switch for
varied service networking needs.

1.1 Product Appearance

1.1.1 Front Panel of the AP

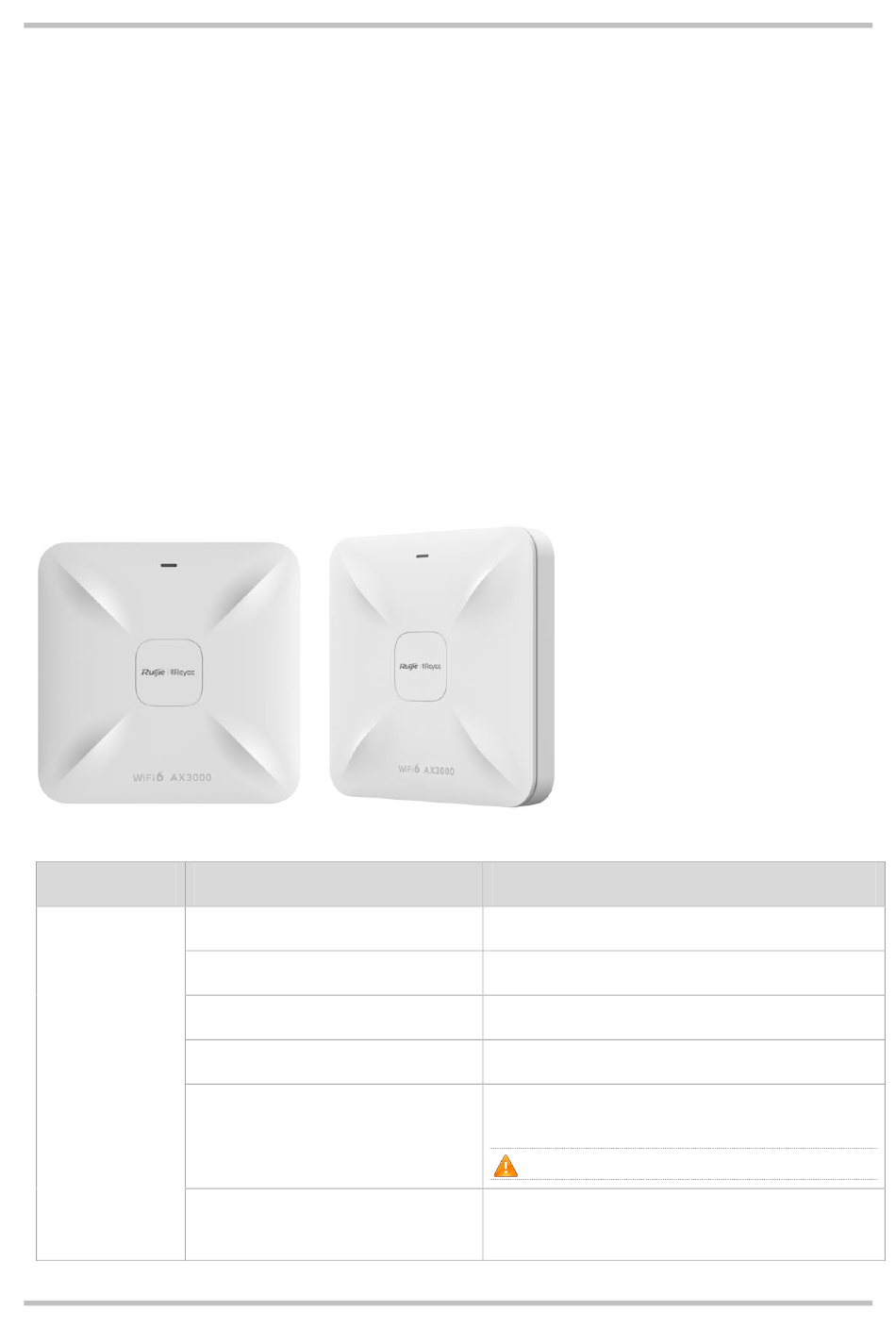

Figure 1-1 Front Panel of RG-RAP2260
Table 1-1 Front Panel Specification
Item Status
Solid blue
Off
Fast flashing
Slow flashing (at 0.5 Hz)
LED
Flashing twice in succession
One long flash followed by three short
flashes.
Description
The AP is operating normally. No alarm occurs.
The AP is not receiving power.
The AP is starting up.
The network is unreachable.
1. The AP is restoring the factory settings.
2. The AP is upgrading the software.
Do not power off the device in this case.
Other faults occur.
