Introduction
The USB 3.0 to Gigabit Ethernet Adapter easily
adds an RJ45 Gigabit Ethernet port to a USB-
enabled system.
Key Features and Benefits
•
Adds a reliable wired Gigabit Ethernet port
(RJ45) to your Windows or Mac system
through USB connection
•
Supports SuperSpeed USB 3.0 data transfer
rate with high performance packet transfer
rate
•
Supports full duplex with flow control and
half duplex with back pressure operation
•
Supports MDI/MDIX auto-crossover, Wake-
on-LAN, IEEE 802.3az (EEE) and Jumbo
Frame
04-1059A
USB 3.0 to Gigabit
Ethernet Adapter
User Reference Guide
Advertisement
Table of Contents
Related Manuals for SIIG JU-NE0711-S1
Summary of Contents for SIIG JU-NE0711-S1
- Page 1 USB 3.0 to Gigabit Ethernet Adapter User Reference Guide Introduction The USB 3.0 to Gigabit Ethernet Adapter easily adds an RJ45 Gigabit Ethernet port to a USB- enabled system. Key Features and Benefits • Adds a reliable wired Gigabit Ethernet port (RJ45) to your Windows or Mac system through USB connection •...
-
Page 2: Specifications
Specifications Chipset Realtek RTL8153 Host Interface USB 3.0 USB 3.0 Type-A, Male (Input) Connectors RJ45 Gigabit Ethernet, Female (Output) Compatible Networks 10/100/1000 Mbps Power USB Bus-powered Color Black Dimensions 2.76" (W) x 0.67" (H) x 1.22" (D) Weight 0.09lbs (40g) System Requirements •... -
Page 3: Package Contents

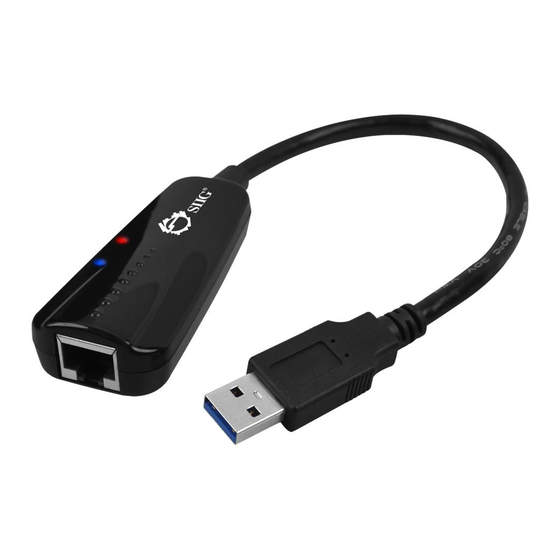

Package Contents • USB 3.0 to Gigabit Ethernet Adapter • User Reference Guide Product Layout Power LED RJ45 Gigabit Ethernet USB 3.0 Type-A Figure 1: USB 3.0 to Gigabit Ethernet Adapter • USB 3.0 Type-A: Connects to an available USB port •... -
Page 4: Windows Installation
• Connection & Activity LEDs (x2): ON when connected to a network; blink when network activity is detected 100Mbps 1000Mbps Power LED Speed Of Indicator Internet No LED 10Mbps Blue 100Mbps Green 1000Mbps Note: There's no LED indicator for 10Mbps mode Windows Installation Windows 10 / 8.x / XP (32-/64-bit) / Server 2003 These OSes have built-in driver support for this... - Page 5 Insert this adapter to an available USB port and verify the Power LED is lit. An Autoplay pop-up window will display automatically and select Run RTK_NIC_ ..exe. If not, go to Computer, My Computer or This PC on the desktop, then select the CD Drive under Devices with Removable Storage/ Devices and drives manually.
- Page 6 After a successful installation, the below message should pop up in the notification area of Windows' desktop. Figure 2 Connect an Ethernet cable (CAT5/5e/6/7) to this adapter and it's ready to be used. Windows Verification Right click Computer, My Computer or This PC on the desktop, and select Manage.
-
Page 7: Mac Os Installation
Power LED is lit. (Mac OS has built in driver and will load automatically) Connect an Ethernet cable to this adapter and go to www.siig.com to download the latest driver. Enter part# JU-NE0711-S1 in the search box to find this product, select it, then click Downloads tab and download the appropriate driver for your OS. - Page 8 Go to Device Manager to check whether the driver is installed successfully. (Refer to Verification for details) The included burn-in driver is basic version. For details or update, where could I download the driver? • Go to www.siig.com/download to download the driver.
- Page 9 Blank Page...
- Page 10 Blank Page...
-
Page 11: Technical Support And Warranty
Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued. - Page 12 Fremont, CA 94538-3152, USA Phone: 510-657-8688 USB 3.0 to Gigabit Ethernet Adapter is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
