Summary of Contents for Craftex B2022

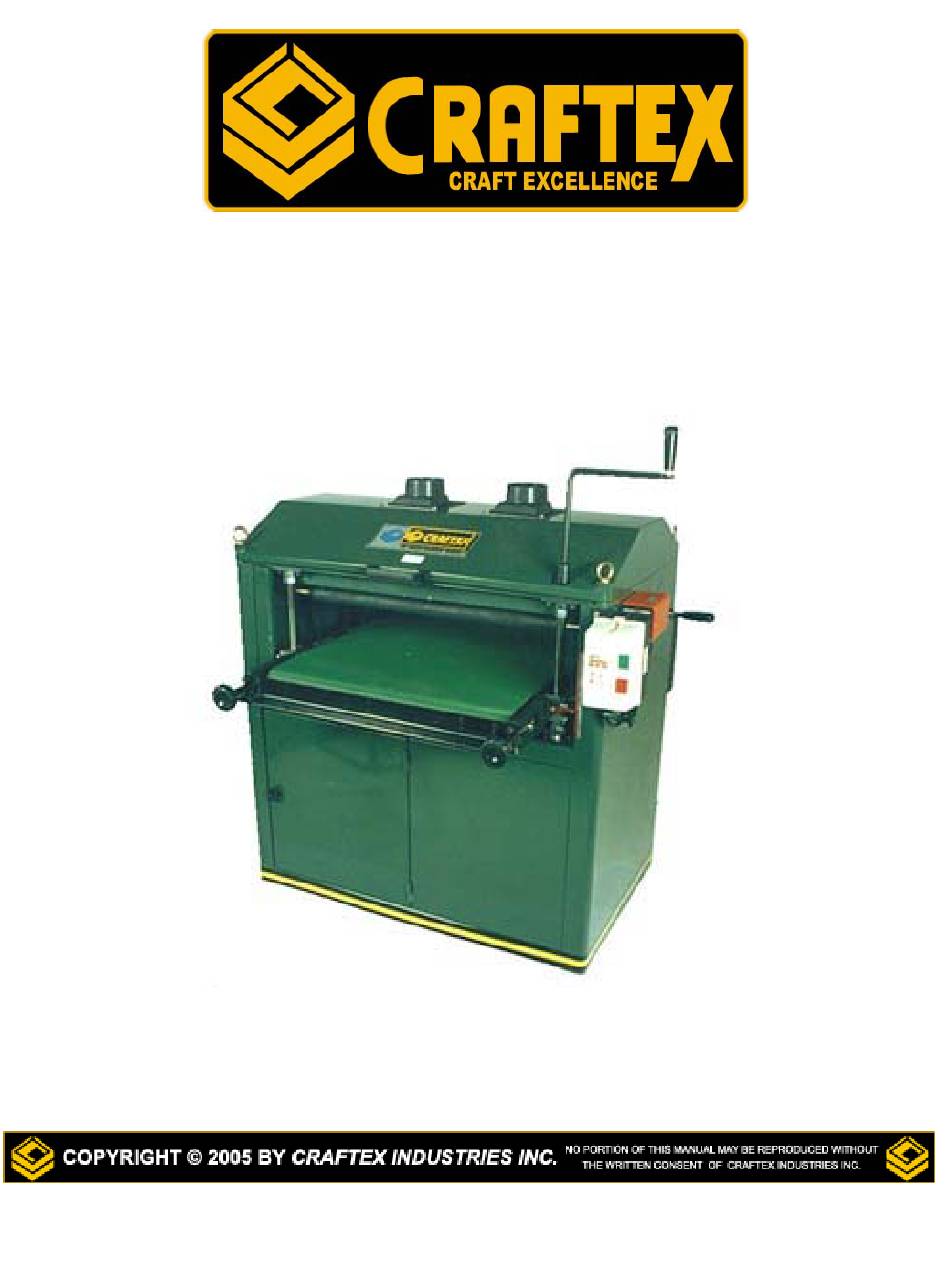

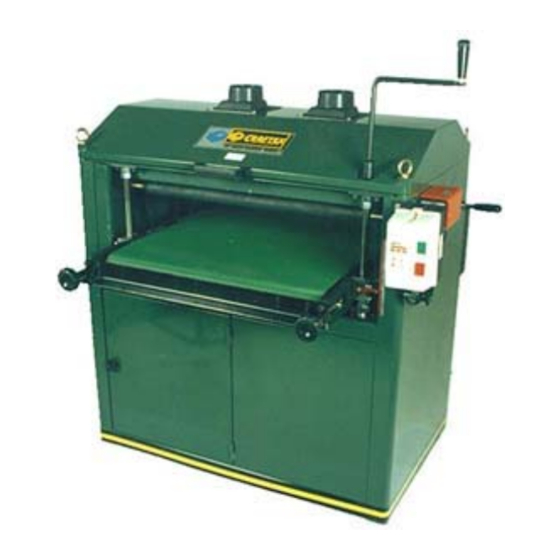

- Page 1 OWNER’S MANUAL B2022 - 25” DUAL DRUM SANDER...
-
Page 2: Table Of Contents
INDEX GENERAL SAFETY INSTRUCTIONS Page 3 Specifications Page 4 Features Page 5 Assembly Instructions Initial Assembly Page 6 Installing Abrasives Page 7 Adjusting Drum Rollers Page 8-9 Hold Down Roller Adjustment Page 10 Maintenance Page 10 Drive Belt Adjustment & Replacement Page 11 Lubrication Page 11... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS EXTREME CAUTION SHOULD BE USED IN OPERATING ALL POWER TOOLS. KNOW YOUR POWER TOOL, BE FAMILIAR WITH ITS OPERATION. READ THE OWNER’S MANUAL AND PRACTICE SAFE USAGE PROCEDURES AT ALL TIMES. CONNECT your machine ONLY to the matched and specified power source. WEAR SAFETY GLASSES, RESPIRATORS, HEARING PROTECTION and SAFETY SHOES when operating heavy machinery. -
Page 4: Specifications
B2022 - 25” DUAL DRUM SANDER SPECIFICATIONS As part of the growing line of Craftex woodworking equipment, we are proud to offer the B2022 Dual Drum Sander. The Craftex name guarantees Craft Excellence. By following the instructions and procedures laid out in this owner’s manual, you will receive years of excellent service and satisfaction. -
Page 5: Features
B2022 - 25” DUAL DRUM SANDER FEATURES With a full 25” sanding capacity, the B2022 features twin rubber coated steel drums that isolate the drums from heat build up. The drums feature an exclusive spring-loaded adjuster to keep constant belt tension & a mechanical fastener at each end of the drum for fast attachment of your adhesive paper. -
Page 6: Assembly Instructions
B2022 - 25” DUAL DRUM SANDER ASSEMBLY INSTRUCTIONS 1) Remove the unit from the shipping crate. There are four bolts holding the unit to the shipping crate. These can be removed through the motor access door. 2) Install the reversing switch to the right side of the sander by removing the screw in the reversing switch cover and using two Phillip’s Head screws,... -
Page 7: Installing Abrasives
B2022 - 25” DUAL DRUM SANDER ASSEMBLY cont… INSTALLING ABRASIVES CAUTION: Disconnect the machine from the power source for installation or removal of abrasive paper. To install the abrasive paper, remove the four eye bolts and raise the drum cover. Remove the old paper by removing the Allen bolt #30 and the wedge #29 on the right of the drum. -
Page 8: Adjusting Drum Rollers
B2022 - 25” DUAL DRUM SANDER ASSEMBLY cont… FIG 1 ADJUSTING THE DRUM ROLLERS It may be necessary to periodically adjust the height of the drums and when using grits of different sizes, always install the coarser grit in the front drum. - Page 9 B2022 - 25” DUAL DRUM SANDER ASSEMBLY cont…...
-
Page 10: Hold Down Roller Adjustment
B2022 - 25” DUAL DRUM SANDER WHEN RE-INSTALLING THE SAME GRIT ON BOTH DRUMS, YOU MUST RE- ADJUST THE DRUM HEIGHT. To make a major adjustment to the table requires the use of both depth gauges. Place the gauges under the drums near the outside edges of the table as shown in FIG 10. -
Page 11: Drive Belt Adjustment & Replacement
You now should be ready to make your first pass on your B2022. With proper maintenance, this drum sander should provide with years of Craft Excellence. -
Page 12: Wiring Diagram
B2022 - 25” DUAL DRUM SANDER WIRING DIAGRAM... -
Page 23: Warranty
RETURNS, REPAIRS AND REPLACEMENTS To return, repair, or replace a Craftex product, you must visit the appropriate Busy Bee Tools showroom or call 1-800- 461-BUSY. Craftex is a brand of equipment that is exclusive to Busy Bee Tools. For replacement parts directly from Busy Bee Tools, for this machine, please call 1-800-461-BUSY (2879), and have your credit card and part number handy.
