RSD-CFA-CN and RSD-FC-CN.3km

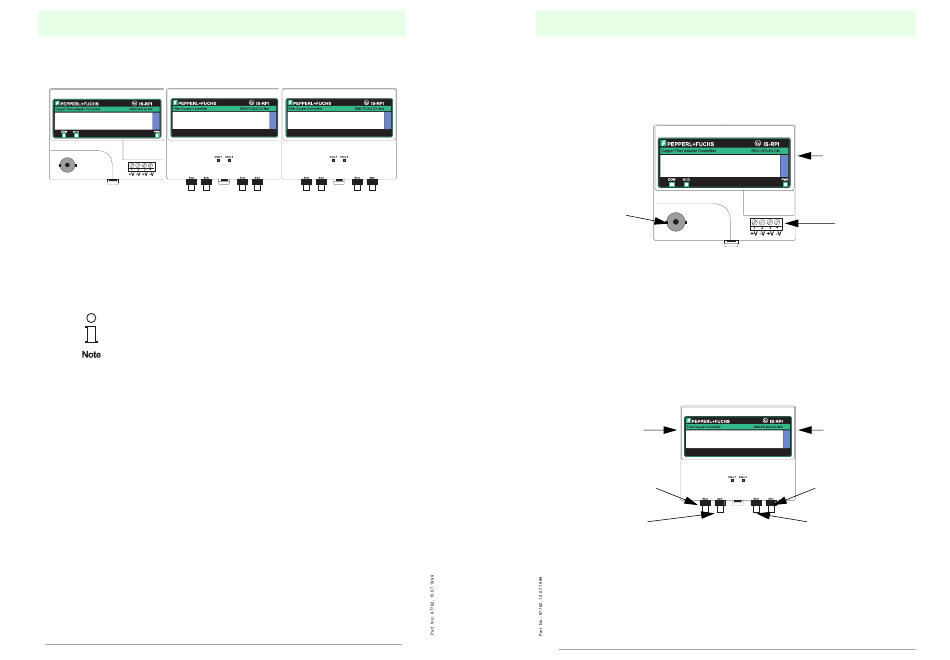

RSD-CFA-CN (see figure 2)..
Figure 2
Power Supply
Only the RSD-CFA-CN has to be conncted power supply. The nominal value of
the power supply is 24 VDC (19.2 V ... 31.2 V). The terminals V+ and V- are the
connectors for the power supply. The Fiber-Coupler is supplied by the Copper/Fi-
ber-Adapter.
In order to comply with CE Low Voltage Directives, you must use a
Safety Extra Low Voltage (SELV) or a Protected Extra Low Voltage
(PELV) power supply to power this adapter
Subject to reasonable modifications due to technical advances
Pepperl+Fuchs Group·Tel.: Germany (6 21) 776-11 11·USA (3 30) 4 25 35 55·Singapore 7 79 90 91·Internet http://www.pepperl-fuchs.com
Instruction Manual
Copyright Pepperl+Fuchs, Printed in Germany
RSD-CFA-CN and RSD-FC-CN.3km
Connectors of the RSD-CFA-CN
The RSD-CFA-CN has to be conncted to the ControlNet transmission cable. It has
also to be connected to a power supply. The connectors are shown in figure 3.
Connector for the
ControlNet
transmission cable
(remove the cover
before connection)
Figure 3
Connectors of the RSD-FC-CN.3km
The RSD-FC-CN.3km will be connected on the left hand side to the RSD-CFA-CN
or, if it is the second coupler, to the previous coupler. If the coupler is the second
on the line, the cover plug on the right hand side must not be removed. The RSD-
FC-CN.3km is a 2 channel coupler and has integrated a separate transmitter and
receiver for each channel.
Cover plug to the
RSD-CFA-CN
or the previous
RSD-FC-CN.3km
Receiver
channel 1
Transmitter
channel 1
Figure 4
Subject to reasonable modifications due to technical advances
Pepperl+Fuchs Group·Tel.: Germany (6 21) 776-11 11·USA (3 30) 4 25 35 55·Singapore 7 79 90 91·Internet http://www.pepperl-fuchs.com
Instruction Manual
Cover plug for the
connector to the
RSD-FC-CN.3km
Terminals for
power supply
Cover plug for the
connection of the
second
RSD-FC-CN.3km
Receiver
channel2
Transmitter
channel 2
