Operation
Measured value display
Menus and dialogs
16

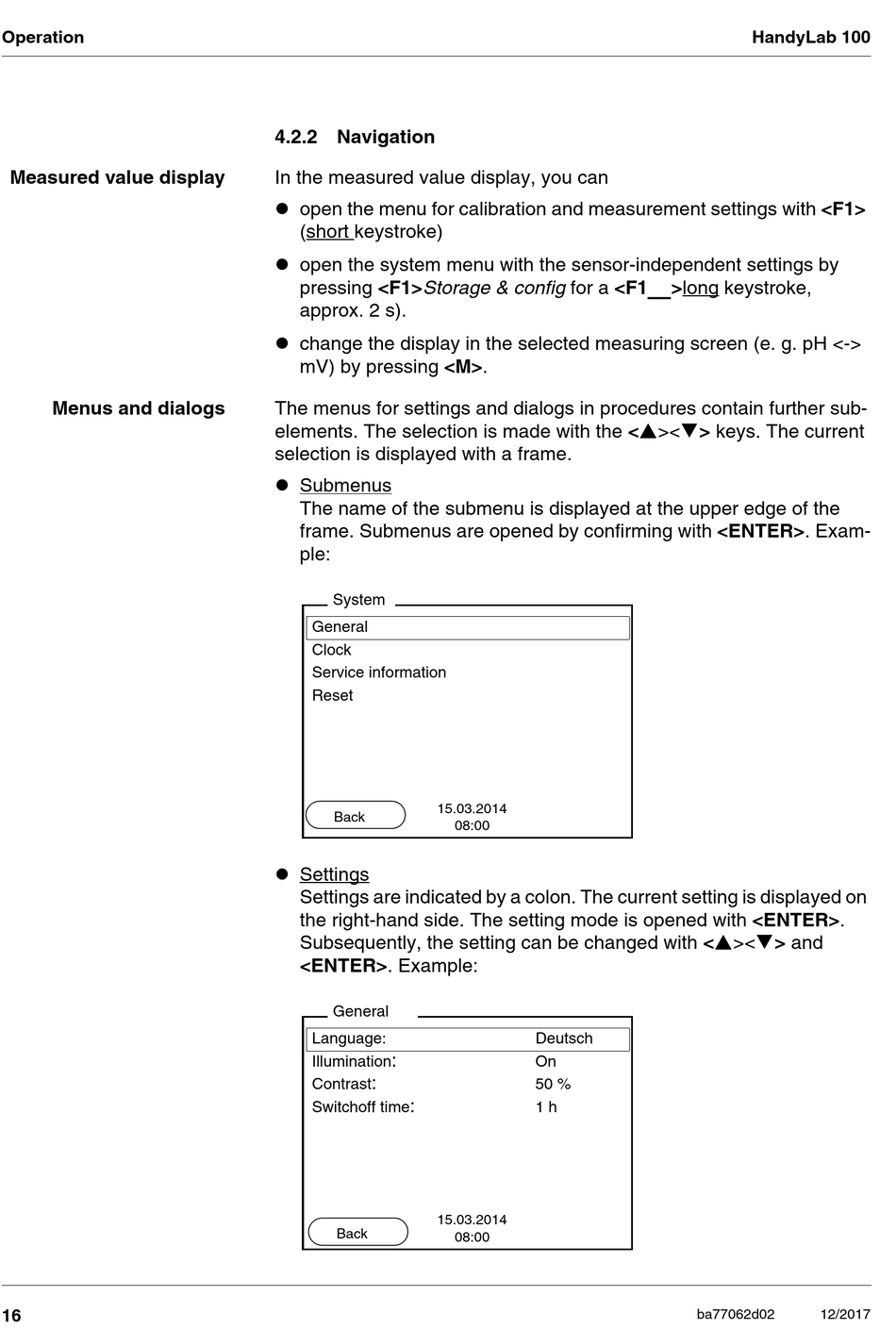

4.2.2 Navigation

In the measured value display, you can
 open the menu for calibration and measurement settings with <F1>
(short keystroke)
 open the system menu with the sensor-independent settings by
pressing <F1>Storage & config for a <F1
approx. 2 s).
 change the display in the selected measuring screen (e. g. pH <->
mV) by pressing <M>.
The menus for settings and dialogs in procedures contain further sub-
elements. The selection is made with the <><> keys. The current
selection is displayed with a frame.
 Submenus
The name of the submenu is displayed at the upper edge of the
frame. Submenus are opened by confirming with <ENTER>. Exam-
ple:
System
General
Clock
Service information
Reset
15.03.2014
Back
 Settings
Settings are indicated by a colon. The current setting is displayed on
the right-hand side. The setting mode is opened with <ENTER>.
Subsequently, the setting can be changed with <><> and
<ENTER>. Example:
General
Language:
:
Illumination
:
Contrast
:
Switchoff time
15.03.2014
Back
08:00
Deutsch
On
50 %
1 h
08:00
HandyLab 100
_
>long keystroke,
ba77062d02 12/2017
