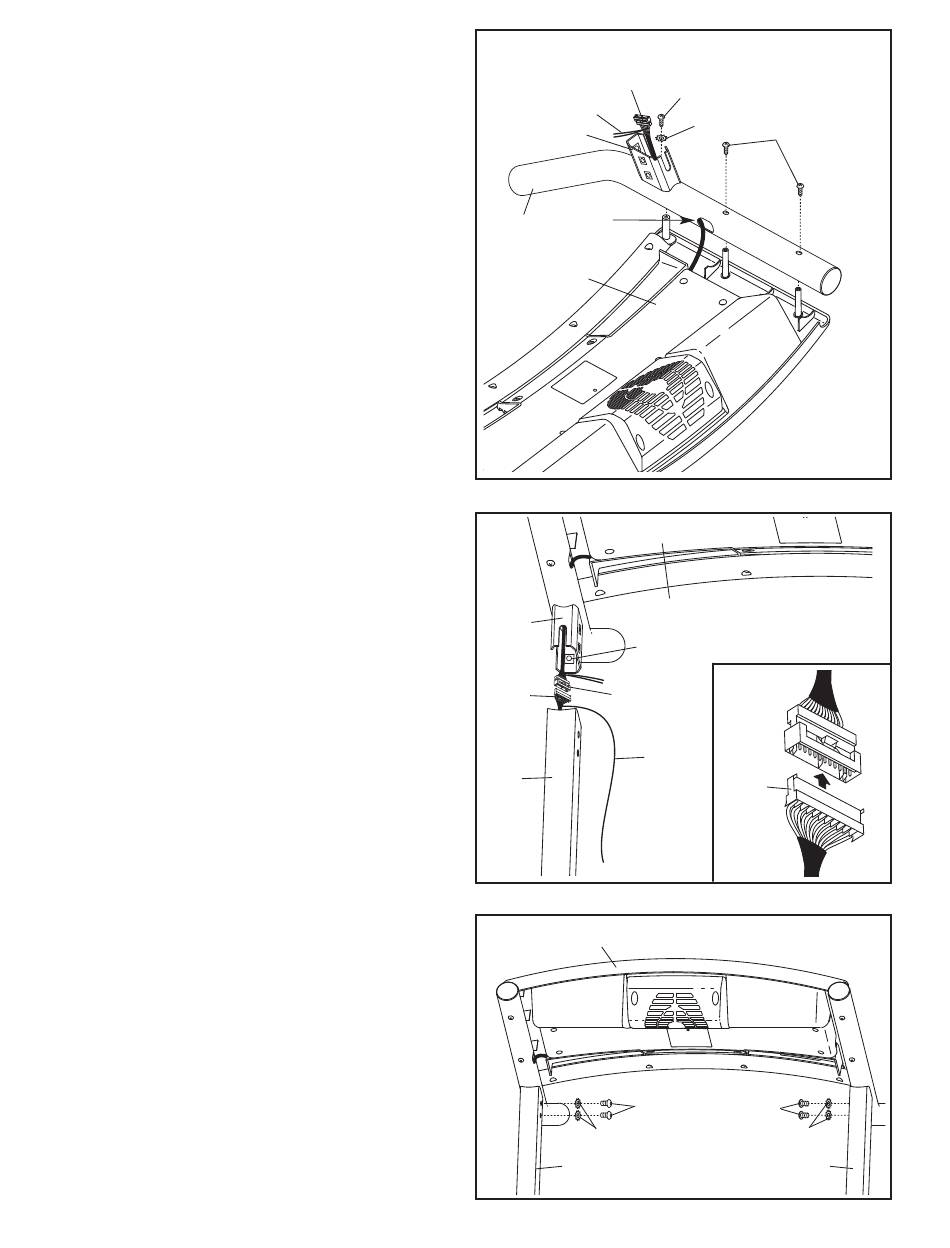

7. Set the Console (91) face down on a soft sur-
face to avoid scratching the Console. Hold the
Right Handrail (33), which has a large hole in
one side, near the Console.
Next, insert the console wire and the tie into the
hole in the side of the Right Handrail (33). Using
needlenose pliers, pull the console wire out of
the hole near the bracket on the Right Handrail.
Then, set the Right Handrail (33) on the Console
(91). Make sure that no wires are pinched.
Start an M5 x 16mm Screw (85) with a M5 Star
Washer (7) into the Right Handrail, and then
start two M4.2 x 19mm Screws (10) into the
Right Handrail. Tighten the M5 x 16mm Screw
and then tighten the two M4.2 x 19mm
Screws; do not overtighten the Screws.
Attach the Left Handrail (not shown) to the
Console (91) in the same way. Note: There are
no wires on the left side.
8. Remove the plastic ties from the Right Handrail
(33) and the Left Handrail (not shown). Press the
two Cage Nuts (105) back into place if necessary
(only one side is shown). With the help of a second
person, hold the Console (91) near the Right
Upright (54).
Connect the Wire Harness (39) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON. Next, remove the wire tie from the
Wire Harness. Insert the connectors and the ex-
cess wire downward into the Right Upright (54).
9. Attach the Console (91) to the Uprights (53, 54)
with four M8 x 15mm Bolts (8) and four M8 Star
Washers (5); do not fully tighten the Bolts yet.
Make sure that no wires are pinched.
